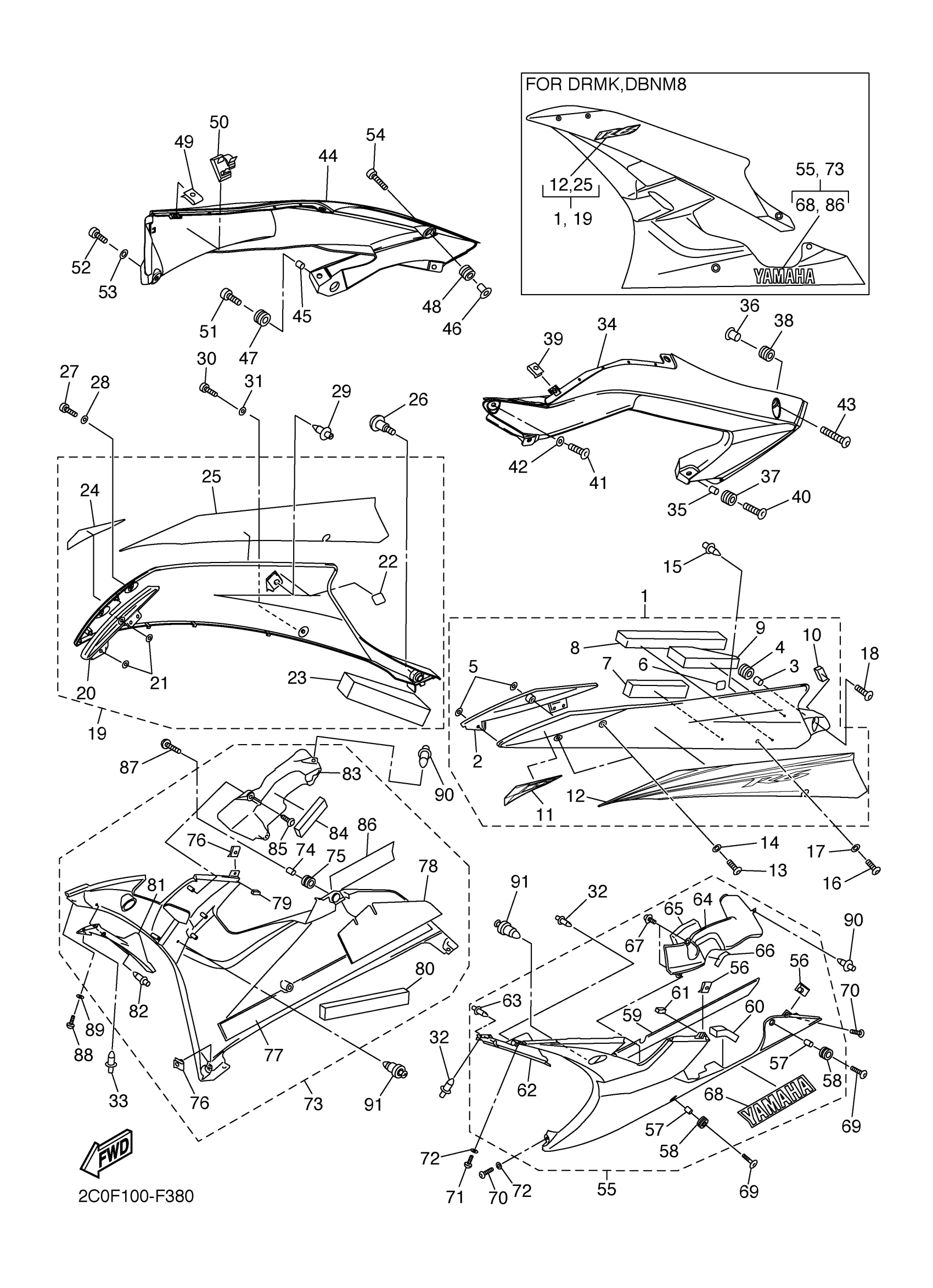

Yamaha YZFR6WC (YZFR6 CA) 2C0G 2007 COWLING 2 Diagram
#
1
PANEL ASSEMBLY 1
2C0-Y283U-60-P0
Unavailable
1
PANEL ASSEMBLY 1 (DARK BLUISH GRAY METALLIC 8) (DEEP RED METALLIC K)
2C0-Y283U-70-P2
Unavailable
2
COVER 1
2C0-28219-00-00
Unavailable
7
. DAMPER, LOCATING 1
2C0-2836T-00-00
Unavailable
8
DAMPER 5
2C0-2837J-00-00
Unavailable
9
. DAMPER 11
2C0-2847S-00-00
Unavailable
11
. GRAPHIC 19 (DEEP PURPLISH BLUE METALLIC C)
2C0-283B3-00-00
Unavailable
12
EMBLEM
2C0-28328-20-00
Unavailable
14
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
15
RIVET
90269-07007-00
Unavailable
17
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
18
BOLT
90111-06040-00
Unavailable
19
PANEL ASSEMBLY 2
2C0-Y283V-60-P0
Unavailable
19
PANEL ASSEMBLY 2
2C0-Y283V-70-P2
Unavailable
20
. COVER 2
2C0-28229-00-00
Unavailable
23
DAMPER 6
2C0-2837K-00-00
Unavailable
24
GRAPHIC 20
2C0-283B4-00-00
Unavailable
25
EMBLEM
2C0-28328-20-00
Unavailable
25
GRAPHIC 2
2C0-28392-40-00
Unavailable
26
BOLT
90109-06078-00
Unavailable
28
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
29
RIVET
90269-07007-00
Unavailable
31
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
32
RIVET
90269-06008-00
Unavailable
33
RIVET
90269-06008-00
Unavailable
34
COVER 7
2C0-2117V-00-P0
Unavailable
34
COVER 7 (DEEP RED METALLIC K)
2C0-2117V-00-P4
Unavailable
34
COVER 7
2C0-2117V-00-P5
Unavailable
36
COLLAR(36Y)
90387-067K8-00
Unavailable
38
GROMMET
90480-12613-00
Unavailable
39
NUT, SPRING
90183-050A6-00
Unavailable
40
BOLT
90111-06040-00
Unavailable
42
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
43
BOLT,HEX. SOCKET BUTTON
90111-06063-00
Unavailable
44
COVER 8
2C0-2117W-00-P0
Unavailable
44
COVER 8 (DEEP RED METALLIC K)
2C0-2117W-00-P4
Unavailable
44
COVER 8 (DARK BLUISH GRAY METALLIC 8)
2C0-2117W-00-P5
Unavailable
46
COLLAR(36Y)
90387-067K8-00
Unavailable
48
GROMMET
90480-12613-00
Unavailable
49
NUT, SPRING
90183-050A6-00
Unavailable
50
CLAMP
90464-13007-00
Unavailable
51
BOLT
90111-06040-00
Unavailable
53
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
54
BOLT,HEX. SOCKET BUTTON
90111-06063-00
Unavailable
55
COVER ASSY, UNDER (DARK BLUISH GRAY METALLIC 8) (DEEP PURPLISH BLUE METALLIC C)
2C0-Y2808-00-P4
Unavailable
55
COVER ASSY, UNDER
2C0-Y2808-20-P4
Unavailable
55
COVER ASSY, UNDER
2C0-Y2808-20-P5
Unavailable
56
NUT, SPRING
90183-050A6-00
Unavailable
59
SEAT 1
2C0-2838G-00-00
Unavailable
60
DAMPER, LOCATING 2
2C0-2836U-00-00
Unavailable
61
DAMPER 8
2C0-2847N-00-00
Unavailable
62
PANEL, INNER 2
2C0-2836L-00-00
Unavailable
63
RIVET
90269-06008-00
Unavailable
64
DUCT 4
2C0-2838U-00-00
Unavailable
65
. DAMPER
2C0-2834F-00-00
Unavailable
66
DAMPER, PLATE 2
1LJ-2414J-00-00
Unavailable
67
SCREW, TAPPING
90164-05001-00
Unavailable
68
EMBLEM, YAMAHA
99241-00240-00
Unavailable
68
EMBLEM, YAMAHA
99246-00240-00
Unavailable
69
BOLT
90111-06040-00
Unavailable
72
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
73
COVER ASSY 2, UNDER (DARK BLUISH GRAY METALLIC 8) (DEEP PURPLISH BLUE METALLIC C)
2C0-Y2809-00-P4
Unavailable
73
COVER ASSY 2, UNDER (DARK BLUISH GRAY METALLIC 8)
2C0-Y2809-20-P4
Unavailable
73
COVER ASSY 2, UNDER (DEEP RED METALLIC K)
2C0-Y2809-20-P5
Unavailable
76
NUT, SPRING
90183-050A6-00
Unavailable
77
SEAT 2
2C0-2848K-00-00
Unavailable
78
SEAT
2C0-2848H-00-00
Unavailable
79
. DAMPER 9
2C0-2847P-00-00
Unavailable
80
DAMPER 10
2C0-2847R-00-00
Unavailable
81
PANEL, INNER 3
2C0-2836M-00-00
Unavailable
82
RIVET
90269-06008-00
Unavailable
83
DUCT 5
2C0-2838J-00-00
Unavailable
84
DAMPER 1
2C0-2834E-00-00
Unavailable
85
SCREW, TAPPING
90164-05001-00
Unavailable
86
EMBLEM, YAMAHA
99241-00240-00
Unavailable
86
EMBLEM, YAMAHA
99246-00240-00
Unavailable
87
BOLT
90111-06040-00
Unavailable
89
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
90
RIVET
90269-06008-00
Unavailable
91
RIVET
90269-06081-00
Unavailable
