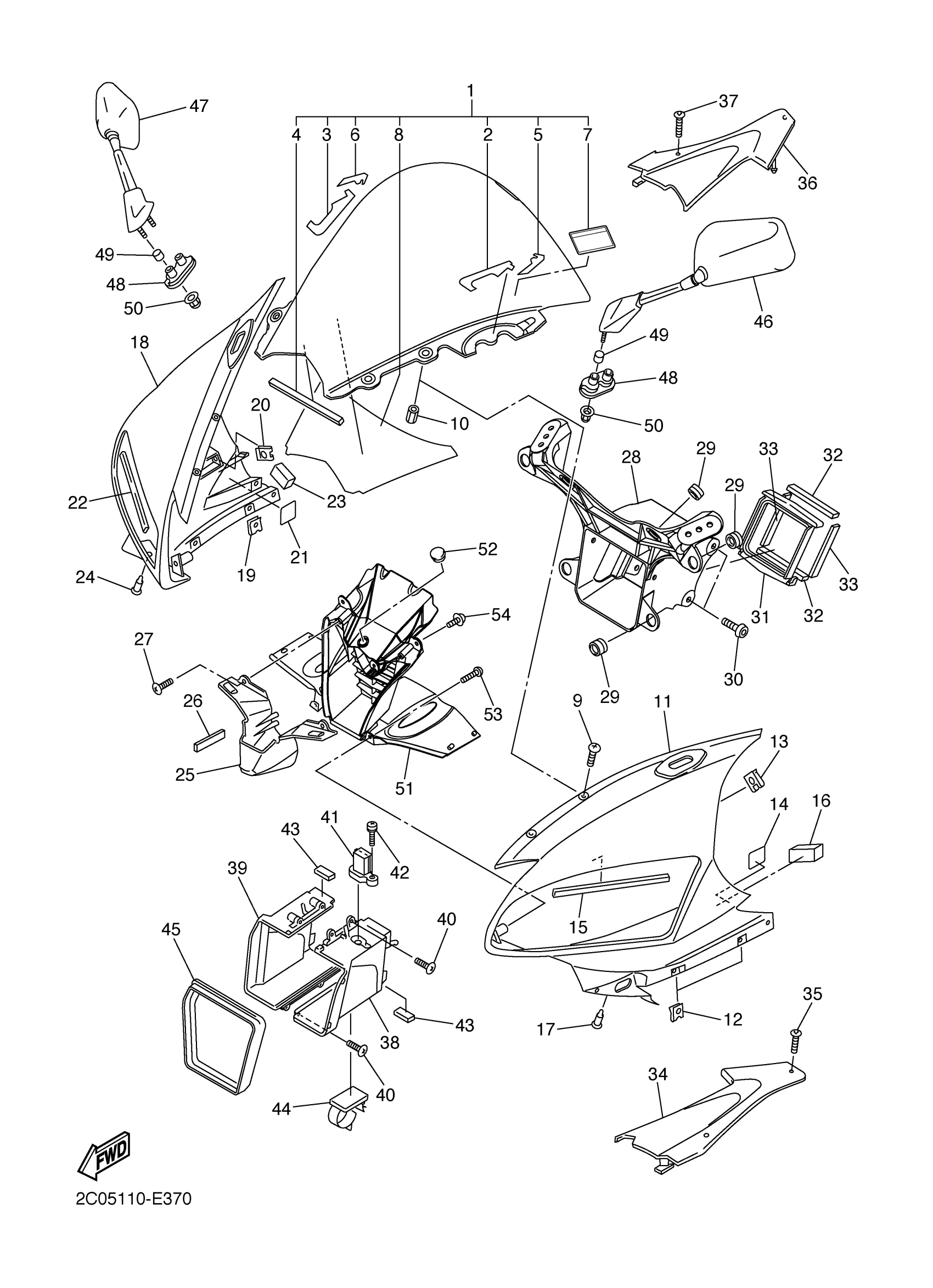

Yamaha YZFR6WC (YZFR6 CA) 2C0G 2007 COWLING 1 Diagram

#

Description
Price

1

WINDSHIELD

2C0-Y2881-21-00

Unavailable

2

. SEAL 3

2C0-28238-00-00

Unavailable

3

SEAL 4

2C0-28268-00-00

$16.49

4

DAMPER 3

2C0-28237-00-00

$7.99

5

. SEAL 1

2C0-28218-00-00

Unavailable

6

SEAL 2

2C0-28228-00-00

Unavailable

7

LABEL, CAUTION

5JW-2835Y-00-00

Unavailable

8

. GRAPHIC 18

2C0-2832P-00-00

Unavailable

9

SCREW, ROUND HEAD(1UX)

90150-05024-00

$5.60

10

NUT(1KT)

90179-05523-00

$8.49

11

BODY, FRONT UPPER 1

2C0-2835G-02-P0

$161.99

11

BODY, FRONT UPPER 1

2C0-2835G-02-P4

Unavailable

11

BODY, FRONT UPPER 1

2C0-2835G-02-P5

$150.99

12

NUT, SPRING

90183-050A6-00

$8.49

13

NUT, SPRING(1YT)

90183-05042-00

$5.60

14

SEAL

1UF-15379-00-00

Unavailable

15

DAMPER, 4

2C0-28455-00-00

Unavailable

16

DAMPER, PLATE 6

2C0-2414R-00-00

Unavailable

17

RIVET

90269-06008-00

Unavailable

18

BODY, FRONT UPPER 2

2C0-2835H-02-P0

Unavailable

18

BODY, FRONT UPPER 2

2C0-2835H-02-P4

Unavailable

18

BODY, FRONT UPPER 2

2C0-2835H-02-P5

Unavailable

19

NUT, SPRING

90183-050A6-00

$8.49

20

NUT, SPRING(1YT)

90183-05042-00

$5.60

21

SEAL

1UF-15379-00-00

Unavailable

22

DAMPER, 4

2C0-28455-00-00

Unavailable

23

DAMPER, PLATE 6

2C0-2414R-00-00

Unavailable

24

RIVET

90269-06008-00

Unavailable

25

COVER (DEEP PURPLISH BLUE METALLIC C)

2C0-28365-00-P0

Unavailable

25

COVER (DEEP RED METALLIC K)

2C0-28365-00-P4

Unavailable

25

COVER (DARK BLUISH GRAY METALLIC 8)

2C0-28365-00-P5

Unavailable

26

DAMPER

2C0-28372-00-00

Unavailable

27

SCREW, TRUSS TAP.

97707-40016-00

Unavailable

28

STAY 1

2C0-28356-00-00

Unavailable

29

DAMPER

4XV-83513-00-00

Unavailable

30

BOLT

90111-06038-00

Unavailable

31

JOINT

2C0-28342-02-00

Unavailable

32

DAMPER 1

2C0-28217-00-00

Unavailable

33

DAMPER 2

2C0-28227-00-00

Unavailable

34

PANEL, CONSOLE 1

2C0-2837L-00-00

Unavailable

35

BOLT,HEX. SOCKET BUTTON

90111-05021-00

Unavailable

36

PANEL, CONSOLE 2

2C0-2837M-00-00

Unavailable

37

BOLT,HEX. SOCKET BUTTON

90111-05021-00

Unavailable

38

DUCT 2

2C0-2838R-00-00

Unavailable

39

DUCT 3

2C0-2838T-01-00

Unavailable

40

SCREW, TRUSS TAP.

97707-40016-00

Unavailable

41

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

Unavailable

42

SCREW, PAN TAP.2

97707-50516-00

Unavailable

43

DAMPER 2

51Y-21639-00-00

Unavailable

44

CLAMP

90464-13007-00

Unavailable

45

DAMPER

2C0-28371-00-00

Unavailable

46

REAR VIEW MIRROR ASSY (LEFT)

2C0-26280-00-00

Unavailable

47

REAR VIEW MIRROR ASSY (RIGHT)

2C0-26290-00-00

Unavailable

48

PLATE, MIRROR FITTING 1

2C0-26298-00-00

Unavailable

49

COLLAR(4DN)

90387-0600V-00

Unavailable

50

NUT, CROWN(1FN)

90176-06055-00

Unavailable

51

PANEL, INNER 1

2C0-2836K-00-00

Unavailable

52

PLUG(2GU)

90338-12192-00

Unavailable

53

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

54

SCREW, ROUND TAPPING

90160-05006-00

Unavailable
