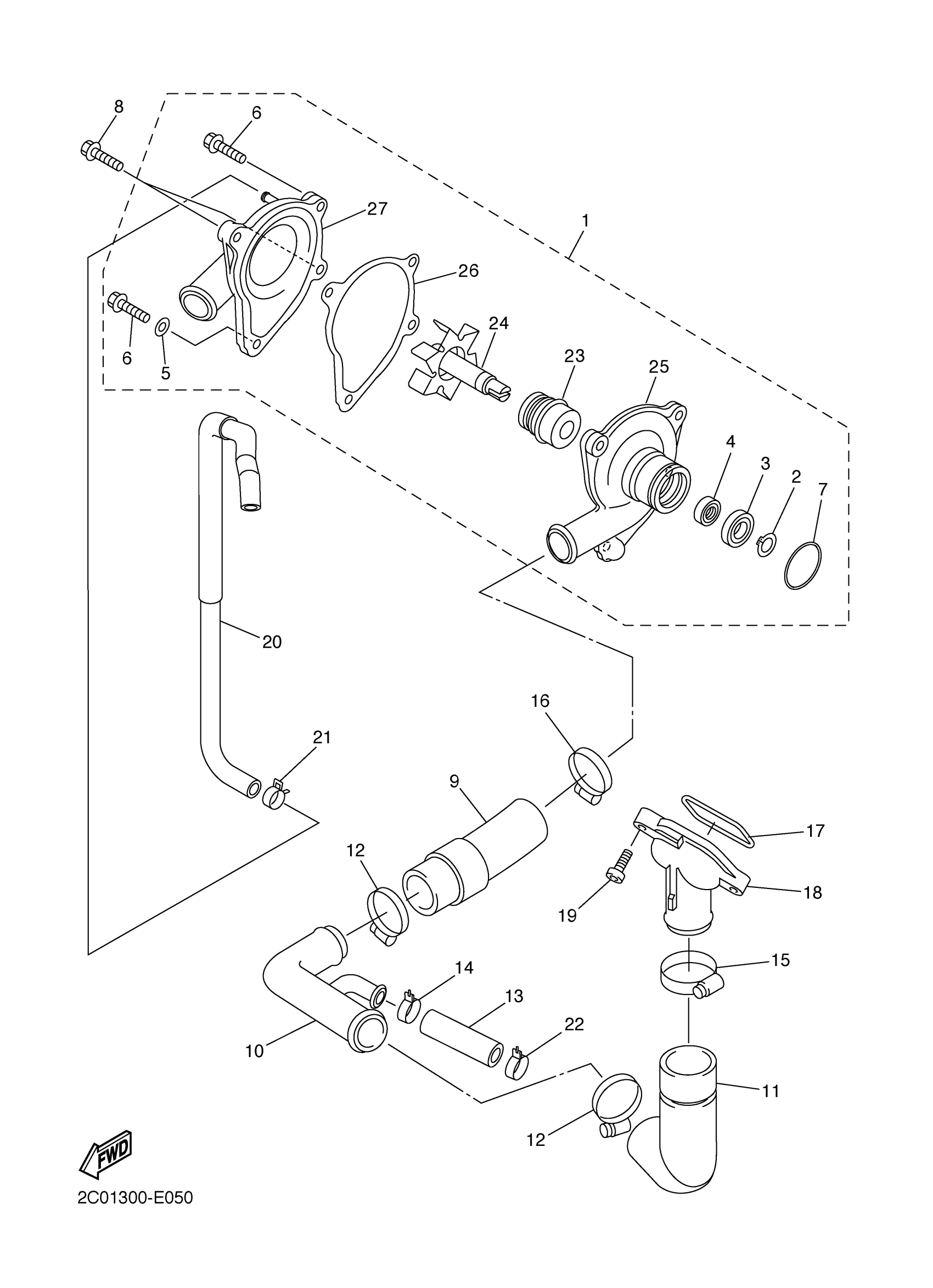

Yamaha YZFR6VC (YZFR6 CA) 2C06 2006 WATER PUMP Diagram

#

Description
Price

1

WATER PUMP ASSY

2C0-12420-00-00

$285.99

2

CIRCLIP(10W)

99009-10400-00

$4.73

3

BRG,R-B 6000 26MM 19G KY

93306-00004-00

$37.99

4

OIL SEAL (J10)

93101-10090-00

$8.49

5

GASKET 256113960000

90430-06014-00

Unavailable

6

BOLT, FLANGE(4KG)

95024-06025-00

$2.28

7

O-RING (626)

93210-33133-00

$2.92

8

BOLT, SOCKET

91314-06035-00

$8.49

9

HOSE 1

2C0-12576-00-00

$22.99

10

JOINT, HOSE 1

2C0-12581-00-00

$74.99

11

HOSE 2

2C0-12577-00-00

$25.99

12

HOSE CLAMP ASSY

90450-35001-00

$5.60

13

HOSE 5

2C0-12588-00-00

$7.99

14

CLIP

90467-200A0-00

Unavailable

15

HOSE CLAMP ASSY

90450-38003-00

$16.99

16

HOSE CLAMP ASSY

90450-32003-00

Unavailable

17

O-RING

93210-46001-00

Unavailable

18

JOINT 1

5EB-12469-00-00

Unavailable

19

BOLT, FLANGE

95022-06020-00

Unavailable

20

HOSE 1

2C0-1243A-00-00

Unavailable

21

CLIP(3BM)

90467-10135-00

Unavailable

22

CLIP

90467-200A0-00

Unavailable

23

SEAL, MECHANICAL

2C0-12438-00-00

Unavailable

24

IMPELLER SHAFT ASSY

2C0-12450-00-00

Unavailable

25

HOUSING, WATER PUMP

2C0-12421-00-00

Unavailable

26

GASKET, HOUSING COVER 2

2C0-12428-01-00

Unavailable

27

COVER, HOUSING

2C0-W1242-00-00

Unavailable
