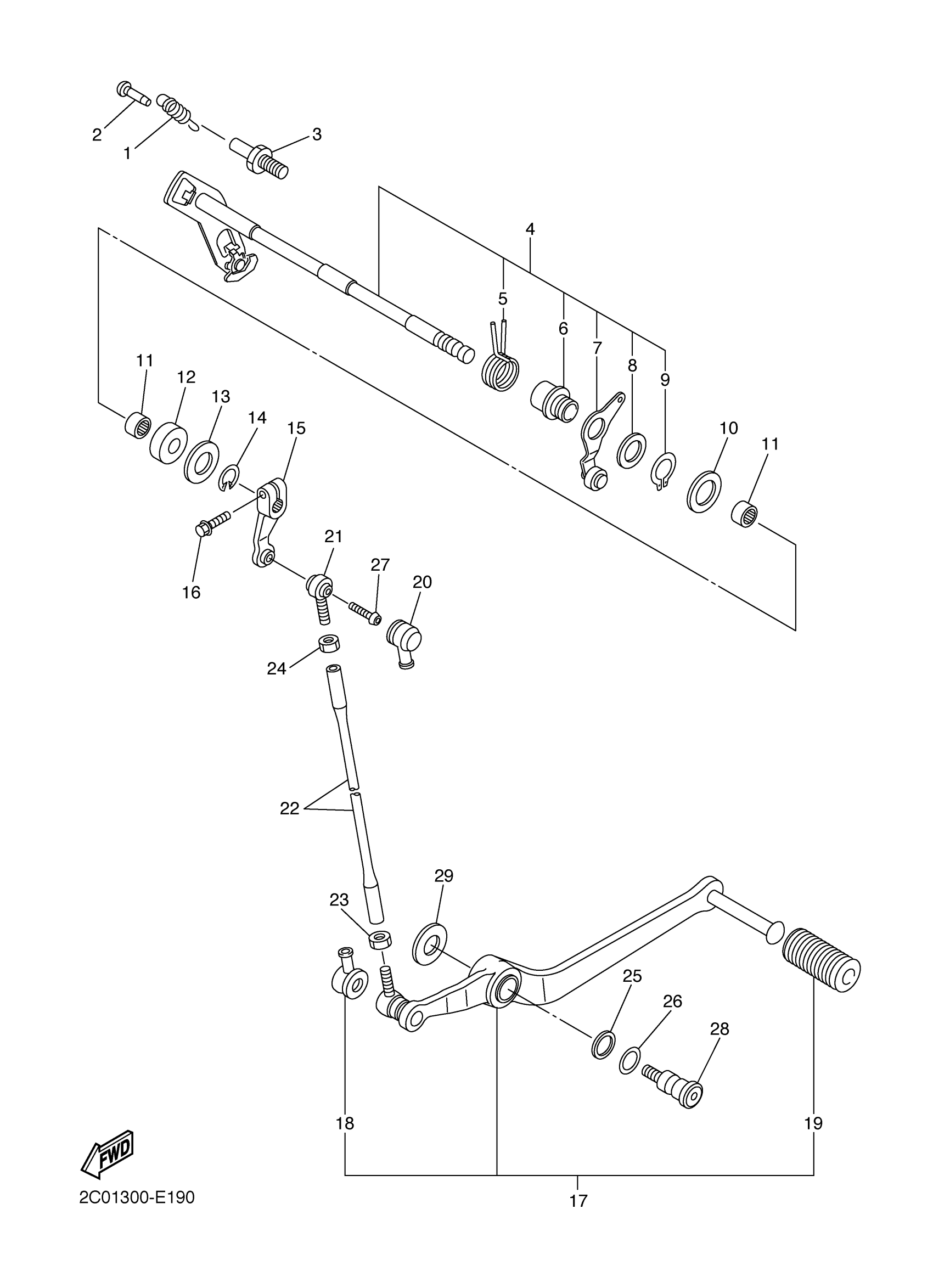

Yamaha YZFR6VC (YZFR6 CA) 2C06 2006 SHIFT SHAFT Diagram

#

Description
Price

1

HANGER, SPRING

2C0-18144-00-00

$6.33

2

HOOK, SPRING

132-16346-00-00

$8.14

3

STOPPER, SCREW

5VK-18127-00-00

Unavailable

4

SHIFT SHAFT ASSY

2C0-18101-02-00

$205.61

5

SPRING, TORSION

90508-32141-00

Unavailable

6

. SPACER

2C0-18175-00-00

$15.71

7

STOPPER LEVER ASSY

2C0-18140-00-00

$44.26

8

WASHER, PLATE (30X)

90201-177G4-00

$6.34

9

CIRCLIP(1EY)

99009-17400-00

$3.65

10

WASHER, PLATE (5N6)

90201-127E1-00

$3.45

11

BEARING

93317-11295-00

$37.39

12

OIL SEAL (12X22X5-371)

93102-12106-00

$9.45

13

WASHER, PLATE (353)

90201-12575-00

$5.75

14

CIRCLIP

99006-10600-00

$6.45

15

ARM, SHIFT

5PW-18112-10-00

$96.51

16

BOLT, FLANGE

95817-06020-00

Unavailable

17

SHIFT PEDAL ASSY

2C0-18110-01-00

Unavailable

18

COVER, DUST

2H9-18154-00-00

Unavailable

19

COVER, SHIFT PEDAL

5EB-18113-00-00

Unavailable

20

COVER, DUST

4XV-18154-00-00

Unavailable

21

JOINT, ROD 1

5LV-18116-00-00

Unavailable

22

ROD, SHIFT

2C0-18115-00-00

Unavailable

23

NUT(1KT)

90170-08358-00

Unavailable

24

NUT(650)

95380-06700-00

Unavailable

25

WASHER, PLATE

90201-12013-00

Unavailable

26

WASHER, WAVE (17W)

90206-12074-00

Unavailable

27

BOLT, BUTTON

92017-06020-00

Unavailable

28

BOLT

4BP-27434-11-00

Unavailable

29

WASHER (853)

90201-08326-00

Unavailable
