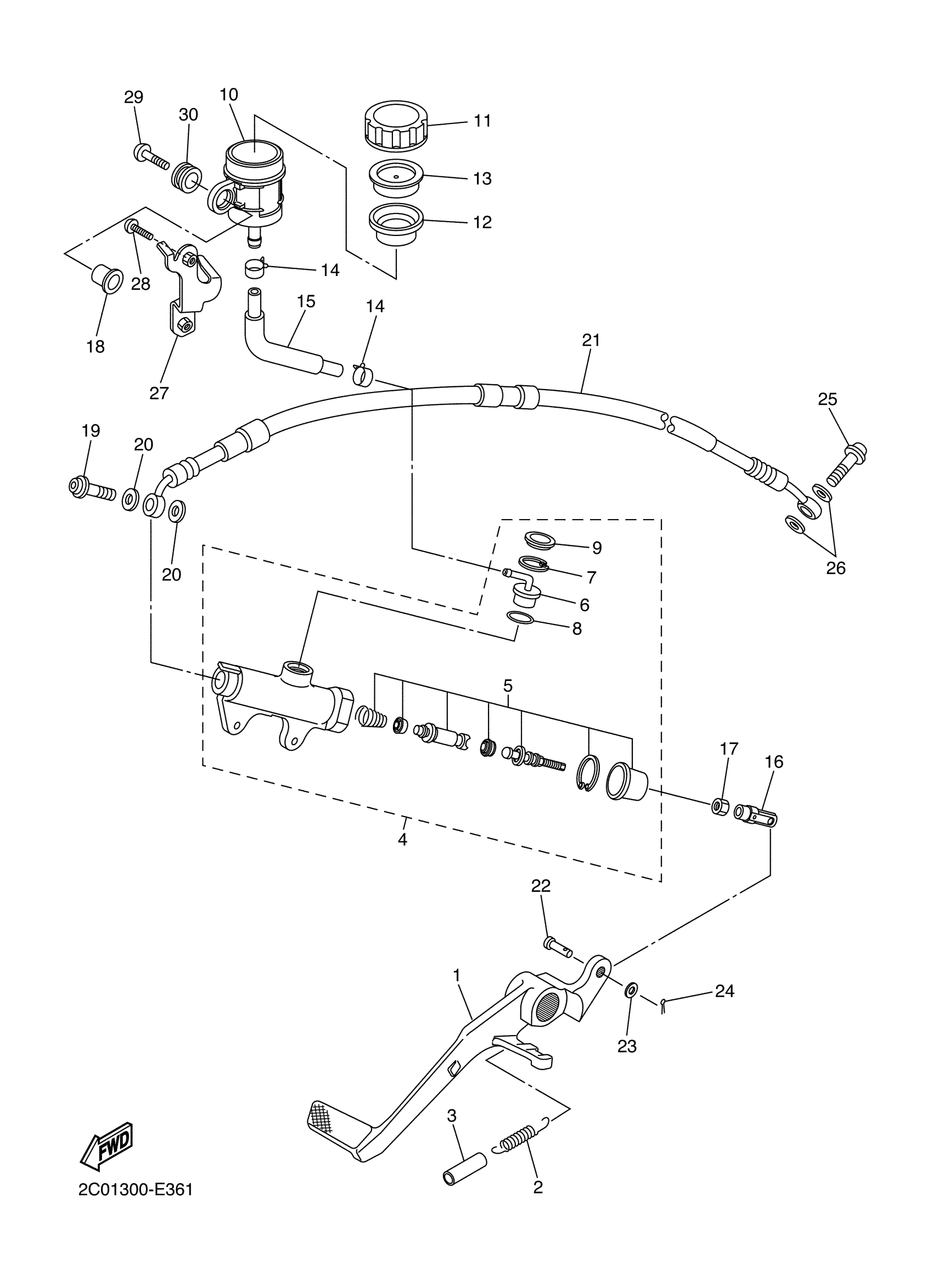

Yamaha YZFR6VC (YZFR6 CA) 2C06 2006 REAR MASTER CYLINDER Diagram

#

Description
Price

1

PEDAL, BRAKE

2C0-27211-00-00

$125.99

2

SPRING, TENSION (2X3)

90506-20193-00

$14.99

3

HOSE

90446-15386-00

$7.49

4

RR. MASTER CYLINDER ASSY.

2C0-2583V-01-00

Unavailable

5

CYLINDER KIT, MASTER

5XT-W0042-60-00

Unavailable

6

JOINT

4ML-2582A-50-00

$14.49

7

CIRCLIP

2VN-25866-00-00

$6.99

8

O-RING (22U)

93210-15566-00

$7.49

9

COVER, DUST

3FV-2589A-00-00

$20.99

10

TANK, RESERVOIR

2C0-25894-00-00

$29.99

11

CAP, RESERVOIR

4PX-25852-00-00

Unavailable

12

DIAPHRAGM, RESERVOIR

2VN-25854-00-00

$24.99

13

BUSH,DIAPHRAGM

2VN-25855-00-00

$10.99

14

CLIP(3FV)

90467-12085-00

$10.49

15

HOSE, RESERVOIR

2C0-25895-00-00

$18.49

16

JOINT

4XV-27222-01-00

Unavailable

17

NUT, HEXAGON SMALL

95317-08700-00

Unavailable

18

COLLAR

90387-05028-00

Unavailable

19

BOLT, UNION

90401-10172-00

Unavailable

20

WASHER, PLATE(481)

90201-10118-00

Unavailable

21

HOSE, BRAKE

2C0-25874-00-00

Unavailable

22

PIN, CLEVIS (5X6)

91701-06018-00

Unavailable

23

WASHER(6TA)

92907-06200-00

Unavailable

24

PIN, COTTER

91490-16020-00

Unavailable

25

BOLT, UNION

90401-10172-00

Unavailable

26

WASHER, PLATE(481)

90201-10118-00

Unavailable

27

BRACKET, RESERVE UNIT

2C0-2134F-00-00

Unavailable

28

BOLT, BUTTON HEAD

92017-06025-00

Unavailable

29

BOLT,HEX. SOCKET BUTTON

90111-05026-00

Unavailable

30

GROMMET

2C0-26326-00-00

Unavailable
