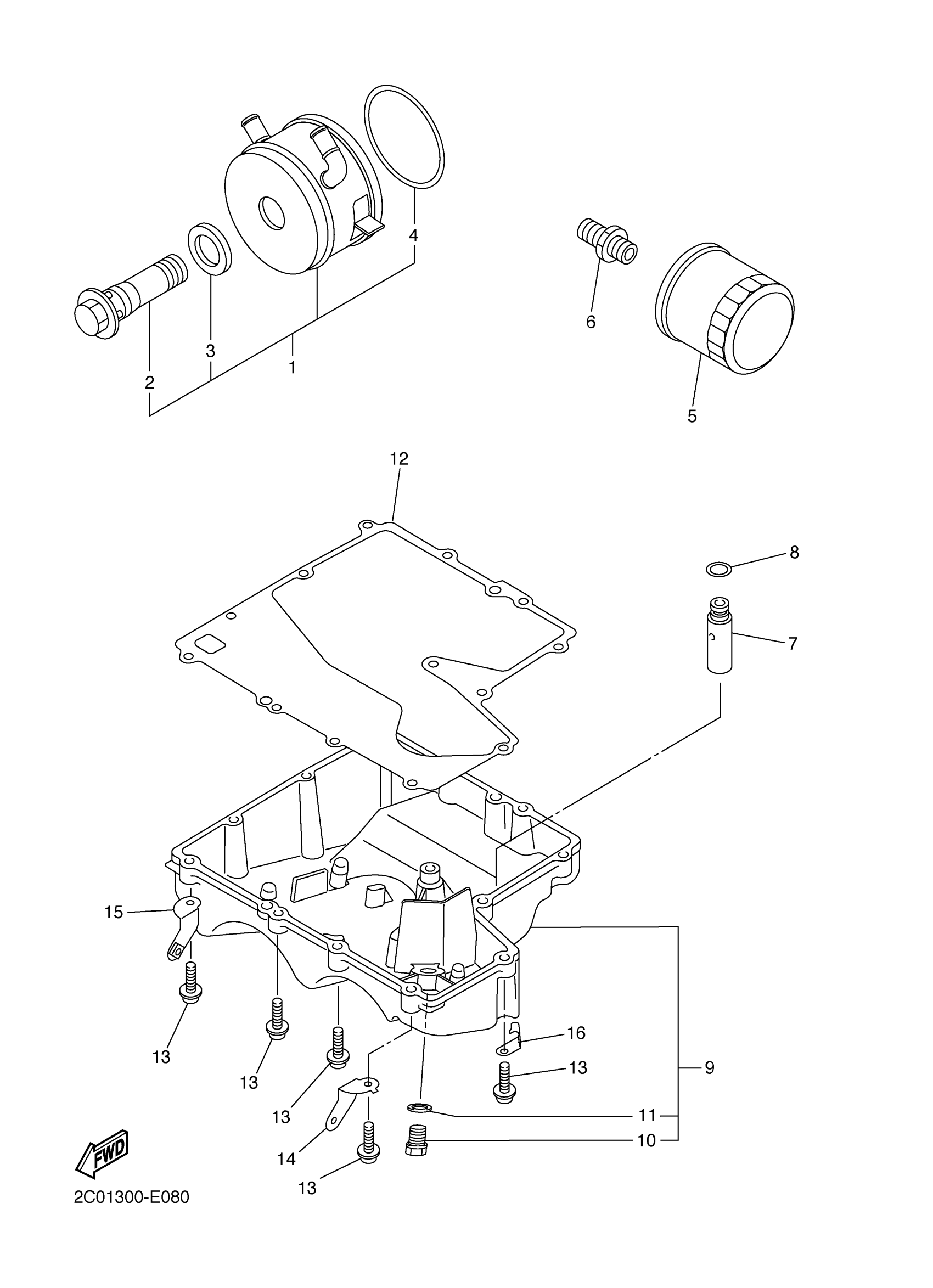

Yamaha YZFR6VC (YZFR6 CA) 2C06 2006 OIL CLEANER Diagram

#

Description
Price

1

OIL COOLER ASSY

13S-13470-00-00

Unavailable

2

BOLT, UNION

5EB-12822-00-00

$45.71

3

GASKET

5EB-13475-00-00

$14.59

4

O-RING

5JW-13473-00-00

$33.95

5

ELEMENT ASSY, OIL

5GH-13440-90-00

Unavailable

6

BOLT, UNION

90401-20007-00

$13.86

7

RELIEF VALVE ASSY

2C0-13490-00-00

$94.21

8

O-RING (22U)

93210-15566-00

$5.39

9

STRAINER COVER ASSY

2C0-13400-00-00

Unavailable

10

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$2.47

11

GASKET

214-11198-01-00

$1.93

12

GASKET, STRAINER COVER

2C0-13414-01-00

$21.38

13

BOLT

90109-06015-00

$3.73

14

BRACKET 1

2C0-2836A-00-00

$8.47

15

BRACKET 2

2C0-2836E-00-00

Unavailable

16

CLAMP

90465-10040-00

Unavailable
