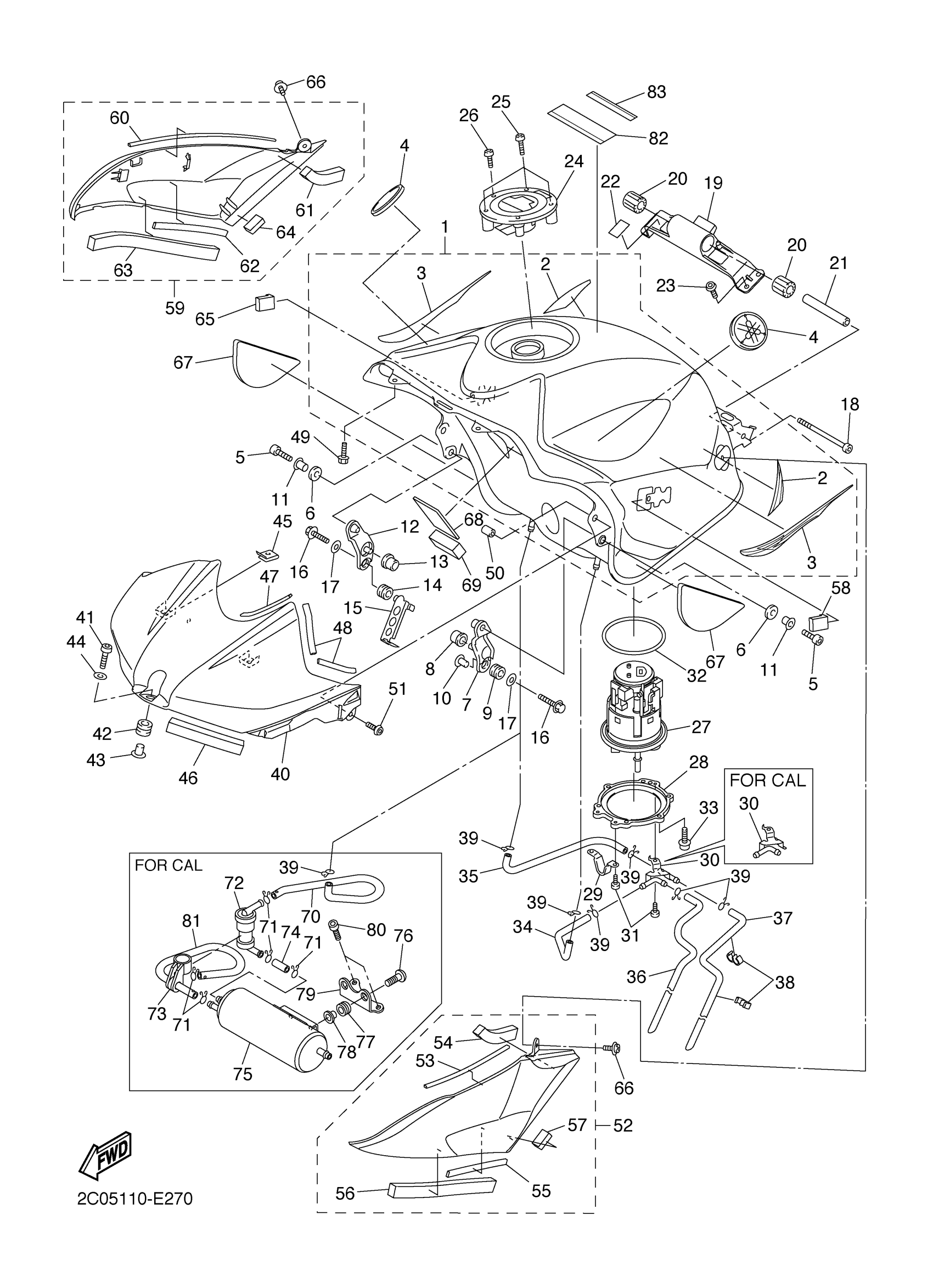

Yamaha YZFR6VC (YZFR6 CA) 2C06 2006 FUEL TANK Diagram
#
1
FUEL TANK COMP. (BLACK METALLIC X)
2C0-Y2410-00-02
Unavailable
1
FUEL TANK COMP. (DEEP PURPLISH BLUE METALLIC C)
2C0-Y2410-00-03
Unavailable
2
. GRAPHIC SET (DEEP PURPLISH BLUE METALLIC C)
2C0-24240-10-00
Unavailable
3
. GRAPHIC SET (BLACK METALLIC X)
2C0-24240-00-00
Unavailable
9
GROMMET(3XV)
90480-10542-00
Unavailable
12
BRACKET, FUEL TANK 2
5VY-24192-10-00
Unavailable
14
GROMMET(3XV)
90480-10542-00
Unavailable
15
GUIDE, WIRE
2C0-21339-00-00
Unavailable
16
BOLT, SMALL FLANGE
95027-06030-00
Unavailable
17
WASHER, PLATE
90201-06095-00
Unavailable
18
BOLT, SOCKET
91317-06090-00
Unavailable
19
BRACKET, TANK FITTING
2C0-2413Y-00-00
Unavailable
20
DAMPER, LOCATING 3
5SL-24183-00-00
Unavailable
21
COLLAR
90387-06055-00
Unavailable
22
TAPE, 1
2C0-21566-00-00
Unavailable
23
BOLT
90111-06038-00
Unavailable
24
CAP ASSY
39P-24602-00-00
Unavailable
25
BOLT, HEXAGON SOCKET HEAD(1FM)
90110-05112-00
Unavailable
26
BOLT, SOCKET
91317-05010-00
Unavailable
27
FUEL PUMP COMP.
2C0-13907-03-00
Unavailable
28
BRACKET, FUEL PUMP
2C0-24491-00-00
Unavailable
29
BRACKET, FUEL TANK 2
5PW-24192-00-00
Unavailable
30
CLAMP 1
2C0-24135-00-00
Unavailable
30
CLAMP 1
2C0-24135-10-00
Unavailable
31
SCREW, BINDING
98907-05008-00
Unavailable
32
O-RING
19B-24486-01-00
Unavailable
33
BOLT, HEXAGON SOCKET HEAD
90110-05014-00
Unavailable
34
PIPE 5
2C0-24315-00-00
Unavailable
35
PIPE 6
2C0-24316-00-00
Unavailable
36
PIPE 7
2C0-24317-00-00
Unavailable
36
PIPE 7
2C0-24317-10-00
Unavailable
37
PIPE 3
2C0-24313-00-00
Unavailable
38
CLAMP(6M7)
90464-09M31-00
Unavailable
39
CLIP
90467-090A2-00
Unavailable
39
CLIP
90467-090A2-00
Unavailable
40
COVER, TOP (DEEP PURPLISH BLUE METALLIC C)
2C0-2171A-00-P0
Unavailable
40
COVER, TOP (MAT BLACK 2)
2C0-2171A-00-P2
Unavailable
41
BOLT,SOCKET HEAD
91314-06025-00
Unavailable
42
GROMMET(3AA)
90480-12497-00
Unavailable
43
COLLAR
90387-06159-00
Unavailable
44
WASHER, PLATE
90201-06M30-00
Unavailable
45
NUT, SPRING(3YX)
90183-05074-00
Unavailable
46
DAMPER, PLATE 2
2C0-2414J-00-00
Unavailable
47
DAMPER, PLATE 3
2C0-2414K-00-00
Unavailable
48
DAMPER, PLATE
90520-03016-00
Unavailable
49
BOLT, WASHER BASED
90105-05002-00
Unavailable
50
NUT(1KT)
90179-05523-00
Unavailable
51
SCREW, BINDING
98907-05014-00
Unavailable
52
TANK SIDE COVER ASSY 1
2C0-24106-00-00
Unavailable
53
DAMPER, PLATE 1
2C0-2414H-00-00
Unavailable
54
DAMPER, PLATE 5
2C0-2414P-00-00
Unavailable
55
DAMPER, PLATE 2
5PW-2414J-00-00
Unavailable
56
DAMPER, LOCATING 4
2C0-24184-00-00
Unavailable
57
DAMPER, PLATE 6
2C0-2414R-00-00
Unavailable
58
DAMPER, SIDE COVER
5PW-2411J-01-00
Unavailable
59
TANK SIDE COVER ASSY 2
2C0-24108-00-00
Unavailable
60
DAMPER, PLATE 1
2C0-2414H-00-00
Unavailable
61
DAMPER, PLATE 5
2C0-2414P-00-00
Unavailable
62
DAMPER, PLATE 2
5PW-2414J-00-00
Unavailable
63
DAMPER, LOCATING 4
2C0-24184-00-00
Unavailable
64
DAMPER, PLATE 6
2C0-2414R-00-00
Unavailable
65
DAMPER, SIDE COVER
5PW-2411J-01-00
Unavailable
66
SCREW, WITH WASHER
90159-05015-00
Unavailable
67
DAMPER, SIDE COVER
2C0-24145-00-00
Unavailable
68
DAMPER, PLATE 1
5EJ-2414H-00-00
Unavailable
69
SEAL 1
5JX-21732-00-00
Unavailable
70
PIPE 4
2C0-24314-00-00
Unavailable
71
CLIP
90467-090A2-00
Unavailable
72
ROLL OVER VALVE ASSY
2C0-24180-00-00
Unavailable
73
BAND 1
2C0-24398-00-00
Unavailable
74
HOSE (L120)
90445-113E8-00
Unavailable
75
CANISTER ASSY
5EL-24170-00-00
Unavailable
76
BOLT, HEXAGON SOCKET HEAD(3HE)
90110-06200-00
Unavailable
77
GROMMET (462)
90480-13018-00
Unavailable
78
COLLAR(42G)
90387-062L2-00
Unavailable
79
BRACKET, CANISTOR
2C0-2419F-00-00
Unavailable
80
BOLT,SOCKET
91317-06020-00
Unavailable
81
PIPE
2C0-1443J-01-00
Unavailable
82
LABEL, CAUTION
5GK-2118K-00-00
Unavailable
83
LABEL, CAUTION
5PW-2415E-12-00
Unavailable
