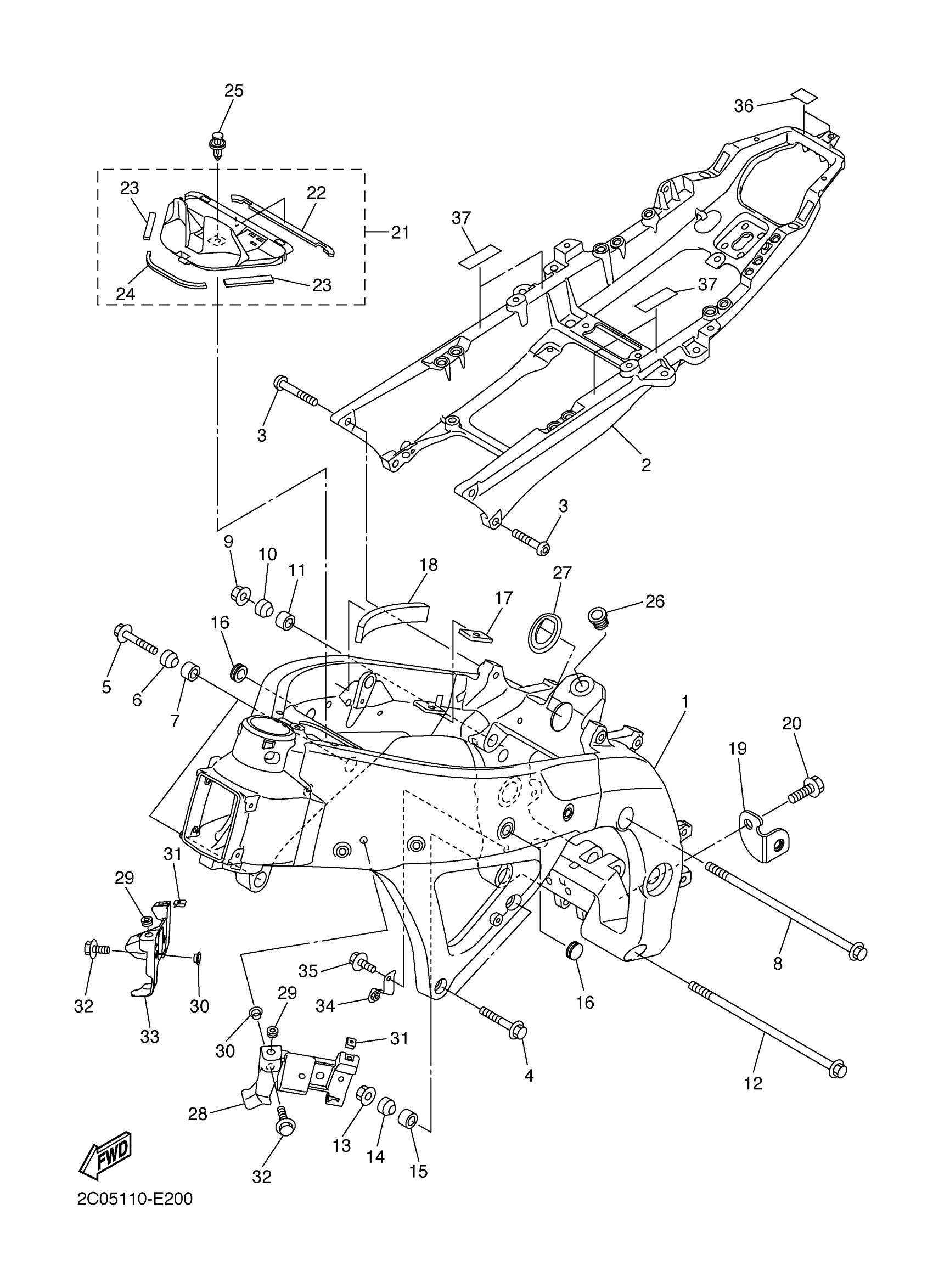

Yamaha YZFR6VC (YZFR6 CA) 2C06 2006 FRAME Diagram
#
Description
Price
1
FRAME COMP.
2C0-21110-01-00
Unavailable
2
REAR FRAME COMP.
2C0-21190-00-00
Unavailable
16
PLUG
90338-15004-00
Unavailable
17
DAMPER, LOCATING 2
2C0-24182-00-00
Unavailable
18
DAMPER 2
2C0-21486-00-00
Unavailable
19
BRACKET, MUFFLER 1
2C0-21435-00-00
Unavailable
20
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
21
COVER ASSY 1
2C0-2110M-00-00
Unavailable
22
DAMPER
2C0-2174X-00-00
Unavailable
23
. DAMPER
2C0-2174Y-00-00
Unavailable
24
DAMPER
2C0-21746-00-00
Unavailable
25
RIVET
90269-07010-00
Unavailable
26
BOLT 1
2C0-22241-00-00
Unavailable
27
PLUG, BLIND
2C0-21279-00-00
Unavailable
28
BRACET 7
2C0-2833A-00-00
Unavailable
29
GROMMET
90480-10003-00
Unavailable
30
COLLAR
90387-06048-00
Unavailable
31
NUT, SPRING
90183-050A6-00
Unavailable
32
BOLT, FLANGE
95817-06020-00
Unavailable
33
BRACET 8
2C0-2833E-00-00
Unavailable
34
BRACKET 4
2C0-2836G-00-00
Unavailable
35
BOLT, FLANGE
95817-06014-00
Unavailable
36
TAPE, 1
2C0-21566-00-00
Unavailable
37
TAPE, 2
2C0-21567-00-00
Unavailable
