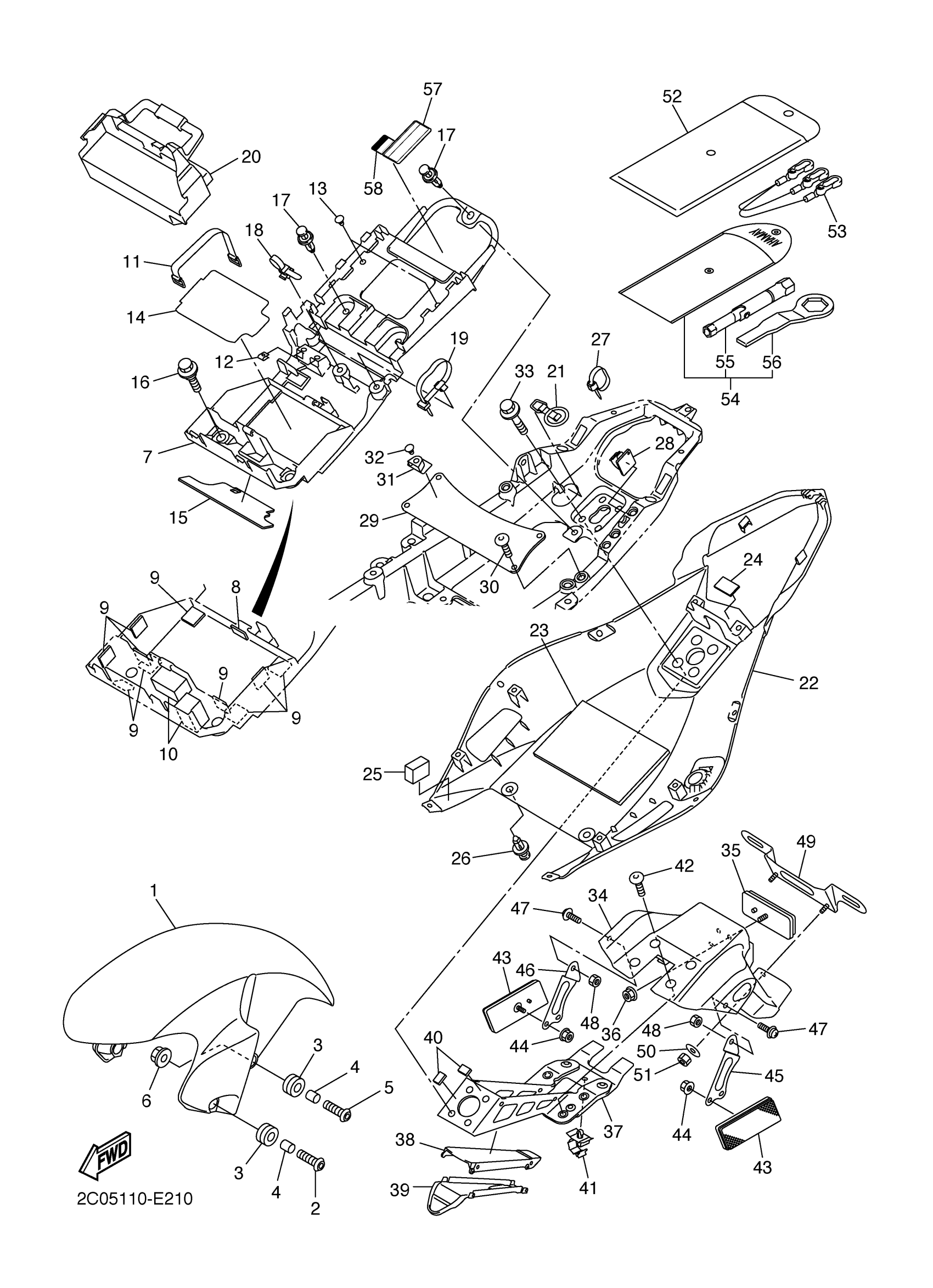

Yamaha YZFR6VC (YZFR6 CA) 2C06 2006 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

2C0-21511-01-P0

$134.99

1

FENDER, FRONT

2C0-21511-01-P2

$192.99

2

BOLT

90111-06043-00

$4.46

3

GROMMET

90480-14003-00

$8.49

4

COLLAR

90387-06057-00

$8.49

5

BOLT

90111-06030-00

$4.41

6

NUT, FLANGE(4MV)

95707-06500-00

$1.23

7

BOX, BATTERY 1

2C0-8212B-00-00

Unavailable

8

DAMPER 2

51Y-21639-00-00

$6.99

9

DAMPER

2C0-21649-00-00

Unavailable

10

DAMPER 1

2C0-21541-00-00

Unavailable

11

BAND, BATTERY

133-82131-00-00

$27.99

12

NUT, SPRING(47R)

90183-04039-00

$7.49

13

PLUG(1NL)

90338-07180-00

$7.49

14

SEAT BATTERY ASSY 1

2C0-821A1-00-00

Unavailable

15

SEAT BATTERY ASSY 2

2C0-821A2-00-00

Unavailable

16

BOLT

90109-06171-00

Unavailable

17

RIVET

90269-07010-00

Unavailable

18

CLAMP(2TV)

90464-10112-00

Unavailable

19

CLAMP

90464-44002-00

Unavailable

20

BATTERY COVER ASSY

2C0-82160-00-00

Unavailable

21

BAND, TOOL

2C0-21376-00-00

Unavailable

22

FENDER, REAR

2C0-21611-01-P0

Unavailable

22

FENDER, REAR

2C0-21611-01-P2

Unavailable

23

DAMPER 2

2C0-21639-00-00

Unavailable

24

PLATE 1

5GM-27445-00-00

Unavailable

25

PLATE 1

2C0-2162G-00-00

Unavailable

26

RIVET

90269-07010-00

Unavailable

27

CLAMP(4FM)

90464-15195-00

Unavailable

28

CLAMP

90464-13004-00

Unavailable

29

BRACKET

2C0-21131-00-00

Unavailable

30

BOLT, BUTTON HEAD

92017-06016-00

Unavailable

31

. STAY, SIDE COVER 1

5SL-2172E-00-00

Unavailable

32

PLUG(1NL)

90338-07180-00

$7.49

33

BOLT, WITH WASHER

90119-06138-00

Unavailable

34

GUARD, MUD

2C0-21629-11-00

Unavailable

35

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

36

NUT, S/L FLANGE

95607-05200-00

Unavailable

37

REAR STAY COMP.

2C0-21640-00-00

Unavailable

38

COVER, REAR FENDER 1

2C0-2163A-00-00

Unavailable

39

COVER, REAR FENDER 2

2C0-2163E-00-00

Unavailable

40

SEAL

2C0-21669-00-00

Unavailable

41

CLAMP(4NX)

90464-14228-00

Unavailable

42

BOLT

90109-06182-00

Unavailable

43

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

44

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

45

BRACKET, REAR STAY

2C0-21688-00-00

Unavailable

46

BRACKET, REAR STAY 2

2C0-21689-00-00

Unavailable

47

SCREW, WITH WASHER

90159-06011-00

Unavailable

48

NUT, SELF-LOCKING

95617-06100-00

Unavailable

49

BRACKET, LICENSE

5MT-84751-00-00

Unavailable

50

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

51

NUT, SELF-LOCKING

95617-06100-00

Unavailable

52

TOOL KIT

2C0-28100-00-00

Unavailable

53

HELMET HANGER ASSY

2C0-21370-00-00

Unavailable

54

TOOL KIT 2

2C0-28110-01-00

Unavailable

55

BOX, SPARK PLUG

4XV-2814F-00-00

Unavailable

56

SPANNER, SPECIAL

4FM-28135-00-00

Unavailable

57

LABEL, CAUTION

3JJ-28446-A2-00

Unavailable

58

LABEL, CAUTION

3TB-24877-A1-00

Unavailable
