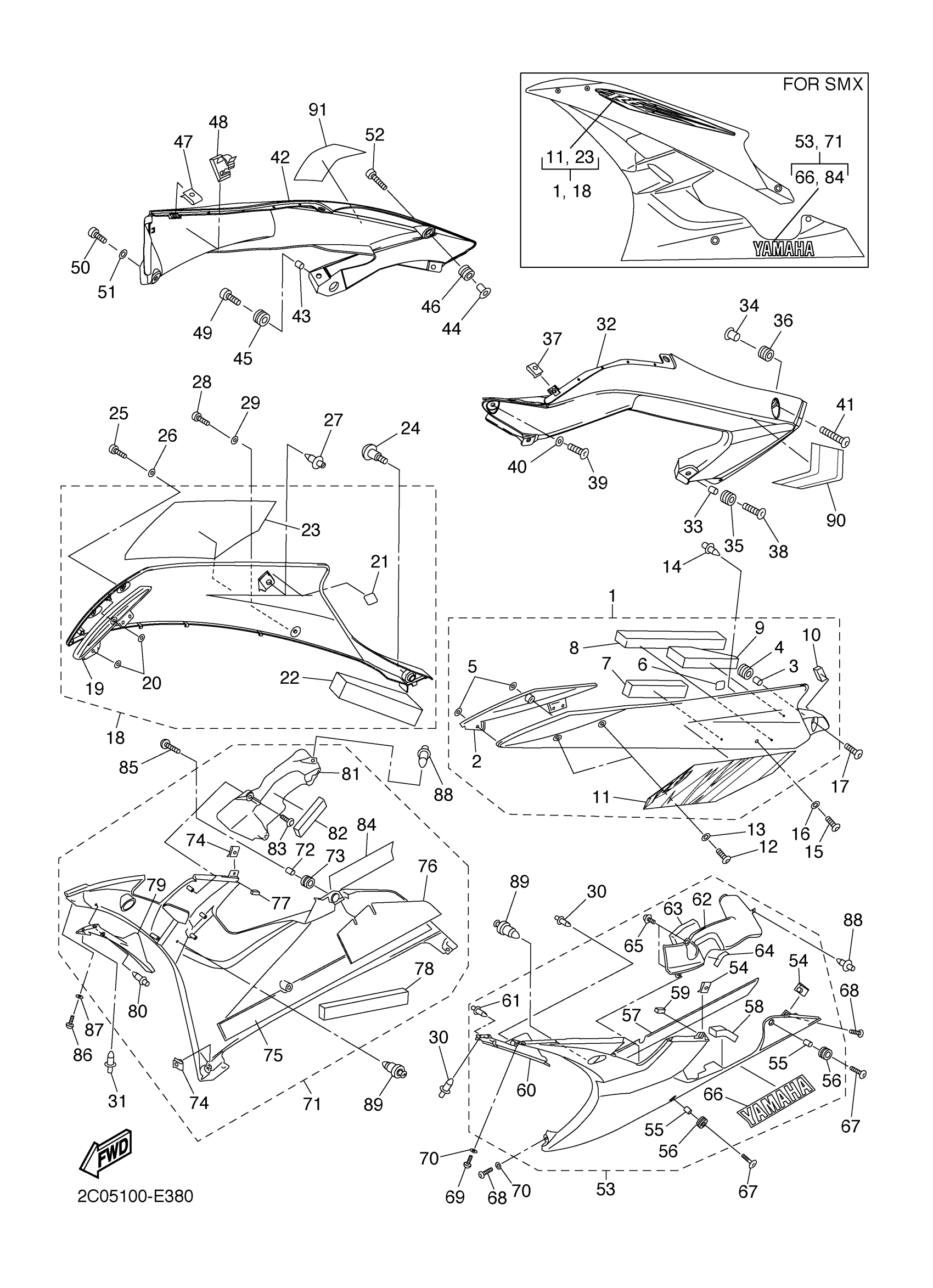

Yamaha YZFR6VC (YZFR6 CA) 2C06 2006 COWLING 2 Diagram
#
1
PANEL ASSEMBLY 1
2C0-Y283U-20-P2
Unavailable
1
PANEL ASSEMBLY 1 (DEEP PURPLISH BLUE METALLIC C)
2C0-Y283U-40-P0
Unavailable
2
COVER 1
2C0-28219-00-00
Unavailable
7
. DAMPER, LOCATING 1
2C0-2836T-00-00
Unavailable
8
DAMPER 5
2C0-2837J-00-00
Unavailable
9
. DAMPER 11
2C0-2847S-00-00
Unavailable
11
. GRAPHIC 1 (DEEP PURPLISH BLUE METALLIC C)
2C0-28391-20-00
Unavailable
11
. GRAPHIC 1 (BLACK METALLIC X)
2C0-28391-30-00
Unavailable
14
RIVET
90269-07007-00
Unavailable
17
BOLT
90111-06040-00
Unavailable
18
PANEL ASSEMBLY 2
2C0-Y283V-20-P2
Unavailable
18
PANEL ASSEMBLY 2 (DEEP PURPLISH BLUE METALLIC C)
2C0-Y283V-40-P0
Unavailable
19
. COVER 2
2C0-28229-00-00
Unavailable
22
DAMPER 6
2C0-2837K-00-00
Unavailable
23
. GRAPHIC 2 (DEEP PURPLISH BLUE METALLIC C)
2C0-28392-20-00
Unavailable
23
GRAPHIC 2
2C0-28392-30-00
Unavailable
24
BOLT
90109-06078-00
Unavailable
27
RIVET
90269-07007-00
Unavailable
30
RIVET
90269-06008-00
Unavailable
31
RIVET
90269-06008-00
Unavailable
32
COVER 7
2C0-2117V-00-P0
Unavailable
32
COVER 7
2C0-2117V-00-P2
Unavailable
34
COLLAR(36Y)
90387-067K8-00
Unavailable
36
GROMMET
90480-12613-00
Unavailable
37
NUT, SPRING
90183-050A6-00
Unavailable
38
BOLT
90111-06040-00
Unavailable
41
BOLT,HEX. SOCKET BUTTON
90111-06063-00
Unavailable
42
COVER 8
2C0-2117W-00-P0
Unavailable
42
COVER 8
2C0-2117W-00-P2
Unavailable
44
COLLAR(36Y)
90387-067K8-00
Unavailable
46
GROMMET
90480-12613-00
Unavailable
47
NUT, SPRING
90183-050A6-00
Unavailable
48
CLAMP
90464-13007-00
Unavailable
49
BOLT
90111-06040-00
Unavailable
52
BOLT,HEX. SOCKET BUTTON
90111-06063-00
Unavailable
53
COVER ASSY, UNDER
2C0-Y2808-00-P3
Unavailable
53
COVER ASSY, UNDER
2C0-Y2808-10-P2
Unavailable
54
NUT, SPRING
90183-050A6-00
Unavailable
57
SEAT 1
2C0-2838G-00-00
Unavailable
58
DAMPER, LOCATING 2
2C0-2836U-00-00
Unavailable
59
DAMPER 8
2C0-2847N-00-00
Unavailable
60
PANEL, INNER 2
2C0-2836L-00-00
Unavailable
61
RIVET
90269-06008-00
Unavailable
62
DUCT 4
2C0-2838U-00-00
Unavailable
63
. DAMPER
2C0-2834F-00-00
Unavailable
64
DAMPER, PLATE 2
1LJ-2414J-00-00
Unavailable
65
SCREW, TAPPING
90164-05001-00
Unavailable
66
EMBLEM, YAMAHA
99241-00240-00
Unavailable
66
EMBLEM, YAMAHA
99247-00240-00
Unavailable
67
BOLT
90111-06040-00
Unavailable
71
COVER ASSY 2, UNDER
2C0-Y2809-00-P3
Unavailable
71
COVER ASSY 2, UNDER
2C0-Y2809-10-P2
Unavailable
74
NUT, SPRING
90183-050A6-00
Unavailable
75
SEAT 2
2C0-2848K-00-00
Unavailable
76
SEAT
2C0-2848H-00-00
Unavailable
77
. DAMPER 9
2C0-2847P-00-00
Unavailable
78
DAMPER 10
2C0-2847R-00-00
Unavailable
79
PANEL, INNER 3
2C0-2836M-00-00
Unavailable
80
RIVET
90269-06008-00
Unavailable
81
DUCT 5
2C0-2838J-00-00
Unavailable
82
DAMPER 1
2C0-2834E-00-00
Unavailable
83
SCREW, TAPPING
90164-05001-00
Unavailable
84
EMBLEM, YAMAHA
99241-00240-00
Unavailable
84
EMBLEM, YAMAHA
99247-00240-00
Unavailable
85
BOLT
90111-06040-00
Unavailable
88
RIVET
90269-06008-00
Unavailable
89
RIVET
90269-06081-00
Unavailable
90
GRAPHIC
2C0-21788-00-00
Unavailable
91
GRAPHIC
2C0-21789-00-00
Unavailable
