- YZFR6TC (YZFR6 CA) 5SLS 2005
RADIATOR HOSE

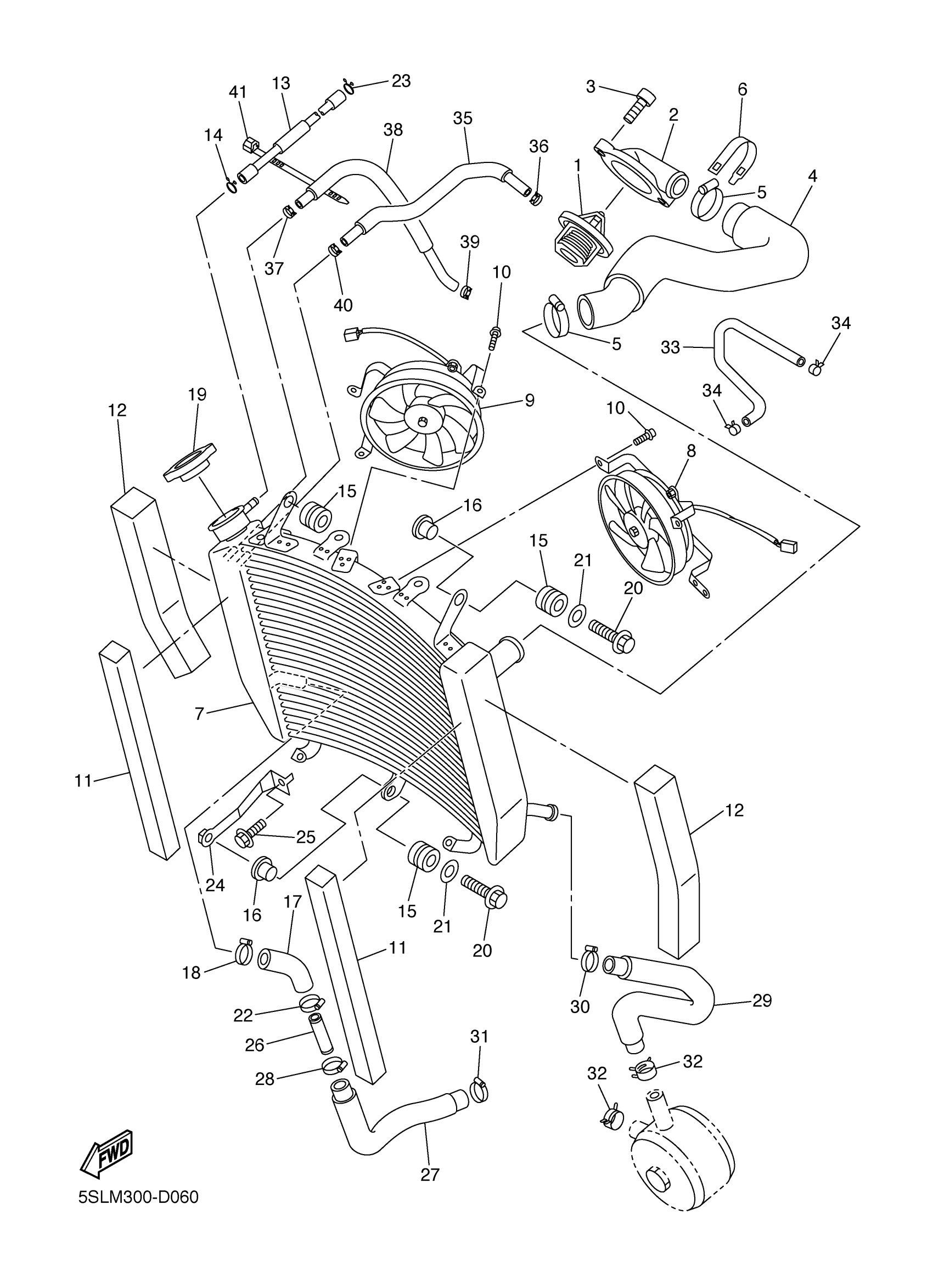

Yamaha YZFR6TC (YZFR6 CA) 5SLS 2005 RADIATOR HOSE Diagram
#
3
BOLT,SOCKET
91317-06020-00
Unavailable
4
HOSE 3
5SL-12578-00-00
Unavailable
7
RADIATOR ASSY
5SL-12461-10-00
Unavailable
8
BLOWER ASSY
5SL-12405-10-00
Unavailable
9
BLOWER ASSY
5SL-12405-20-00
Unavailable
11
DAMPER, AIR SHROUD 2
5SL-12659-00-00
Unavailable
12
DAMPER, AIR SHROUD 3
5EB-12668-00-00
Unavailable
13
HOSE
90445-08016-00
Unavailable
16
COLLAR 437216330000
90387-07391-00
Unavailable
17
HOSE 4
5SL-12579-10-00
Unavailable
19
CAP, RADIATOR
5SL-12462-01-00
Unavailable
20
BOLT, FLANGE
90105-06040-00
Unavailable
21
WASHER, PLATE(36Y)
90201-063J2-00
Unavailable
24
BRACKET 1
5SL-1244E-10-00
Unavailable
25
BOLT, FLANGE
95817-06012-00
Unavailable
26
JOINT, HOSE 2
5SL-12582-10-00
Unavailable
27
HOSE 7
5SL-12551-10-00
Unavailable
29
HOSE 6
5SL-12589-01-00
Unavailable
30
HOSE CLAMP ASSY(64X)
90450-22M14-00
Unavailable
31
HOSE CLAMP ASSY
90450-32003-00
Unavailable
32
CLIP
90467-200A0-00
Unavailable
33
HOSE 1
5SL-1243A-00-00
Unavailable
34
CLIP(3BM)
90467-10135-00
Unavailable
35
HOSE 2
5SL-1243E-00-00
Unavailable
36
CLIP(3BM)
90467-10135-00
Unavailable
37
CLIP(3BM)
90467-10135-00
Unavailable
38
HOSE, 4
5SL-1244G-00-00
Unavailable
39
CLIP(3BM)
90467-10135-00
Unavailable
40
CLIP(3BM)
90467-10135-00
Unavailable
41
CLAMP
90464-28002-00
Unavailable
