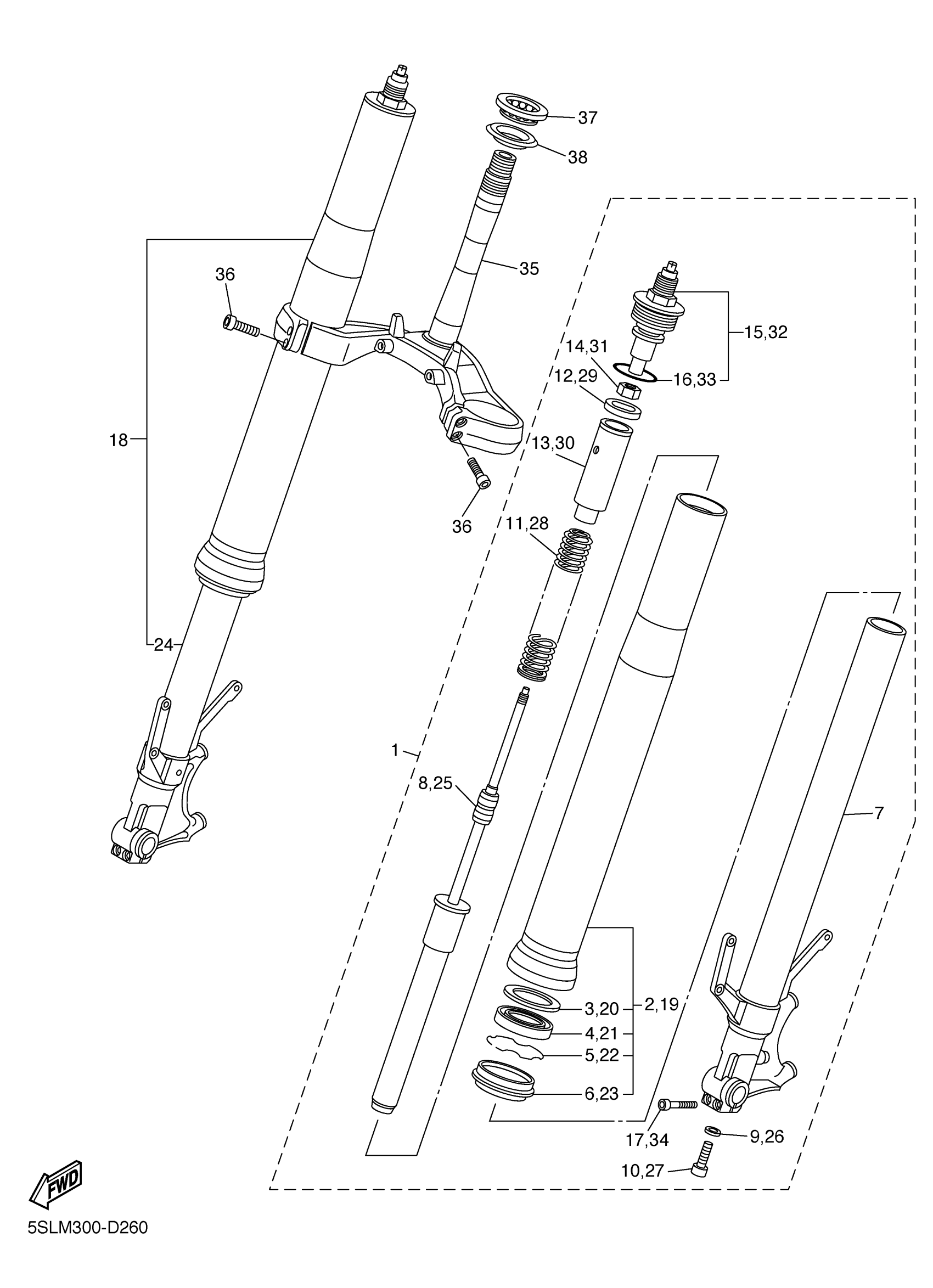

Yamaha YZFR6TC (YZFR6 CA) 5SLS 2005 FRONT FORK Diagram
#
1
FRONT FORK ASSY (L.H)
5SL-23102-30-00
Unavailable
1
FRONT FORK ASSY (L.H)
5SL-23102-40-00
Unavailable
2
. TUBE, OUTER (RIGHT)
5SL-23136-31-00
Unavailable
7
.. INNER TUBE COMP 1
5SL-23110-20-00
Unavailable
8
. CYLINDER COMP, FRONT FORK
5SL-23170-20-00
Unavailable
10
BOLT, HEXAGON SOCKET HEAD
5UX-23181-00-00
Unavailable
11
. SPRING, FRONT FORK
5SL-23141-20-00
Unavailable
13
SPACER
5VY-23118-00-00
Unavailable
14
NUT
3LC-23357-00-00
Unavailable
15
.. BOLT, CAP
5SL-23111-21-00
Unavailable
15
BOLT, CAP
5SL-23111-41-00
Unavailable
16
O-RING
3XJ-23147-L0-00
Unavailable
17
BOLT,SOCKET
91314-08040-00
Unavailable
18
FRONT FORK ASSY (R.H)
5SL-23103-30-00
Unavailable
18
FRONT FORK ASSY (R.H)
5SL-23103-40-00
Unavailable
19
. TUBE, OUTER (RIGHT)
5SL-23136-31-00
Unavailable
24
INNER TUBE COMP.2
5SL-23120-20-00
Unavailable
25
. CYLINDER COMP, FRONT FORK
5SL-23170-20-00
Unavailable
27
BOLT, HEXAGON SOCKET HEAD
5UX-23181-00-00
Unavailable
28
. SPRING, FRONT FORK
5SL-23141-20-00
Unavailable
30
SPACER
5VY-23118-00-00
Unavailable
31
NUT
3LC-23357-00-00
Unavailable
32
.. BOLT, CAP
5SL-23111-21-00
Unavailable
32
BOLT, CAP
5SL-23111-41-00
Unavailable
33
O-RING
3XJ-23147-L0-00
Unavailable
34
BOLT,SOCKET
91314-08040-00
Unavailable
35
UNDER BRACKET COMP.
5SL-23340-20-00
Unavailable
36
BOLT,SOCKET
91314-08030-00
Unavailable
37
BEARING(3FV)
93399-99932-00
Unavailable
38
SEAL, STEERING
3FV-23462-00-00
Unavailable
39
FORK SEAL KIT (TWO FORKS)
4EB-W003B-00-00
Unavailable
