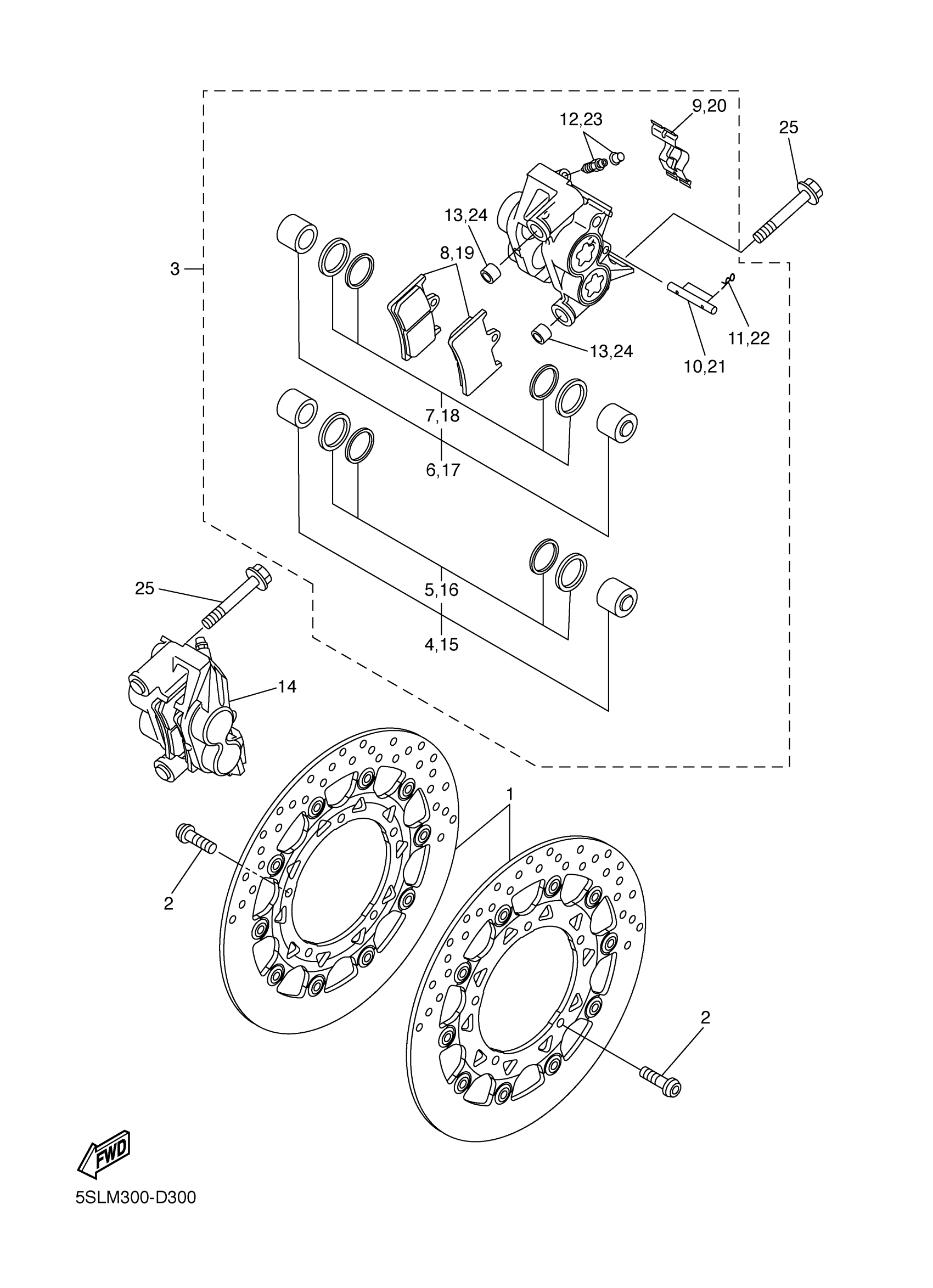

Yamaha YZFR6TC (YZFR6 CA) 5SLS 2005 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISK BRAKE ASSY

5SL-2581T-10-00

$311.47

2

BOLT

90109-06254-00

$2.57

3

CALIPER ASSY (LEFT)

5SL-2580T-10-00

Unavailable

3

CALIPER ASSY (LEFT)

5SL-2580T-20-00

Unavailable

4

PISTON ASSY, CALIP

5PW-25802-10-00

$90.70

5

CALIPER SEAL KIT

5PW-25803-10-00

$14.23

6

PISTON ASSY, CALIP

5PW-25802-00-00

$80.55

7

CALIPER SEAL KIT

5PW-25803-00-00

$13.97

8

BRAKE PAD KIT

5SL-W0045-10-00

$73.21

9

SUPPORT, PAD

4SV-25919-00-00

$20.59

10

PIN, PAD

4SV-25924-00-00

$34.81

11

CLIP, PAD PIN

3GM-25925-00-00

$9.15

12

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

13

PIN, KNOCK

5VY-2583B-00-00

Unavailable

14

CALIPER ASSY (RIGHT)

5SL-2580U-10-00

Unavailable

14

CALIPER ASSY (RIGHT)

5SL-2580U-20-00

Unavailable

15

PISTON ASSY, CALIP

5PW-25802-10-00

$90.70

16

CALIPER SEAL KIT

5PW-25803-10-00

$14.23

17

PISTON ASSY, CALIP

5PW-25802-00-00

$80.55

18

CALIPER SEAL KIT

5PW-25803-00-00

$13.97

19

BRAKE PAD KIT

5SL-W0045-10-00

$73.21

20

SUPPORT, PAD

4SV-25919-00-00

$20.59

21

PIN, PAD

4SV-25924-00-00

$34.81

22

CLIP, PAD PIN

3GM-25925-00-00

$9.15

23

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

24

PIN, KNOCK

5VY-2583B-00-00

Unavailable

25

BOLT, UNION

90401-10012-00

Unavailable
