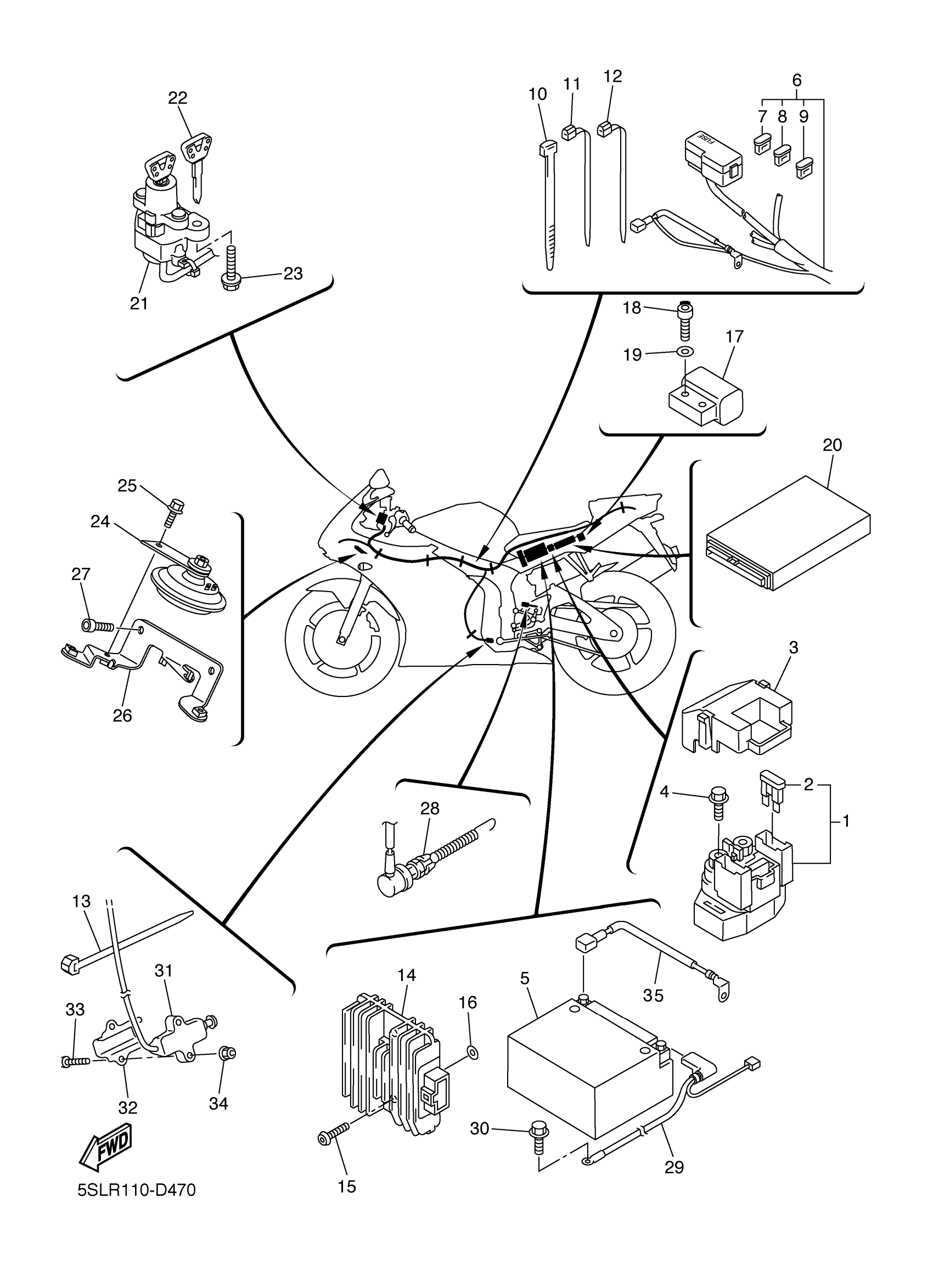

Yamaha YZFR6TC (YZFR6 CA) 5SLS 2005 ELECTRICAL 2 Diagram

#

Description
Price

1

STARTER RELAY ASSY (RC19-040)

5SL-81940-12-00

Unavailable

2

FUSE (40A-BL)

5EA-82151-00-00

$4.32

3

COVER, LEAD WIRE

5SL-82119-10-00

$4.68

4

BOLT, SMALL FLANGE

95027-06008-00

$7.99

5

GT9B4 GS BATTERY - FA

GT9-B4000-00-00

Unavailable

6

WIRE HARNESS ASSY

5SL-82590-50-00

Unavailable

7

FUSE (15A)

67F-82151-50-00

Unavailable

8

FUSE

5JJ-82151-20-00

$7.99

9

. FUSE (10A)

67F-82151-40-00

Unavailable

10

CLAMP(4FM)

90464-15195-00

$4.41

11

BAND

3MA-82591-00-00

$9.99

12

CLAMP

90464-13077-00

$8.49

13

CLAMP(4FM)

90464-15195-00

$4.41

14

RECTIFIER & REGULATOR ASSY

5SL-81960-00-00

$233.99

15

BOLT, BUTTON HEAD

92017-06025-00

$9.49

16

WASHER, PLATE

90202-06001-00

Unavailable

17

SENSOR, LEAN ANGLE

5PS-82576-02-00

Unavailable

18

BOLT,SOCKET

91317-04025-00

Unavailable

19

WASHER, PLATE

90201-042E0-00

Unavailable

20

ENGINE CONTROL UNIT ASSY

5SL-8591A-C0-00

Unavailable

21

MAIN SWITCH STEERING LOCK

5SL-82501-11-00

Unavailable

22

BLANK KEY

4BH-82511-09-00

Unavailable

23

BOLT

90109-08196-00

Unavailable

24

HORN

4TH-83371-00-00

Unavailable

25

BOLT, FLANGE

95817-06010-00

Unavailable

26

BRACKET, HORN

5SL-23377-10-00

Unavailable

27

BOLT,SOCKET

91317-06012-00

Unavailable

28

STOP SWITCH ASSY

5SL-82530-00-00

Unavailable

29

WIRE, MINUS LEAD

5SL-82116-01-00

Unavailable

30

BOLT

91380-06012-00

Unavailable

31

SWITCH, SIDE STAND

5PX-82566-72-00

Unavailable

32

PLATE

5JJ-82388-00-00

Unavailable

33

BOLT, BUTTON HEAD

92017-05030-00

Unavailable

34

NUT, S/L FLANGE

95607-05200-00

Unavailable

35

WIRE, PLUS LEAD

5SL-82115-00-00

Unavailable
