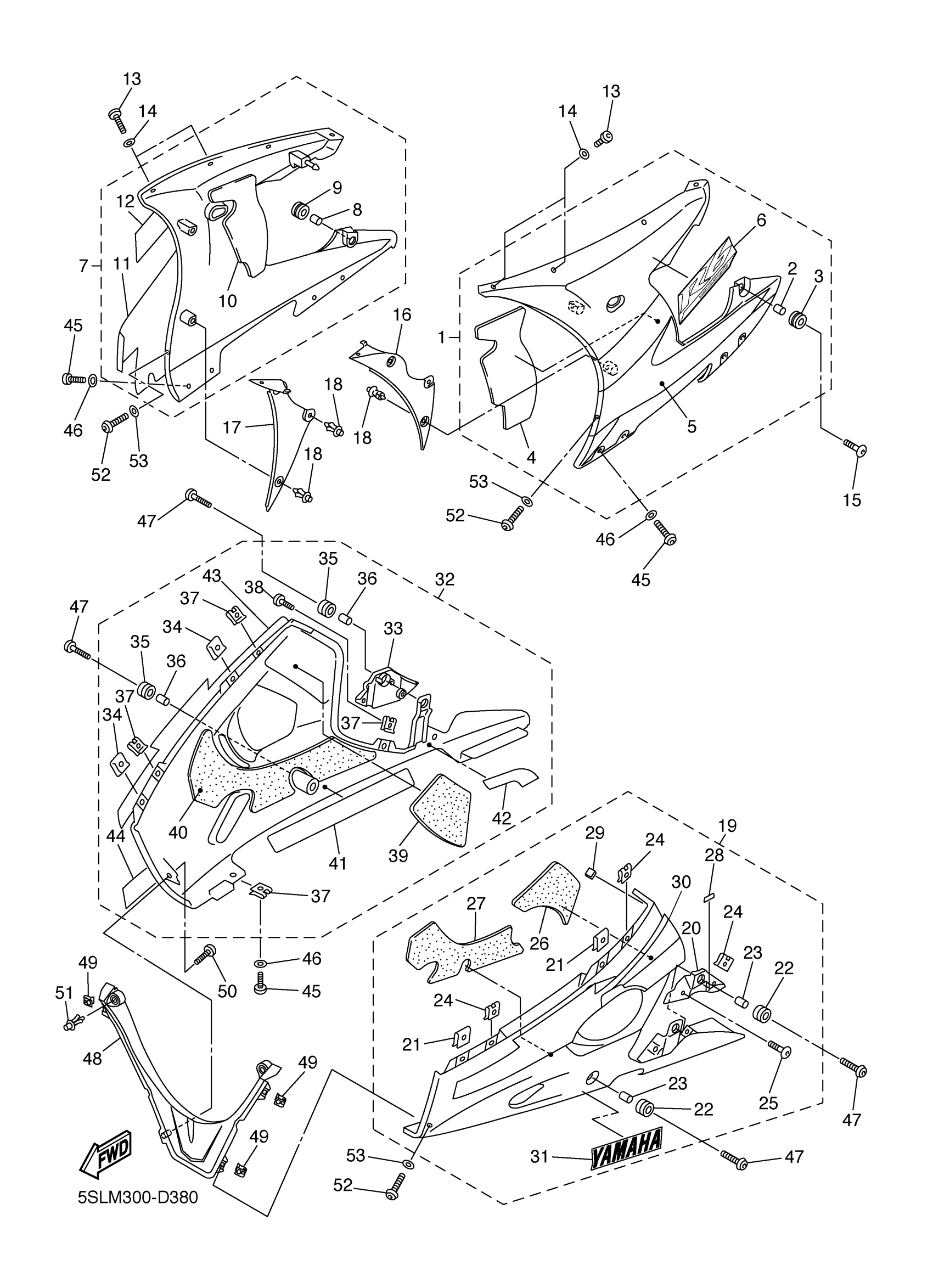

Yamaha YZFR6TC (YZFR6 CA) 5SLS 2005 COWLING 2 Diagram
#
1
PANEL ASSEMBLY 1 (VIVID RED COCKTAIL 1)
5SL-Y283U-F0-P2
Unavailable
1
PANEL ASSEMBLY 1 (DEEP PURPLISH BLUE METALLIC C)
5SL-Y283U-G0-P1
Unavailable
1
PANEL ASSEMBLY 1
5SL-Y283U-H0-P0
Unavailable
4
. DAMPER, LOCATING 1
5SL-2836T-00-00
Unavailable
5
GRAPHIC 1
5SL-28391-30-00
Unavailable
5
. GRAPHIC 1 (DEEP PURPLISH BLUE METALLIC C)
5SL-28391-40-00
Unavailable
6
. EMBLEM 1 (VIVID RED COCKTAIL 1)
5SL-2834C-B0-00
Unavailable
6
. EMBLEM 1 (DEEP PURPLISH BLUE METALLIC C)
5SL-2834C-C0-00
Unavailable
6
. EMBLEM 1 (BLACK METALLIC X)
5SL-2834C-D0-00
Unavailable
7
PANEL ASSEMBLY 2
5SL-Y283V-F0-P2
Unavailable
7
PANEL ASSEMBLY 2 (DEEP PURPLISH BLUE METALLIC C)
5SL-Y283V-G0-P1
Unavailable
10
DAMPER, LOCATING 2
5SL-2836U-00-00
Unavailable
11
GRAPHIC 2
5SL-28392-30-00
Unavailable
11
GRAPHIC 2
5SL-28392-40-00
Unavailable
12
. EMBLEM 1 (VIVID RED COCKTAIL 1)
5SL-2834C-B0-00
Unavailable
12
. EMBLEM 1 (DEEP PURPLISH BLUE METALLIC C)
5SL-2834C-C0-00
Unavailable
12
. EMBLEM 1 (BLACK METALLIC X)
5SL-2834C-D0-00
Unavailable
13
BOLT
90111-05003-00
Unavailable
14
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
15
BOLT
90111-06040-00
Unavailable
16
PANEL, INNER 1
5SL-2836K-00-00
Unavailable
17
PANEL, INNER 2
5SL-2836L-00-00
Unavailable
18
RIVET
90269-06008-00
Unavailable
19
COVER ASSY, UNDER (VIVID RED COCKTAIL 1) (BLACK METALLIC X)
5SL-Y2808-60-P0
Unavailable
19
COVER ASSY, UNDER (DEEP PURPLISH BLUE METALLIC C)
5SL-Y2808-70-P1
Unavailable
19
COVER ASSY, UNDER (BLACK METALLIC X)
5SL-Y2808-80-P0
Unavailable
20
COVER 3
5SL-2843J-00-00
Unavailable
21
NUT, SPRING
90183-051A0-00
Unavailable
24
NUT, SPRING(3GM)
90183-05061-00
Unavailable
25
BOLT
90111-05002-00
Unavailable
26
DAMPER 1
5SL-2834E-00-00
Unavailable
27
. DAMPER 5
5SL-2837J-00-00
Unavailable
28
PLATE, FOOTREST
1HX-27415-00-00
Unavailable
29
DAMPER
5SL-21649-00-00
Unavailable
30
. GRAPHIC, UNDER COVER 1 (VIVID RED COCKTAIL 1) (DEEP PURPLISH BLUE METALLIC C)
5SL-283A1-00-00
Unavailable
31
EMBLEM, YAMAHA
99241-00280-00
Unavailable
31
EMBLEM, YAMAHA
99247-00280-00
Unavailable
32
COVER ASSY 2, UNDER (VIVID RED COCKTAIL 1) (BLACK METALLIC X)
5SL-Y2809-60-P0
Unavailable
32
COVER ASSY 2, UNDER (DEEP PURPLISH BLUE METALLIC C)
5SL-Y2809-70-P1
Unavailable
32
COVER ASSY 2, UNDER (BLACK METALLIC X)
5SL-Y2809-80-P0
Unavailable
33
COVER 4
5SL-2844J-00-00
Unavailable
34
NUT, SPRING
90183-051A0-00
Unavailable
37
NUT, SPRING(3GM)
90183-05061-00
Unavailable
38
BOLT
90111-05002-00
Unavailable
39
DAMPER
5SL-2834F-00-00
Unavailable
40
. DAMPER 6
5SL-2837K-00-00
Unavailable
41
. SEAT 1
5SL-2838G-00-00
Unavailable
42
SEAT 2
5SL-2848K-00-00
Unavailable
43
GRAPHIC, UNDER COVER 2
5SL-283A2-00-00
Unavailable
44
EMBLEM, YAMAHA
99241-00280-00
Unavailable
44
EMBLEM, YAMAHA
99247-00280-00
Unavailable
45
BOLT
90111-05003-00
Unavailable
46
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
47
BOLT
90111-06040-00
Unavailable
48
PANEL, INNER 3
5SL-2836M-10-00
Unavailable
49
NUT, SPRING(3GM)
90183-05061-00
Unavailable
50
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
51
RIVET
90269-07007-00
Unavailable
52
BOLT
90111-05003-00
Unavailable
53
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
