Description

Price

1

COVER, SIDE 1

5SL-Y2171-L0-P4

Unavailable

2

DAMPER

5PW-2174X-00-00

$6.99

3

. STAY, SIDE COVER 1

5SL-2172E-00-00

Unavailable

4

PLUG(1NL)

90338-07180-00

$7.49

5

EMBLEM, YAMAHA

99245-00080-00

$11.49

8

BOLT,HEX. SOCKET BUTTON

90111-05059-00

$2.12

9

NUT, SPRING

90183-050A6-00

$8.49

10

RIVET(4JH)

90269-07076-00

$7.49

11

RIVET

90269-07010-00

$4.35

12

TANK, RECOVERY

5SL-21871-00-00

Unavailable

13

CAP

1B7-21875-00-00

$20.99

14

ELBOW

26H-21828-00-00

$27.99

15

HOSE (L340)

90445-08684-00

$4.29

16

CLIP 101235600

90467-08003-00

$10.49

17

COVER

5SL-2172W-00-00

Unavailable

18

BOLT

90111-05002-00

Unavailable

19

NUT, SPRING

90183-050A0-00

Unavailable

20

DAMPER

5SL-21746-00-00

Unavailable

21

BOLT, WITH WASHER

90119-06059-00

Unavailable

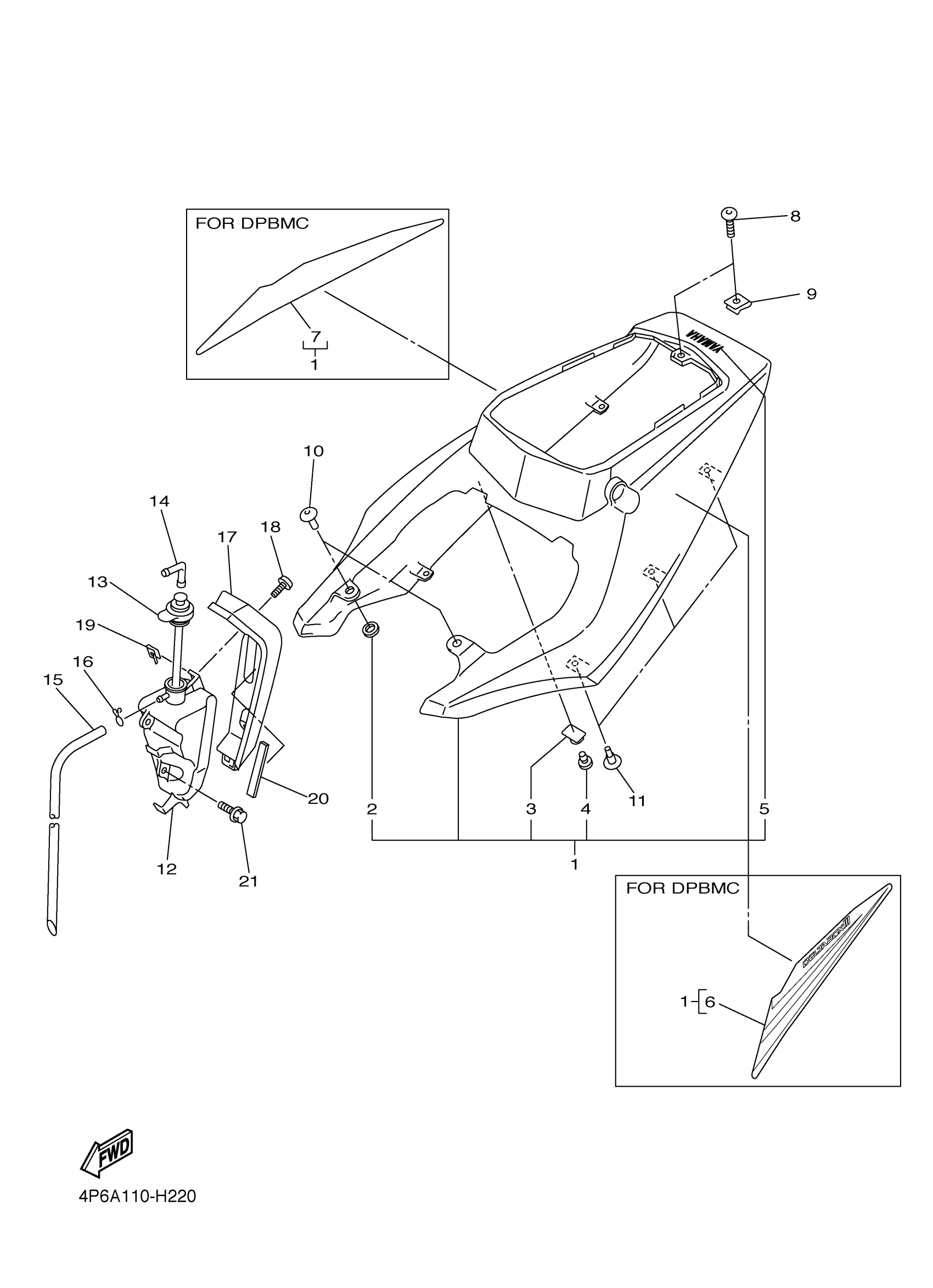

Yamaha YZFR6SYL (YZFR6S) 4P6A 2009 SIDE COVER Diagram

COVER, SIDE 1

DAMPER

. STAY, SIDE COVER 1

PLUG(1NL)

EMBLEM, YAMAHA

BOLT,HEX. SOCKET BUTTON

NUT, SPRING

RIVET(4JH)

RIVET

TANK, RECOVERY

CAP

ELBOW

HOSE (L340)

CLIP 101235600

COVER

BOLT

NUT, SPRING

DAMPER

BOLT, WITH WASHER
