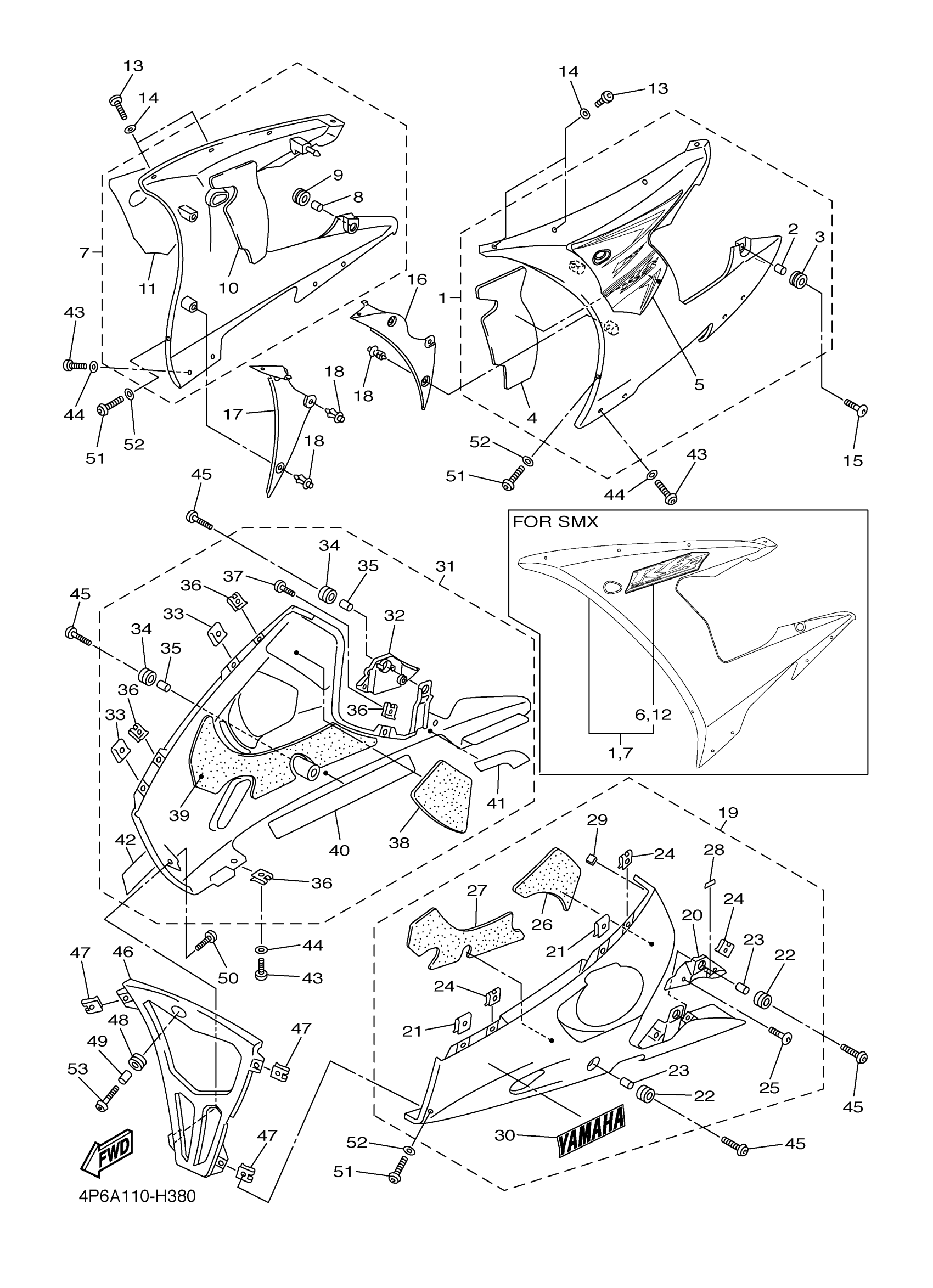

Yamaha YZFR6SYL (YZFR6S) 4P6A 2009 COWLING 2 Diagram
#
1
PANEL ASSEMBLY 1
5SL-Y283U-T0-P0
Unavailable
4
. DAMPER, LOCATING 1
5SL-2836T-00-00
Unavailable
6
. EMBLEM (BLACK METALLIC X)
4P6-28315-50-00
Unavailable
7
PANEL ASSEMBLY 2
5SL-Y283V-T0-P0
Unavailable
12
. EMBLEM (BLACK METALLIC X)
4P6-28315-50-00
Unavailable
16
PANEL, INNER 1
5SL-2836K-00-00
Unavailable
17
PANEL, INNER 2
5SL-2836L-00-00
Unavailable
18
RIVET
90269-06008-00
Unavailable
19
COVER ASSY, UNDER (BLACK METALLIC X)
5SL-Y2808-F0-P4
Unavailable
20
COVER 3
5SL-2843J-00-00
Unavailable
21
NUT, SPRING
90183-051A0-00
Unavailable
24
NUT, SPRING(3GM)
90183-05061-00
Unavailable
25
BOLT
90111-05002-00
Unavailable
26
DAMPER 1
5SL-2834E-00-00
Unavailable
27
. DAMPER 5
5SL-2837J-00-00
Unavailable
28
PLATE, FOOTREST
1HX-27415-00-00
Unavailable
29
DAMPER
5SL-21649-00-00
Unavailable
30
EMBLEM, YAMAHA
4P6-2153E-20-00
Unavailable
31
COVER ASSY 2, UNDER
5SL-Y2809-F0-P4
Unavailable
32
COVER 4
5SL-2844J-00-00
Unavailable
33
NUT, SPRING
90183-051A0-00
Unavailable
36
NUT, SPRING(3GM)
90183-05061-00
Unavailable
37
BOLT
90111-05002-00
Unavailable
38
DAMPER
5SL-2834F-00-00
Unavailable
39
. DAMPER 6
5SL-2837K-00-00
Unavailable
40
. SEAT 1
5SL-2838G-00-00
Unavailable
41
SEAT 2
5SL-2848K-00-00
Unavailable
42
EMBLEM, YAMAHA
4P6-2153E-20-00
Unavailable
46
PANEL, INNER 3
5SL-2836M-00-00
Unavailable
47
NUT, SPRING(3GM)
90183-05061-00
Unavailable
50
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
