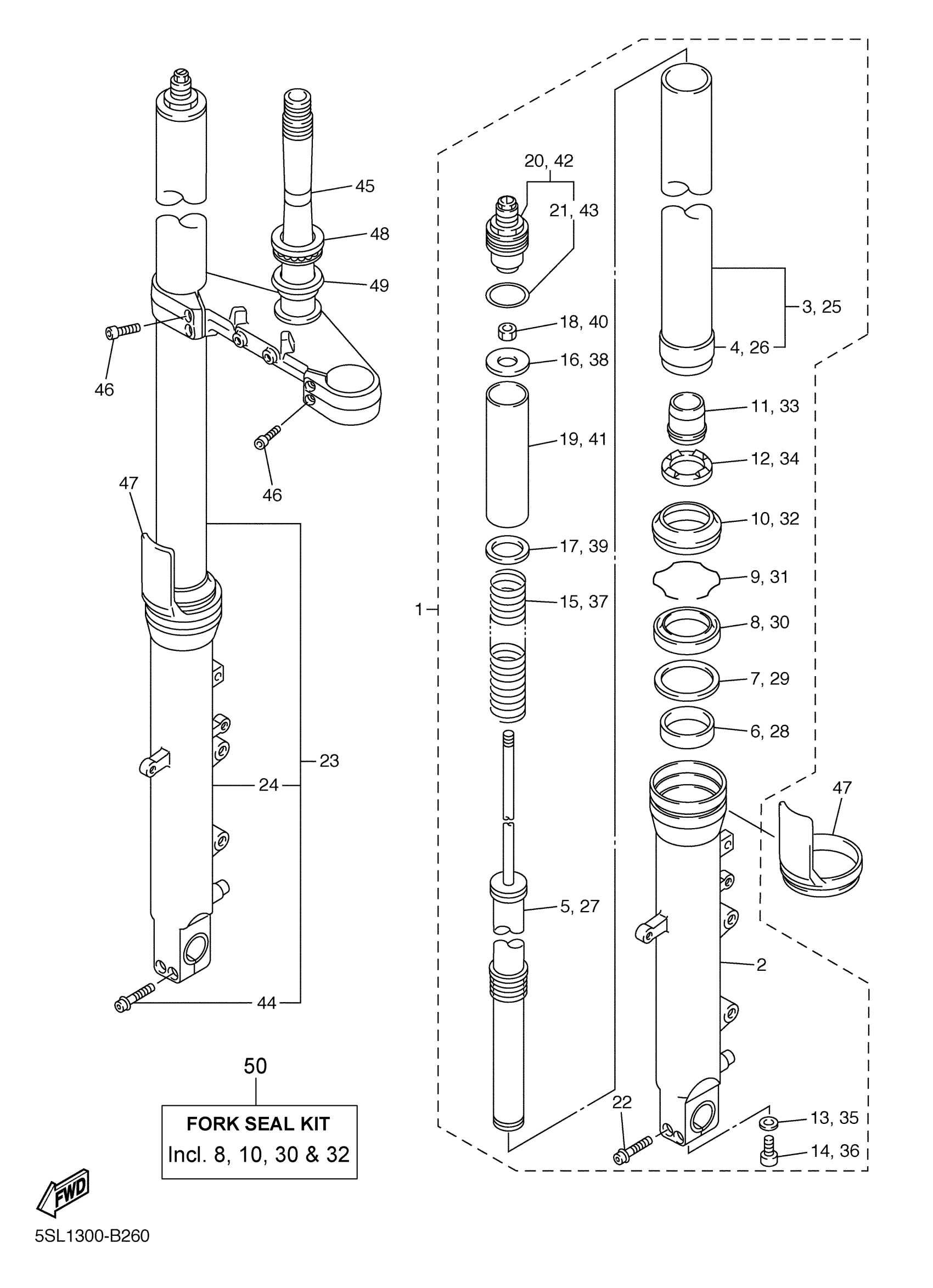

Yamaha YZFR6SXL (YZFR6S) 4P670 2008 FRONT FORK Diagram
#
1
FRONT FORK ASSY (L.H)
5SL-23102-00-00
Unavailable
2
TUBE, OUTER (LEFT)
5SL-23126-00-00
Unavailable
5
CYLINDER COMP., FRONT FORK
5SL-23170-00-00
Unavailable
11
. SPINDLE, TAPER
5MT-23173-00-00
Unavailable
12
RUBBER
5MT-23195-00-00
Unavailable
15
. SPRING, FRONT FORK
5SL-23141-00-00
Unavailable
16
. WASHER, SPRING UPPER
3TJ-23149-10-00
Unavailable
17
WASHER, SPRING UPPER
3LR-23149-00-00
Unavailable
18
NUT
3LC-23357-00-00
Unavailable
19
. SPACER
5SL-23118-00-00
Unavailable
20
. BOLT, CAP
5MT-23111-00-00
Unavailable
21
O-RING
4V4-23188-L1-00
Unavailable
22
BOLT,SOCKET
91314-08040-00
Unavailable
23
FRONT FORK ASSY (R.H)
5SL-23103-00-00
Unavailable
24
. TUBE, OUTER (RIGHT)
5SL-23136-00-00
Unavailable
27
CYLINDER COMP., FRONT FORK
5SL-23170-00-00
Unavailable
33
. SPINDLE, TAPER
5MT-23173-00-00
Unavailable
34
RUBBER
5MT-23195-00-00
Unavailable
37
. SPRING, FRONT FORK
5SL-23141-00-00
Unavailable
38
. WASHER, SPRING UPPER
3TJ-23149-10-00
Unavailable
39
WASHER, SPRING UPPER
3LR-23149-00-00
Unavailable
40
NUT
3LC-23357-00-00
Unavailable
41
. SPACER
5SL-23118-00-00
Unavailable
42
. BOLT, CAP
5MT-23111-00-00
Unavailable
43
O-RING
4V4-23188-L1-00
Unavailable
44
BOLT,SOCKET
91314-08040-00
Unavailable
45
UNDER BRACKET COMP.
5SL-23340-00-00
Unavailable
46
BOLT,SOCKET
91314-08025-00
Unavailable
47
COVER
4PU-2331G-00-00
Unavailable
48
BEARING(3FV)
93399-99932-00
Unavailable
49
SEAL, STEERING
3FV-23462-00-00
Unavailable
50
FORK SEAL KIT (TWO FORKS)
4PU-W003B-00-00
Unavailable
