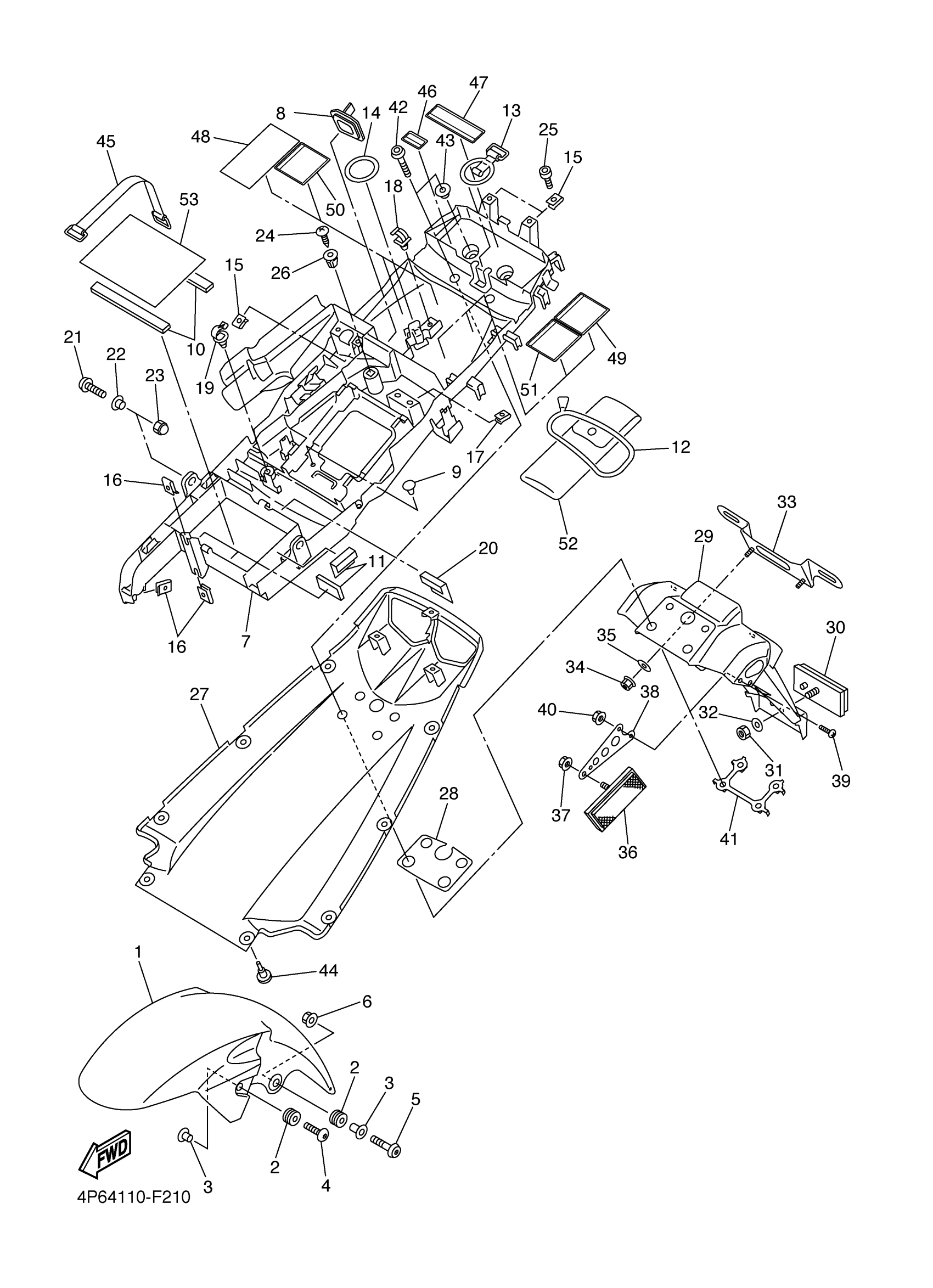

Yamaha YZFR6SXL (YZFR6S) 4P670 2008 FENDER Diagram

#

Description
Price

1

FENDER, FRONT (DEEP PURPLISH BLUE METALLIC C)

5SL-21511-00-P1

Unavailable

1

FENDER, FRONT (VIVID RED COCKTAIL 1) (BLACK METALLIC X)

5SL-21511-00-P4

Unavailable

2

GROMMET

90480-14003-00

$8.49

3

COLLAR

90387-06057-00

$8.49

4

BOLT

90111-06040-00

$4.29

5

BOLT, BUTTON

92014-06025-00

Unavailable

6

NUT, FLANGE(4MV)

95707-06500-00

$1.23

7

BOX, BATTERY 1

5SL-8212B-01-00

Unavailable

8

COVER, TAILLIGHT

5MT-2172X-00-00

Unavailable

9

PLUG(1NL)

90338-07180-00

$7.49

10

DAMPER (L.H)

1AE-2834E-00-00

$6.99

11

DAMPER, SEAT

3KJ-24723-00-00

$6.99

12

BAND, TOOL

3YX-21376-00-00

Unavailable

13

BAND

5SL-21646-00-00

$5.49

14

BAND

5SL-21647-00-00

Unavailable

15

NUT, SPRING

90183-050A6-00

Unavailable

16

NUT, SPRING(4ES)

90183-06069-00

Unavailable

17

NUT, SPRING(47R)

90183-04039-00

Unavailable

18

CLAMP

90464-07259-00

Unavailable

19

CLAMP

90464-13249-00

Unavailable

20

DAMPER

5JW-2139X-00-00

Unavailable

21

BOLT, BUTTON HEAD

92017-06016-00

Unavailable

22

COLLAR

90387-06106-00

Unavailable

23

NUT, CROWN(1FN)

90176-06055-00

Unavailable

24

SCREW, TAPPING

97707-60020-00

Unavailable

25

BOLT, SOCKET

91317-05012-00

Unavailable

26

PLUG(4BP)

90338-08226-00

Unavailable

27

FENDER, REAR

5SL-21611-00-P1

Unavailable

27

FENDER, REAR

5SL-21611-00-P4

Unavailable

28

SEAL

5SL-21669-00-00

Unavailable

29

GUARD, MUD

5SL-21629-11-00

Unavailable

30

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

31

NUT, U

95617-05100-00

Unavailable

32

WASHER, PLATE (8J0)

90201-05725-00

Unavailable

33

BRACKET, LICENSE

5MT-84751-00-00

Unavailable

34

NUT, SELF-LOCKING

95617-06100-00

Unavailable

35

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

36

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

37

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

38

BRACKET, REAR STAY

5PW-21688-00-00

Unavailable

39

SCREW, ROUND HEAD(4KM)

90150-04041-00

Unavailable

40

NUT, U (7LY)

95617-04100-00

Unavailable

41

BRACKET 6

5PW-2161G-00-00

Unavailable

42

BOLT, BUTTON

92017-06020-00

Unavailable

43

COLLAR 437216330000

90387-07391-00

Unavailable

44

RIVET(4PH)

90269-07077-00

Unavailable

45

BAND, BATTERY

5JJ-82131-00-00

Unavailable

46

LABEL, CAUTION

3TB-24877-A1-00

Unavailable

47

LABEL, CAUTION

3JJ-28446-A2-00

Unavailable

48

PLATE, EPA (CALIFORNIA)

4P6-2176P-20-00

Unavailable

48

PLATE, EPA (NON CALIFORNIA)

4P6-2179W-20-00

Unavailable

49

PLATE, ROUTING

5SL-21684-00-00

Unavailable

50

PLATE, ROUTING 2

5SL-21686-00-00

Unavailable

51

LABEL

5SL-2178A-00-00

Unavailable

52

TOOL KIT

5SL-28100-00-00

Unavailable

53

MAT 1

5EB-14733-00-00

Unavailable
