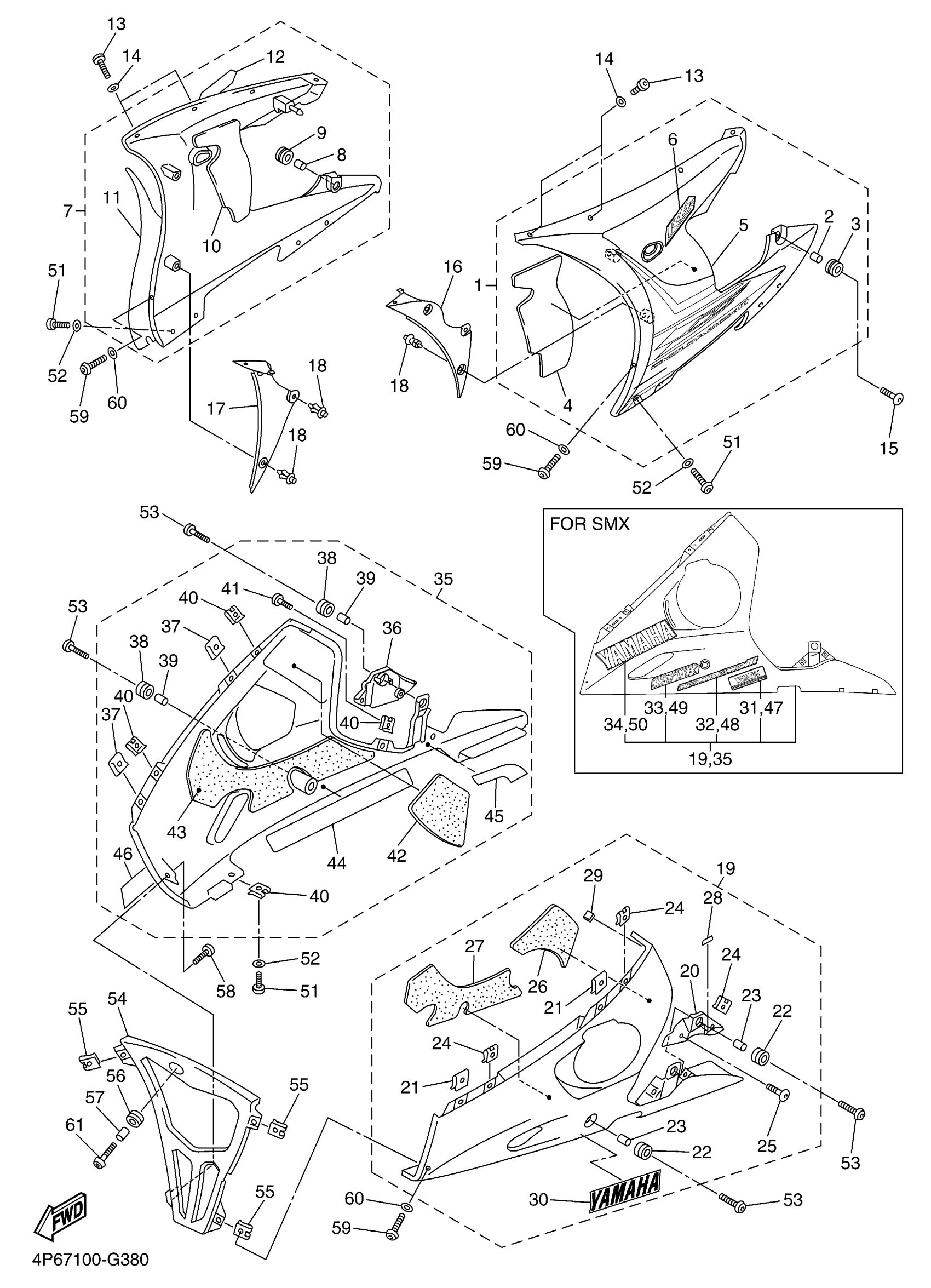

Yamaha YZFR6SXL (YZFR6S) 4P670 2008 COWLING 2 Diagram
#
1
PANEL ASSEMBLY 1 (DEEP PURPLISH BLUE METALLIC C)
5SL-Y283U-P0-P1
Unavailable
1
PANEL ASSEMBLY 1 (MAT BLACK 2) (BLACK METALLIC X)
5SL-Y283U-R0-P0
Unavailable
4
. DAMPER, LOCATING 1
5SL-2836T-00-00
Unavailable
5
. GRAPHIC 1 (DEEP PURPLISH BLUE METALLIC C)
4P6-28391-10-00
Unavailable
6
. EMBLEM (DEEP PURPLISH BLUE METALLIC C)
4P6-28315-30-00
Unavailable
6
EMBLEM
4P6-28315-40-00
Unavailable
7
PANEL ASSEMBLY 2 (DEEP PURPLISH BLUE METALLIC C)
5SL-Y283V-P0-P1
Unavailable
7
PANEL ASSEMBLY 2
5SL-Y283V-R0-P0
Unavailable
11
. GRAPHIC 2 (DEEP PURPLISH BLUE METALLIC C)
4P6-28392-10-00
Unavailable
12
. EMBLEM (DEEP PURPLISH BLUE METALLIC C)
4P6-28315-30-00
Unavailable
12
EMBLEM
4P6-28315-40-00
Unavailable
13
BOLT
90111-05003-00
Unavailable
14
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
15
BOLT
90111-06040-00
Unavailable
16
PANEL, INNER 1
5SL-2836K-00-00
Unavailable
17
PANEL, INNER 2
5SL-2836L-00-00
Unavailable
18
RIVET
90269-06008-00
Unavailable
19
COVER ASSY, UNDER (BLACK METALLIC X) (DEEP PURPLISH BLUE METALLIC C)
5SL-Y2808-A0-P4
Unavailable
19
COVER ASSY, UNDER (BLACK METALLIC X)
5SL-Y2808-C0-P4
Unavailable
20
COVER 3
5SL-2843J-00-00
Unavailable
21
NUT, SPRING
90183-051A0-00
Unavailable
24
NUT, SPRING(3GM)
90183-05061-00
Unavailable
25
BOLT
90111-05002-00
Unavailable
26
DAMPER 1
5SL-2834E-00-00
Unavailable
27
. DAMPER 5
5SL-2837J-00-00
Unavailable
28
PLATE, FOOTREST
1HX-27415-00-00
Unavailable
29
DAMPER
5SL-21649-00-00
Unavailable
30
EMBLEM, YAMAHA
99241-00280-00
Unavailable
31
EMBLEM (BLACK METALLIC X)
4P6-28328-00-00
Unavailable
32
. EMBLEM 1 (BLACK METALLIC X)
4P6-2834C-00-00
Unavailable
33
EMBLEM
4P6-28338-00-00
Unavailable
34
. EMBLEM, YAMAHA (BLACK METALLIC X)
4P6-2153E-01-00
Unavailable
35
COVER ASSY 2, UNDER (BLACK METALLIC X) (DEEP PURPLISH BLUE METALLIC C)
5SL-W2809-00-P4
Unavailable
35
COVER ASSY 2, UNDER
5SL-Y2809-D0-P4
Unavailable
36
COVER 4
5SL-2844J-00-00
Unavailable
37
NUT, SPRING
90183-051A0-00
Unavailable
40
NUT, SPRING(3GM)
90183-05061-00
Unavailable
41
BOLT
90111-05002-00
Unavailable
42
DAMPER
5SL-2834F-00-00
Unavailable
43
. DAMPER 6
5SL-2837K-00-00
Unavailable
44
. SEAT 1
5SL-2838G-00-00
Unavailable
45
SEAT 2
5SL-2848K-00-00
Unavailable
46
EMBLEM, YAMAHA
99241-00280-00
Unavailable
47
EMBLEM (BLACK METALLIC X)
4P6-28328-00-00
Unavailable
48
. EMBLEM 1 (BLACK METALLIC X)
4P6-2834C-00-00
Unavailable
49
EMBLEM
4P6-28338-00-00
Unavailable
50
. EMBLEM, YAMAHA (BLACK METALLIC X)
4P6-2153E-01-00
Unavailable
51
BOLT
90111-05003-00
Unavailable
52
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
53
BOLT
90111-06040-00
Unavailable
54
PANEL, INNER 3
5SL-2836M-00-00
Unavailable
55
NUT, SPRING(3GM)
90183-05061-00
Unavailable
58
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
59
BOLT
90111-05003-00
Unavailable
60
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
61
BOLT
90111-06040-00
Unavailable
