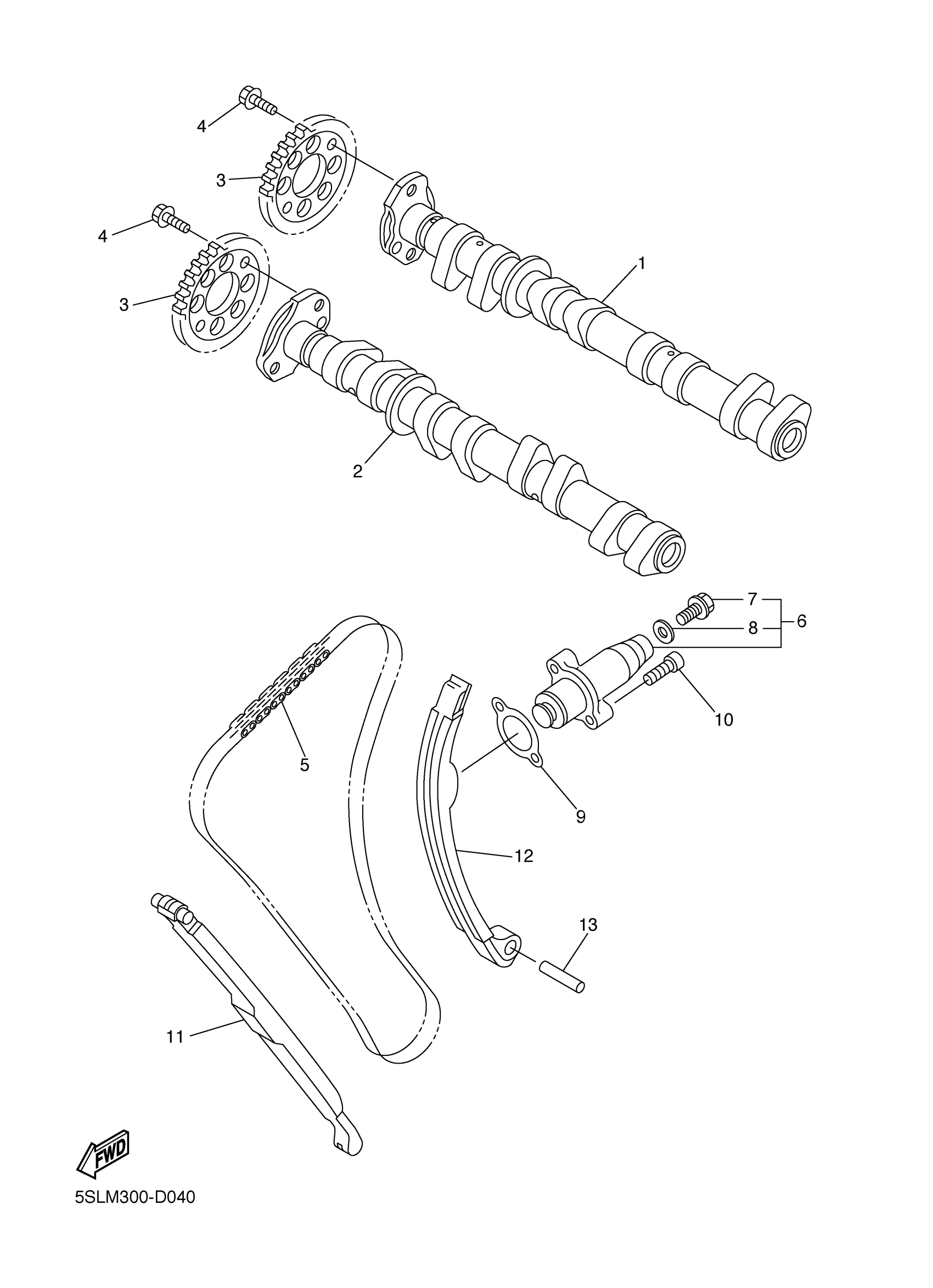

Yamaha YZFR6SXL (YZFR6S) 4P670 2008 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

5SL-12170-00-00

Unavailable

2

CAMSHAFT ASSY 2

5SL-12180-00-00

Unavailable

3

SPROCKET, CAM CHAIN

5EB-12176-00-00

Unavailable

4

BOLT, FLANGE

90105-07004-00

$4.66

5

CHAIN

94591-49120-00

$32.59

6

TENSIONER ASSY.

5SL-12210-11-00

Unavailable

7

BOLT

5EL-12228-00-00

$2.52

8

GASKET

5SL-12214-00-00

$5.96

9

GASKET, TENSIONER CASE

4FM-12213-00-00

$7.05

10

BOLT,SOCKET

91317-06025-00

$1.91

11

DAMPER, CHAIN 1

5EB-12251-01-00

Unavailable

12

DAMPER, CHAIN 2

5EB-12252-11-00

Unavailable

13

PIN, DOWEL

93607-44002-00

$3.95
