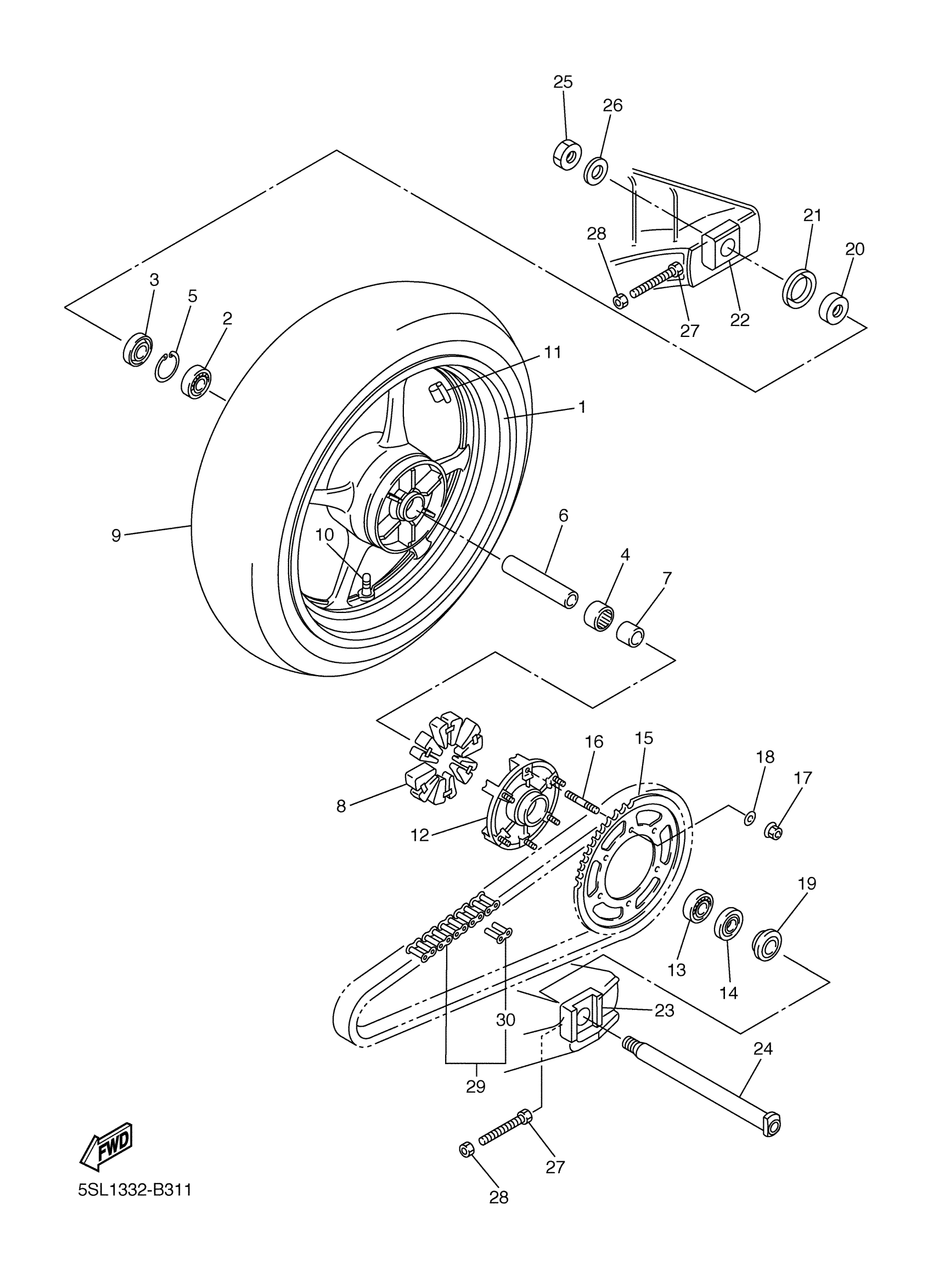

Yamaha YZFR6SWC (YZFR6S CA) 4P65 2007 REAR WHEEL Diagram
#
Description
Price
1
CAST WHEEL, REAR
5SL-25338-00-98
Unavailable
5
CIRCLIP
93420-61M07-00
Unavailable
9
TIRE (180/55ZR17M/C 73W D208A)
94118-17055-00
Unavailable
11
BALANCER, WHEEL
5MT-25398-20-00
Unavailable
15
SPROCKET, DRIVEN (48T)
5SL-25448-20-00
Unavailable
16
BOLT, STUD(1TX)
90116-10485-00
Unavailable
17
NUT, SELF-LOCKING
90185-10009-00
Unavailable
18
WASHER, PLATE
90201-10021-00
Unavailable
19
COLLAR
90387-28019-00
Unavailable
20
COLLAR
90387-28019-00
Unavailable
21
COVER, PLATE
5SL-25327-00-00
Unavailable
22
PULLER, CHAIN 1
5SL-25388-00-00
Unavailable
23
PULLER, CHAIN 2
5SL-25389-00-00
Unavailable
24
AXLE, WHEEL
5SL-25381-10-00
Unavailable
25
NUT, SELF-LOCKING
90185-24007-00
Unavailable
26
WASHER, PLATE
90201-25020-00
Unavailable
27
BOLT(3GM)
90101-08766-00
Unavailable
28
NUT(6TA)
95337-08600-00
Unavailable
29
CHAIN
9Y581-55115-00
Unavailable
30
JOINT, CHAIN(4HD)
94681-55031-00
Unavailable
