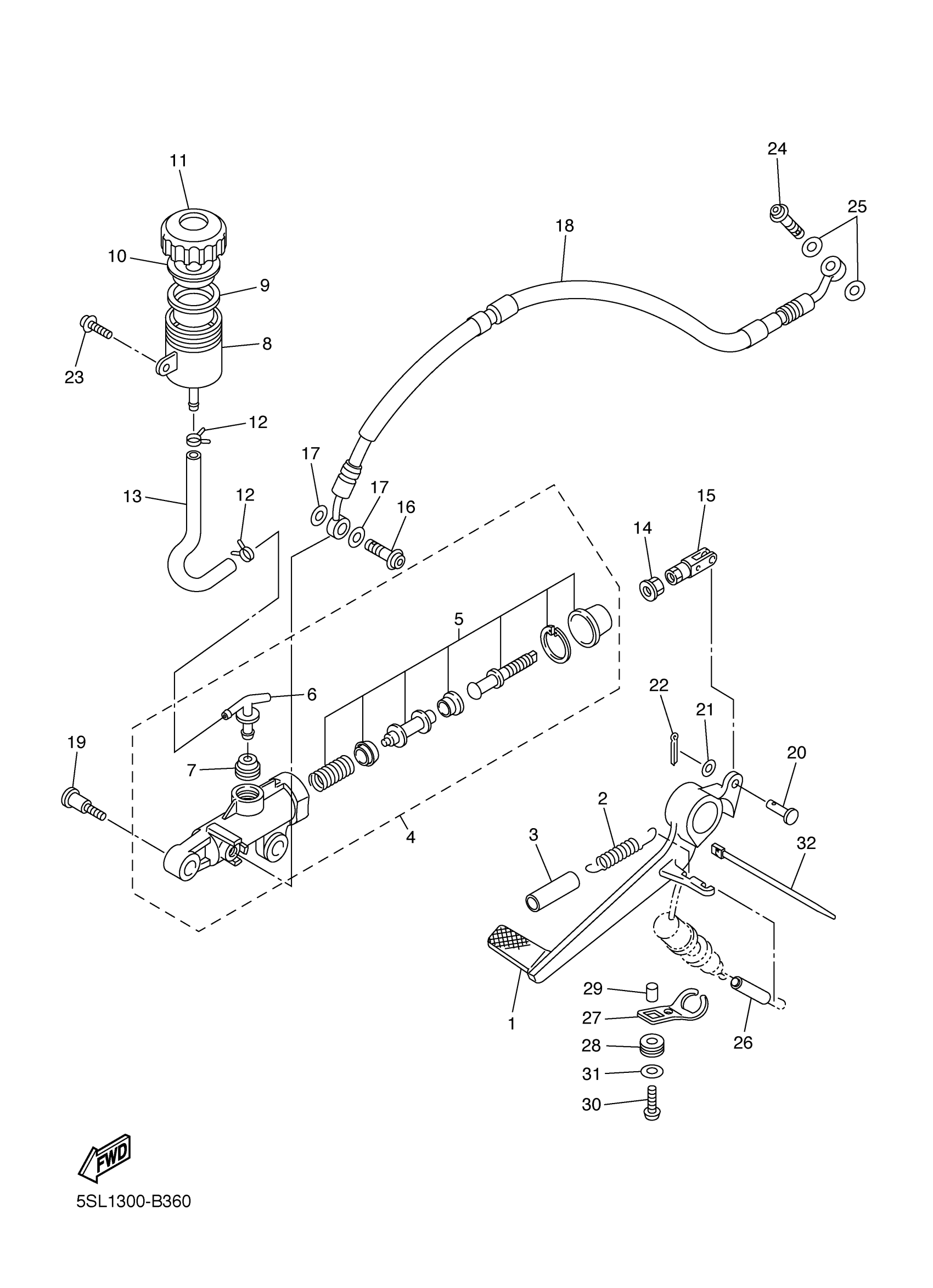

Yamaha YZFR6SWC (YZFR6S CA) 4P65 2007 REAR MASTER CYLINDER Diagram

#

Description
Price

1

PEDAL, BRAKE

5SL-27211-00-00

$105.99

2

SPRING, TENSION (2X3)

90506-20193-00

$14.99

3

HOSE

90446-15386-00

$7.49

4

RR. MASTER CYLINDER ASSY.

5SL-2583V-00-00

Unavailable

5

CYLINDER KIT, MASTER

56P-25808-50-00

$103.99

6

JOINT

5SL-2582A-00-00

$6.99

7

O-RING

4BP-2585F-01-00

Unavailable

8

TANK, RESERVOIR

5SL-25894-00-00

$39.99

9

DIAPHRAGM, RESERVOIR

5SL-25854-00-00

$20.99

10

BUSH,DIAPHRAGM

5SL-25855-00-00

$7.99

11

CAP, RESERVOIR

5SL-25852-00-00

$27.99

12

CLIP

90467-010A0-00

$3.93

13

HOSE, RESERVOIR

5SL-25895-00-00

$6.99

14

NUT, HEXAGON SMALL

95317-08700-00

$9.49

15

JOINT

5SL-27222-00-00

$42.99

16

BOLT, UNION

90401-10172-00

Unavailable

17

WASHER, PLATE(481)

90201-10118-00

Unavailable

18

HOSE, BRAKE

5SL-25874-00-00

Unavailable

19

BOLT

90109-06013-00

Unavailable

20

PIN, CLEVIS (5X6)

91701-06018-00

Unavailable

21

WASHER(6TA)

92907-06200-00

Unavailable

22

PIN, COTTER

91490-16020-00

Unavailable

23

SCREW, WITH WASHER (5U8)

90159-06056-00

Unavailable

24

BOLT, UNION

90401-10172-00

Unavailable

25

WASHER, PLATE(481)

90201-10118-00

Unavailable

26

HOSE

90446-08001-00

Unavailable

27

STAY, STOP SWITCH

5SL-2144G-00-00

Unavailable

28

GROMMET(4SV)

90480-12607-00

Unavailable

29

COLLAR 8121444900

90387-06023-00

Unavailable

30

BOLT, BUTTON HEAD

92017-06016-00

Unavailable

31

WASHER, PLATE

90201-06380-00

Unavailable

32

CLAMP

5Y9-12491-00-00

Unavailable
