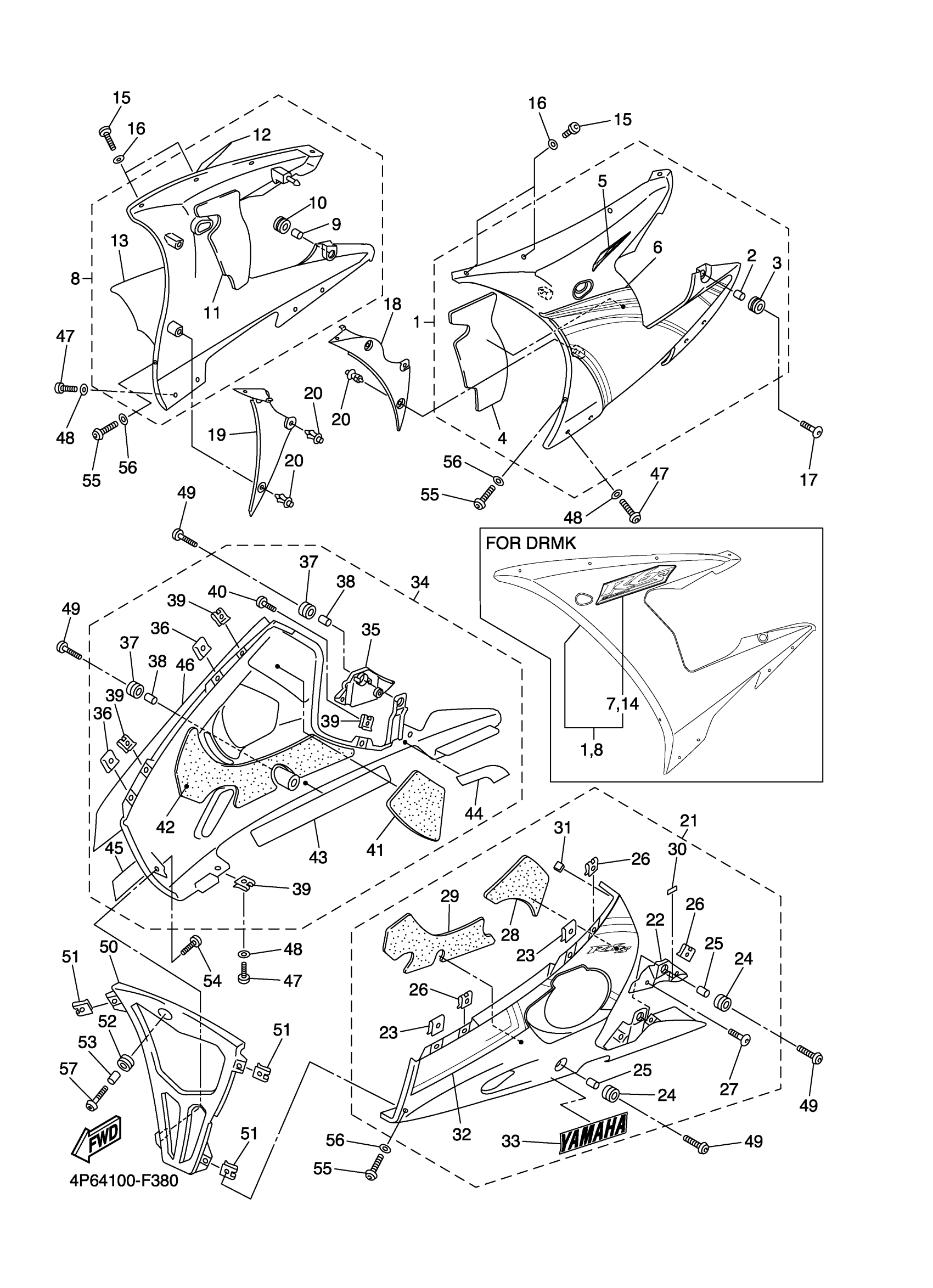

Yamaha YZFR6SWC (YZFR6S CA) 4P65 2007 COWLING 2 Diagram
#
1
PANEL ASSEMBLY 1 (DEEP PURPLISH BLUE METALLIC C)
5SL-Y283U-M0-P1
Unavailable
1
PANEL ASSEMBLY 1 (DEEP RED METALLIC K)
5SL-Y283U-N0-P6
Unavailable
4
. DAMPER, LOCATING 1
5SL-2836T-00-00
Unavailable
5
. GRAPHIC 19 (DEEP PURPLISH BLUE METALLIC C)
5AH-283B3-00-00
Unavailable
6
. GRAPHIC 1 (DEEP PURPLISH BLUE METALLIC C)
4P6-28391-00-00
Unavailable
7
EMBLEM
4P6-28315-20-00
Unavailable
8
PANEL ASSEMBLY 2 (DEEP PURPLISH BLUE METALLIC C)
5SL-Y283V-M0-P1
Unavailable
8
PANEL ASSEMBLY 2
5SL-Y283V-N0-P7
Unavailable
12
. GRAPHIC 20 (DEEP PURPLISH BLUE METALLIC C)
5AH-283B4-00-00
Unavailable
13
. GRAPHIC 2 (DEEP PURPLISH BLUE METALLIC C)
4P6-28392-00-00
Unavailable
14
EMBLEM
4P6-28315-20-00
Unavailable
15
BOLT
90111-05003-00
Unavailable
16
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
17
BOLT
90111-06040-00
Unavailable
18
PANEL, INNER 1
5SL-2836K-00-00
Unavailable
19
PANEL, INNER 2
5SL-2836L-00-00
Unavailable
20
RIVET
90269-06008-00
Unavailable
21
COVER ASSY, UNDER (MAT BLACK 2) (DEEP RED METALLIC K)
5SL-Y2808-10-P1
Unavailable
21
COVER ASSY, UNDER (DARK BLUISH GRAY METALLIC 8) (DEEP PURPLISH BLUE METALLIC C)
5SL-Y2808-B0-P5
Unavailable
22
COVER 3
5SL-2843J-00-00
Unavailable
23
NUT, SPRING
90183-051A0-00
Unavailable
26
NUT, SPRING(3GM)
90183-05061-00
Unavailable
27
BOLT
90111-05002-00
Unavailable
28
DAMPER 1
5SL-2834E-00-00
Unavailable
29
. DAMPER 5
5SL-2837J-00-00
Unavailable
30
PLATE, FOOTREST
1HX-27415-00-00
Unavailable
31
DAMPER
5SL-21649-00-00
Unavailable
32
. GRAPHIC, UNDER COVER 1 (DEEP PURPLISH BLUE METALLIC C)
4P6-283A1-00-00
Unavailable
33
EMBLEM, YAMAHA
99241-00280-00
Unavailable
33
EMBLEM, YAMAHA
99246-00280-00
Unavailable
34
COVER ASSY 2, UNDER (MAT BLACK 2) (DEEP RED METALLIC K)
5SL-Y2809-10-P1
Unavailable
34
COVER ASSY 2, UNDER (DARK BLUISH GRAY METALLIC 8) (DEEP PURPLISH BLUE METALLIC C)
5SL-Y2809-C0-P5
Unavailable
35
COVER 4
5SL-2844J-00-00
Unavailable
36
NUT, SPRING
90183-051A0-00
Unavailable
39
NUT, SPRING(3GM)
90183-05061-00
Unavailable
40
BOLT
90111-05002-00
Unavailable
41
DAMPER
5SL-2834F-00-00
Unavailable
42
. DAMPER 6
5SL-2837K-00-00
Unavailable
43
. SEAT 1
5SL-2838G-00-00
Unavailable
44
SEAT 2
5SL-2848K-00-00
Unavailable
45
EMBLEM, YAMAHA
99241-00280-00
Unavailable
45
EMBLEM, YAMAHA
99246-00280-00
Unavailable
46
. GRAPHIC, UNDER COVER 2 (DEEP PURPLISH BLUE METALLIC C)
4P6-283A2-00-00
Unavailable
47
BOLT
90111-05003-00
Unavailable
48
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
49
BOLT
90111-06040-00
Unavailable
50
PANEL, INNER 3
5SL-2836M-00-00
Unavailable
51
NUT, SPRING(3GM)
90183-05061-00
Unavailable
54
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
55
BOLT
90111-05003-00
Unavailable
56
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
57
BOLT
90111-06040-00
Unavailable
