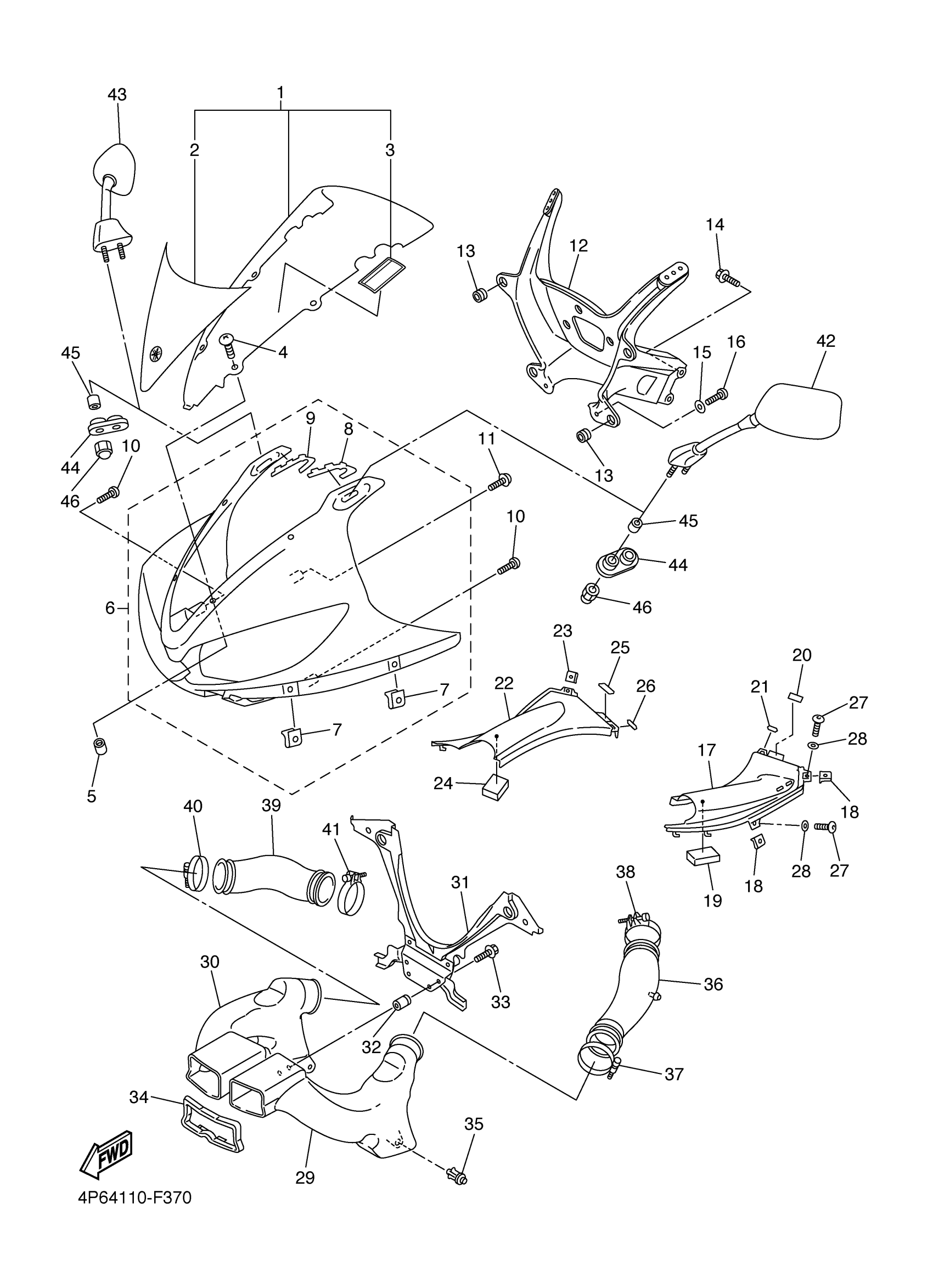

Yamaha YZFR6SWC (YZFR6S CA) 4P65 2007 COWLING 1 Diagram
#
1
WINDSHIELD
5SL-Y2881-11-00
Unavailable
2
. GRAPHIC 18
5SL-2832P-00-00
Unavailable
3
LABEL, CAUTION
5JW-2835Y-00-00
Unavailable
6
UPPER COWLING ASSY
5SL-28330-01-P1
Unavailable
6
UPPER COWLING ASSY 1 (DEEP RED METALLIC K)
5SL-28330-01-P6
Unavailable
8
. SEAL 1
5SL-28428-00-00
Unavailable
9
. SEAL 2
5SL-28429-00-00
Unavailable
15
. WASHER, PLATE
90202-05088-00
Unavailable
16
SCREW, TAPPING(4TV)
90167-05078-00
Unavailable
17
PANEL, CONSOLE 1
5SL-2837L-01-00
Unavailable
18
NUT, SPRING(3GM)
90183-05061-00
Unavailable
19
DAMPER
4XY-21649-00-00
Unavailable
20
DAMPER 2
1HX-28227-00-00
Unavailable
21
DAMPER 2
5SL-28416-00-00
Unavailable
22
PANEL, CONSOLE 2
5SL-2837M-01-00
Unavailable
23
NUT, SPRING(3GM)
90183-05061-00
Unavailable
24
DAMPER
4XY-21649-00-00
Unavailable
25
DAMPER 2
1HX-28227-00-00
Unavailable
26
DAMPER 2
5SL-28416-00-00
Unavailable
27
BOLT
90111-05003-00
Unavailable
28
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
29
DUCT 2
5SL-2838R-00-00
Unavailable
30
DUCT 3
5SL-2838T-00-00
Unavailable
31
COVER, HEADLIGHT
5SL-2838E-00-00
Unavailable
33
BOLT, HEXAGON WITH WASHER(353)
90119-05001-00
Unavailable
34
DAMPER
5SL-28371-00-00
Unavailable
35
RIVET
90269-06008-00
Unavailable
36
JOINT, SURGE TANK 1
5EB-1446F-00-00
Unavailable
37
HOSE CLAMP ASSY
90450-64004-00
Unavailable
38
HOSE CLAMP ASSY
90450-62006-00
Unavailable
39
JOINT, SURGE TANK 1
5EB-1446F-00-00
Unavailable
40
HOSE CLAMP ASSY
90450-64004-00
Unavailable
41
HOSE CLAMP ASSY
90450-62006-00
Unavailable
42
REAR VIEW MIRROR ASSY (LEFT)
5SL-26280-00-00
Unavailable
43
REAR VIEW MIRROR ASSY (RIGHT)
5SL-26290-00-00
Unavailable
44
PLATE, MIRROR FITTING 1
5SL-26298-00-00
Unavailable
45
COLLAR
90387-06057-00
Unavailable
46
NUT, CROWN
90176-06008-00
Unavailable
