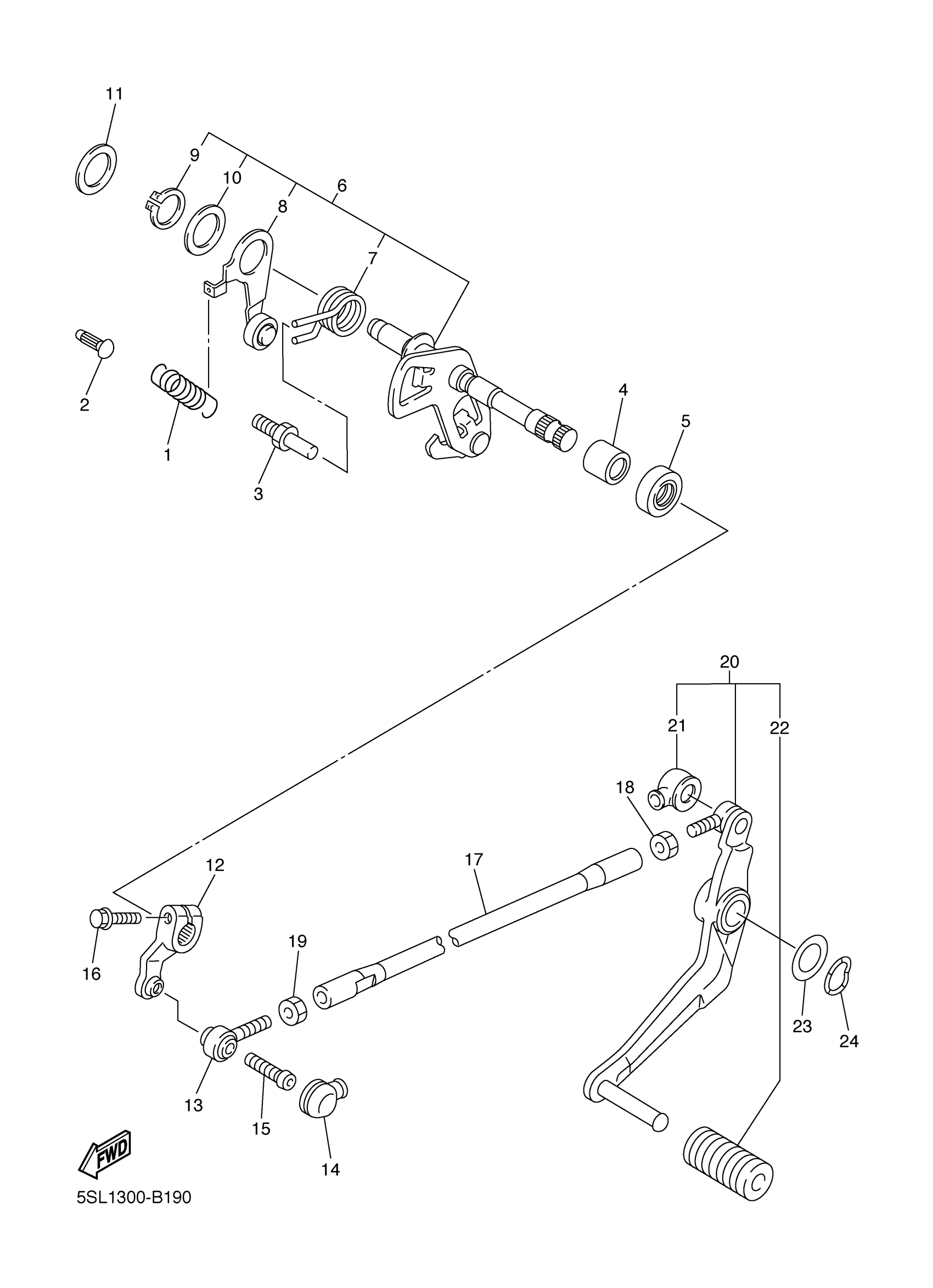

Yamaha YZFR6SS (YZFR6) 5SLH 2004 SHIFT SHAFT Diagram

#

Description
Price

1

SPRING, TENSION

90506-14003-00

$8.49

2

HOOK, SPRING

132-16346-00-00

$9.99

3

STOPPER, SCREW

5VK-18127-00-00

Unavailable

4

BEARING

93317-11287-00

$23.99

5

OIL SEAL (12X22X5-371)

93102-12106-00

$11.49

6

SHIFT SHAFT ASSY

5SL-18101-01-00

Unavailable

7

SPRING, TORSION

90508-295B2-00

$9.49

8

STOPPER LEVER ASSY

5SL-18140-00-00

Unavailable

9

CIRCLIP(1EY)

99009-17400-00

$4.73

10

WASHER, PLATE (30X)

90201-177G4-00

$9.49

11

WASHER, PLATE (4L0)

90201-154E8-00

$8.49

12

ARM, SHIFT

5EB-18112-01-00

$103.99

13

JOINT, ROD 1

5LV-18116-00-00

$57.99

14

COVER, DUST

4XV-18154-00-00

$7.99

15

BOLT, BUTTON

92017-06020-00

$3.76

16

BOLT, FLANGE

95814-06020-00

Unavailable

17

ROD, SHIFT

5SL-18115-00-00

Unavailable

18

NUT(1KT)

90170-08358-00

Unavailable

19

NUT(650)

95380-06700-00

Unavailable

20

SHIFT PEDAL ASSY

5EB-18110-10-00

Unavailable

21

COVER, DUST

2H9-18154-00-00

Unavailable

22

COVER, SHIFT PEDAL

5EB-18113-00-00

Unavailable

23

WASHER, PLATE

90201-12013-00

Unavailable

24

WASHER, WAVE (17W)

90206-12074-00

Unavailable
