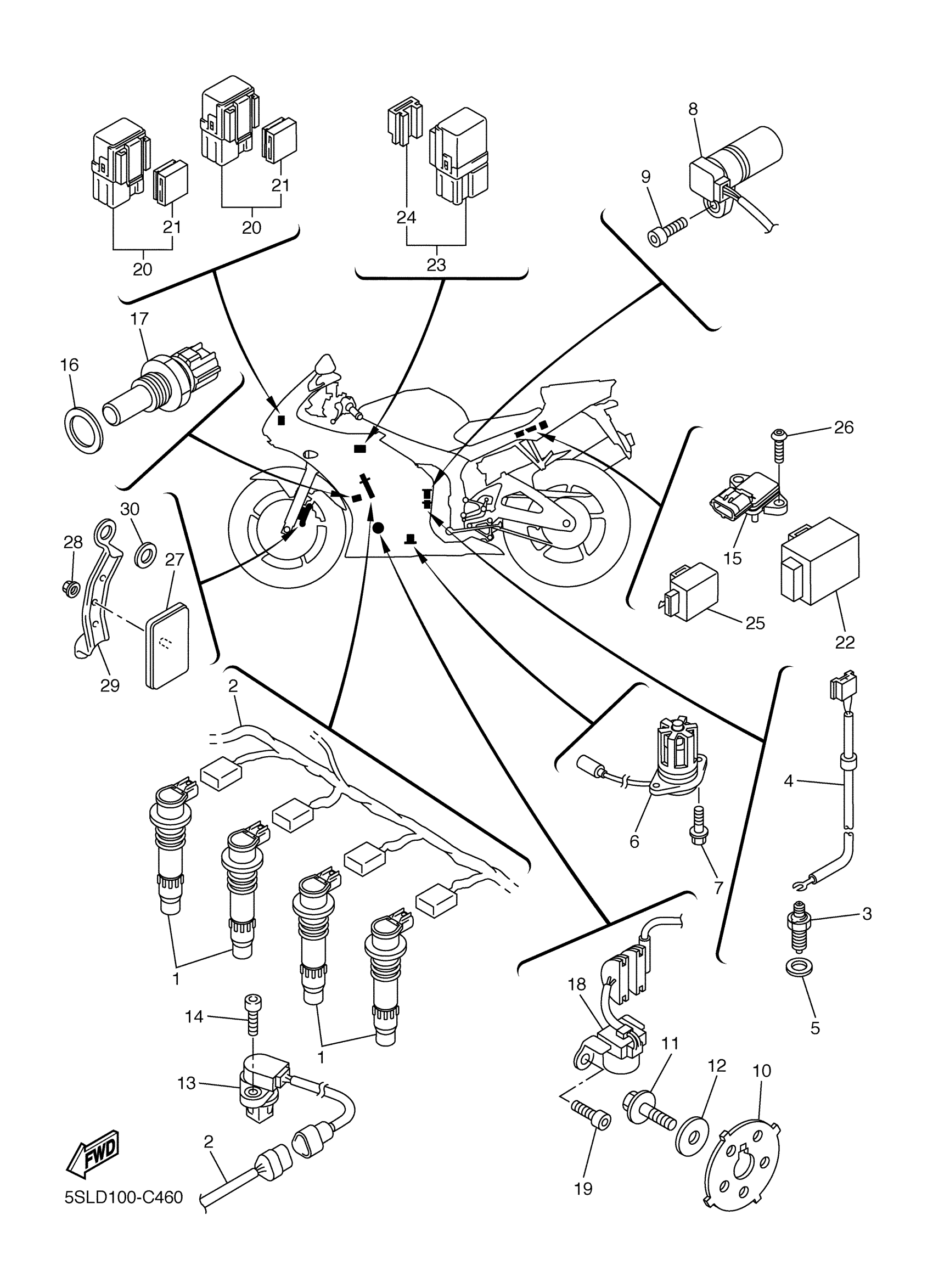

Yamaha YZFR6SS (YZFR6) 5SLH 2004 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITION COIL ASSY

5SL-82310-20-00

Unavailable

2

WIRE, SUB LEAD

5SL-82309-12-00

Unavailable

3

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$58.99

4

WIRE, LEAD

2C0-82541-00-00

$16.49

5

GASKET (1KH,1.0T)

90430-10148-00

$5.60

6

OIL LEVEL GAUGE ASSY

5SL-85720-01-00

Unavailable

7

BOLT, WASHER BASED(JA9)

90105-06696-00

$9.49

8

SENSOR, SPEED

5EB-83755-02-00

Unavailable

9

BOLT,SOCKET

91317-06016-00

$1.25

10

ROTOR

5SL-81673-00-00

$41.99

11

BOLT, WASHER BASED

90105-08113-00

$5.60

12

WASHER, PLATE(8AT)

90201-081R9-00

$9.49

13

SENSOR, CAM POSITION

5PW-85896-12-00

$124.99

14

BOLT,SOCKET

91317-06020-00

Unavailable

15

SENSOR, PRESSURE

5VX-82380-00-00

$229.99

16

WASHER, PLATE

90201-12790-00

Unavailable

17

THERMOSENSOR ASSY

8CC-85790-01-00

Unavailable

18

PICK-UP ASSY

5SL-81670-00-00

Unavailable

19

BOLT,SOCKET

91317-06016-00

$1.25

20

RELAY ASSY (5JJ-20)

5JJ-81950-20-00

Unavailable

21

HOLDER, RELAY

5JJ-81952-00-00

Unavailable

22

RELAY ASSY (5PW-00)

5PW-81950-00-00

Unavailable

23

RELAY ASSY (5EA-02)

5EA-81950-20-00

Unavailable

24

HOLDER,RELAY

5EA-81952-00-00

Unavailable

25

FLASHER RELAY ASSY

4MY-83350-03-00

Unavailable

26

BOLT, BUTTON HEAD

92017-05016-00

Unavailable

27

FRONT REFLECTOR ASSY

23V-85110-00-00

Unavailable

28

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

29

BRACKET, REFLECTOR 1

5SL-85112-00-00

Unavailable

30

WASHER PLATE (3L6)

90201-08759-00

Unavailable
