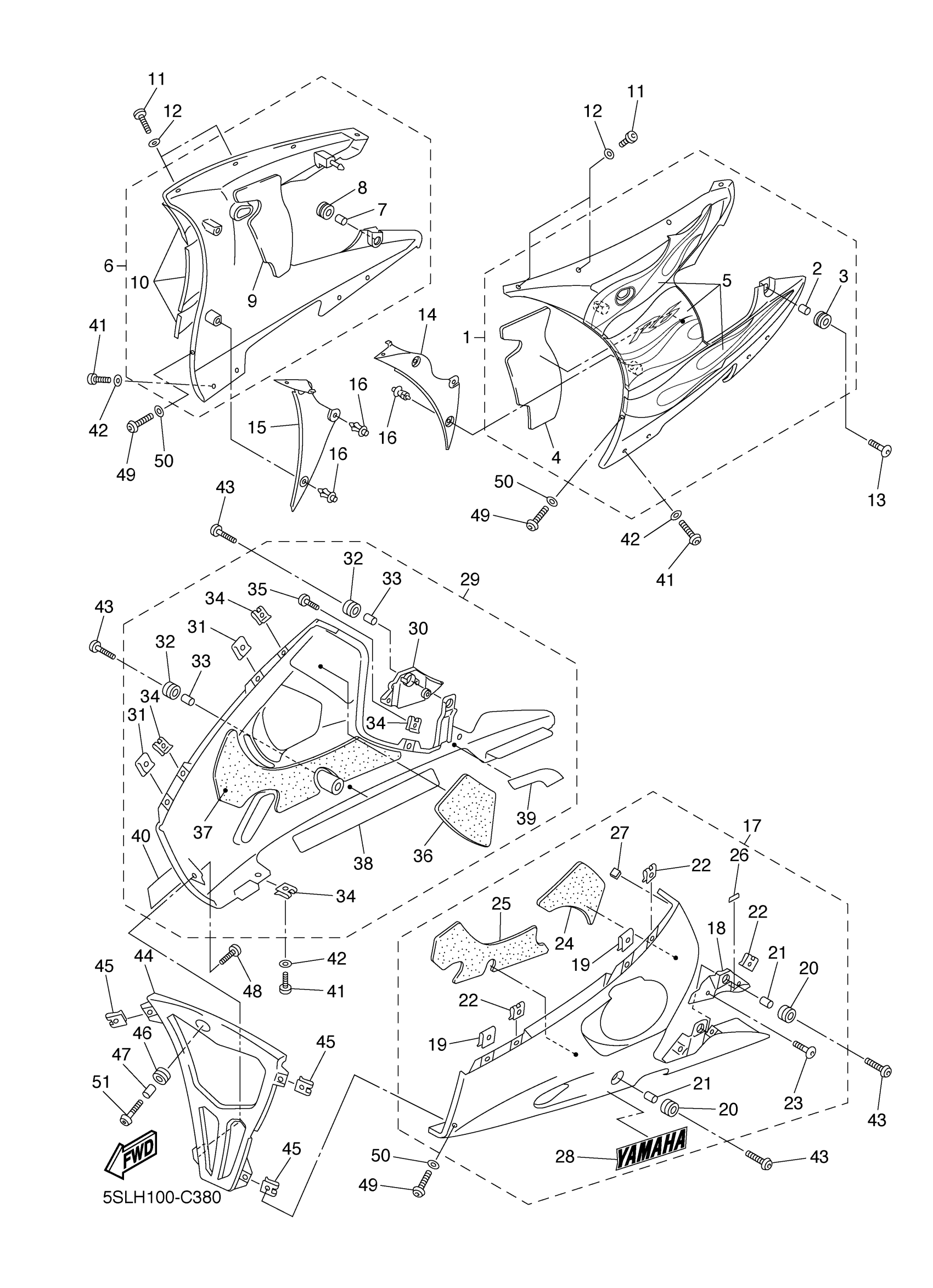

Yamaha YZFR6SS (YZFR6) 5SLH 2004 COWLING 2 Diagram
#
1
PANEL ASSEMBLY 1 (SILVER 3)
5SL-Y283U-E0-P5
Unavailable
4
. DAMPER, LOCATING 1
5SL-2836T-00-00
Unavailable
5
. GRAPHIC SET
5SL-283B1-B0-00
Unavailable
6
PANEL ASSEMBLY 2 (SILVER 3)
5SL-Y283V-E0-P5
Unavailable
10
. GRAPHIC SET
5SL-283B2-B0-00
Unavailable
14
PANEL, INNER 1
5SL-2836K-00-00
Unavailable
15
PANEL, INNER 2
5SL-2836L-00-00
Unavailable
16
RIVET
90269-06008-00
Unavailable
17
COVER ASSY, UNDER (SILVER 3)
5SL-Y2808-20-P2
Unavailable
18
COVER 3
5SL-2843J-00-00
Unavailable
19
NUT, SPRING
90183-051A0-00
Unavailable
22
NUT, SPRING(3GM)
90183-05061-00
Unavailable
23
BOLT
90111-05002-00
Unavailable
24
DAMPER 1
5SL-2834E-00-00
Unavailable
25
. DAMPER 5
5SL-2837J-00-00
Unavailable
26
PLATE, FOOTREST
1HX-27415-00-00
Unavailable
27
DAMPER
5SL-21649-00-00
Unavailable
28
EMBLEM, YAMAHA
99247-00280-00
Unavailable
29
COVER ASSY 2, UNDER (SILVER 3)
5SL-Y2809-20-P2
Unavailable
30
COVER 4
5SL-2844J-00-00
Unavailable
31
NUT, SPRING
90183-051A0-00
Unavailable
34
NUT, SPRING(3GM)
90183-05061-00
Unavailable
35
BOLT
90111-05002-00
Unavailable
36
DAMPER
5SL-2834F-00-00
Unavailable
37
. DAMPER 6
5SL-2837K-00-00
Unavailable
38
. SEAT 1
5SL-2838G-00-00
Unavailable
39
SEAT 2
5SL-2848K-00-00
Unavailable
40
EMBLEM, YAMAHA
99247-00280-00
Unavailable
44
PANEL, INNER 3
5SL-2836M-00-00
Unavailable
45
NUT, SPRING(3GM)
90183-05061-00
Unavailable
48
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
