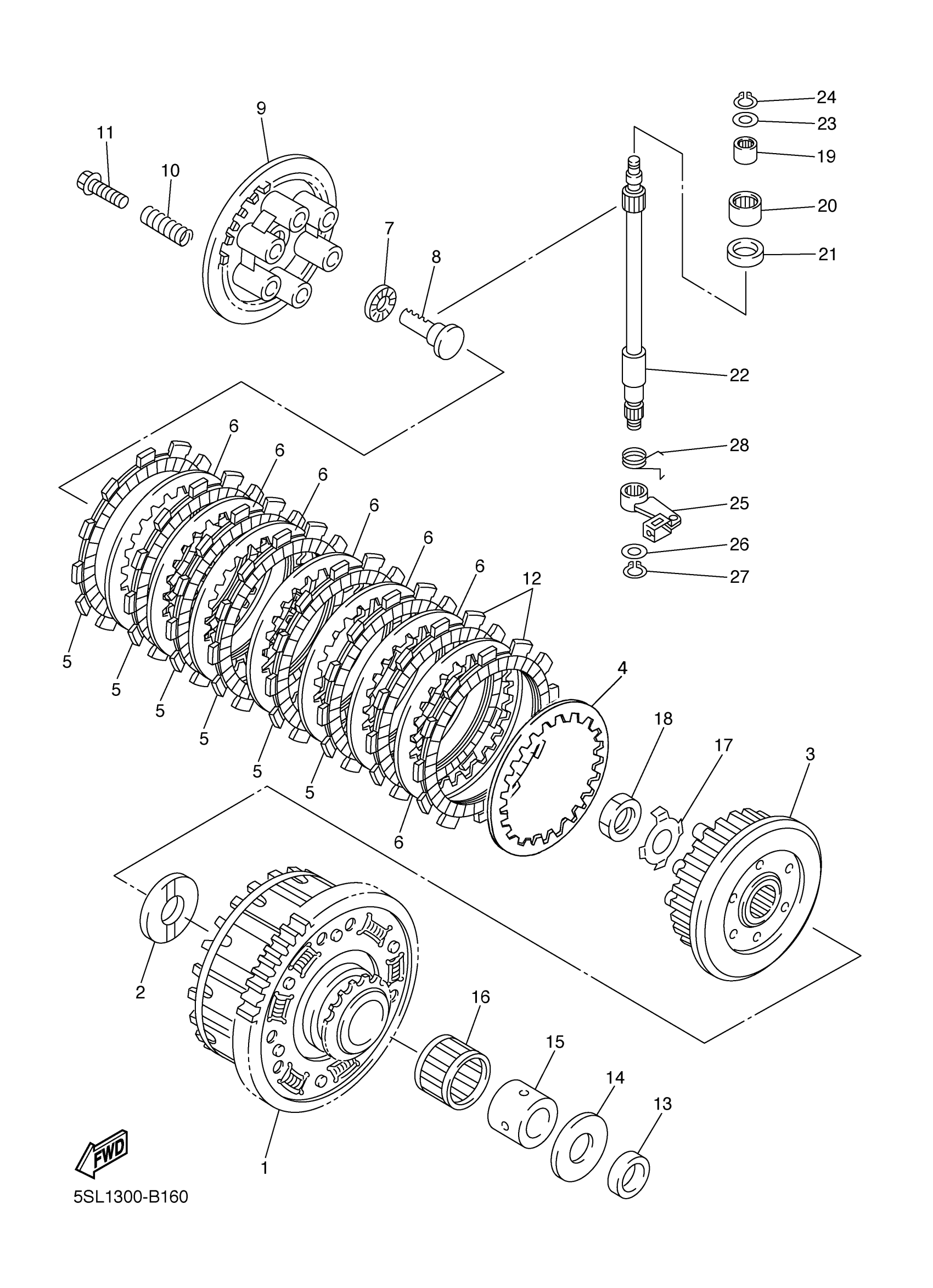

Yamaha YZFR6SS (YZFR6) 5SLH 2004 CLUTCH Diagram

#

Description
Price

1

PRIMARY DRIVEN GEAR COMP.

5SL-16150-10-00

Unavailable

2

PLATE, THRUST 1

5EB-16154-00-00

$24.99

3

BOSS, CLUTCH

5SL-16371-00-00

$178.99

4

PLATE, CLUTCH 1

168-16324-10-00

Unavailable

5

PLATE, FRICTION

4FN-16321-00-00

Unavailable

6

PLATE, CLUTCH 1

3J2-16324-10-00

$10.99

7

BEARING(2JN)

93306-00315-00

$33.99

8

ROD, PUSH 1

5EB-16356-01-00

Unavailable

9

PLATE, PRESSURE 1

5EB-16351-01-00

Unavailable

10

SPRING, COMPRESSION

90501-237L0-00

$7.49

11

SCREW, WITH WASHER

90159-06002-00

Unavailable

12

PLATE, FRICTION

5SL-16321-00-00

$25.99

13

WASHER, PLATE (4X7)

90201-255A6-00

$12.49

14

PLATE, THRUST 2

1AE-16164-00-00

$16.49

15

COLLAR

90387-25024-00

Unavailable

16

BEARING, CYLINDRICAL(1FN)

93310-340N8-00

Unavailable

17

WASHER, LOCK

90215-20004-00

Unavailable

18

NUT

90170-20008-00

Unavailable

19

BEARING

93317-11096-00

Unavailable

20

BRG,CYL-CAL ROLLER 16G TM

93315-31502-00

Unavailable

21

OIL SEAL (3X3)

93102-15212-00

Unavailable

22

AXLE, PUSH LEVER

5EB-16382-00-00

Unavailable

23

WASHER(6TA)

92907-08600-00

Unavailable

24

CIRCLIP

99080-07600-00

Unavailable

25

PUSH LEVER ASSY

5SL-16340-00-00

Unavailable

26

WASHER, PLATE (2W5)

90201-10614-00

Unavailable

27

CIRCLIP(J51)

99080-09600-00

Unavailable

28

SPRING, TORSION

90508-165B1-00

Unavailable
