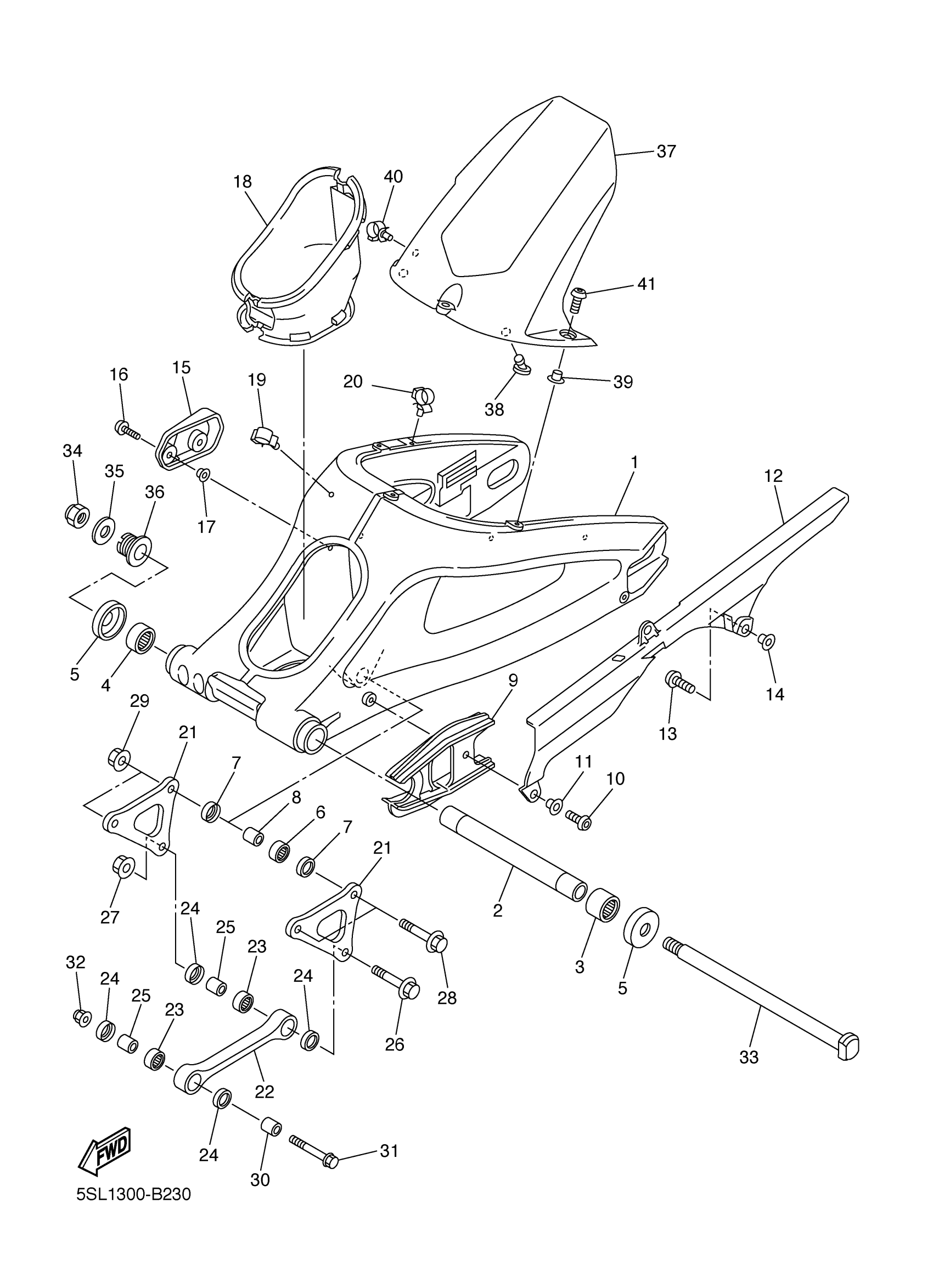

Yamaha YZFR6SRC (YZFR6 CA) 5SL8 2003 REAR ARM Diagram
#
1
REAR ARM COMP.
5SL-22110-01-00
Unavailable
3
BEARING, CYLINDRICAL(36Y)
93317-42550-00
Unavailable
9
SEAL, GUARD
5SL-22151-00-00
Unavailable
15
COVER 1
5SL-22381-00-00
Unavailable
16
BOLT
90111-06038-00
Unavailable
17
COLLAR (8G8)
90387-06681-00
Unavailable
18
COVER
5SL-2219X-00-00
Unavailable
19
CLAMP
90464-16012-00
Unavailable
20
CLAMP
90464-16011-00
Unavailable
21
ARM, RELAY
5SL-2217A-00-00
Unavailable
22
ARM 1
5SL-2217M-00-00
Unavailable
23
BEARING
93315-31758-00
Unavailable
26
BOLT, WASHER BASED
90105-10017-00
Unavailable
27
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
28
BOLT, WASHER BASED
90105-10017-00
Unavailable
29
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
30
COLLAR
90387-1013U-00
Unavailable
31
BOLT, WASHER BASED
90105-10018-00
Unavailable
32
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
33
SHAFT, PIVOT
4FN-22141-00-00
Unavailable
34
NUT, SELF-LOCKING
90185-18009-00
Unavailable
35
WASHER, PLATE (5K7)
90201-18264-00
Unavailable
36
BOLT
5PW-22125-00-00
Unavailable
37
REAR FENDER COMP.
5SL-21650-00-00
Unavailable
38
DAMPER 2
5SL-21639-00-00
Unavailable
39
COLLAR (3L1)
90387-07717-00
Unavailable
40
CLAMP
90464-16012-00
Unavailable
41
BOLT
90111-06038-00
Unavailable
