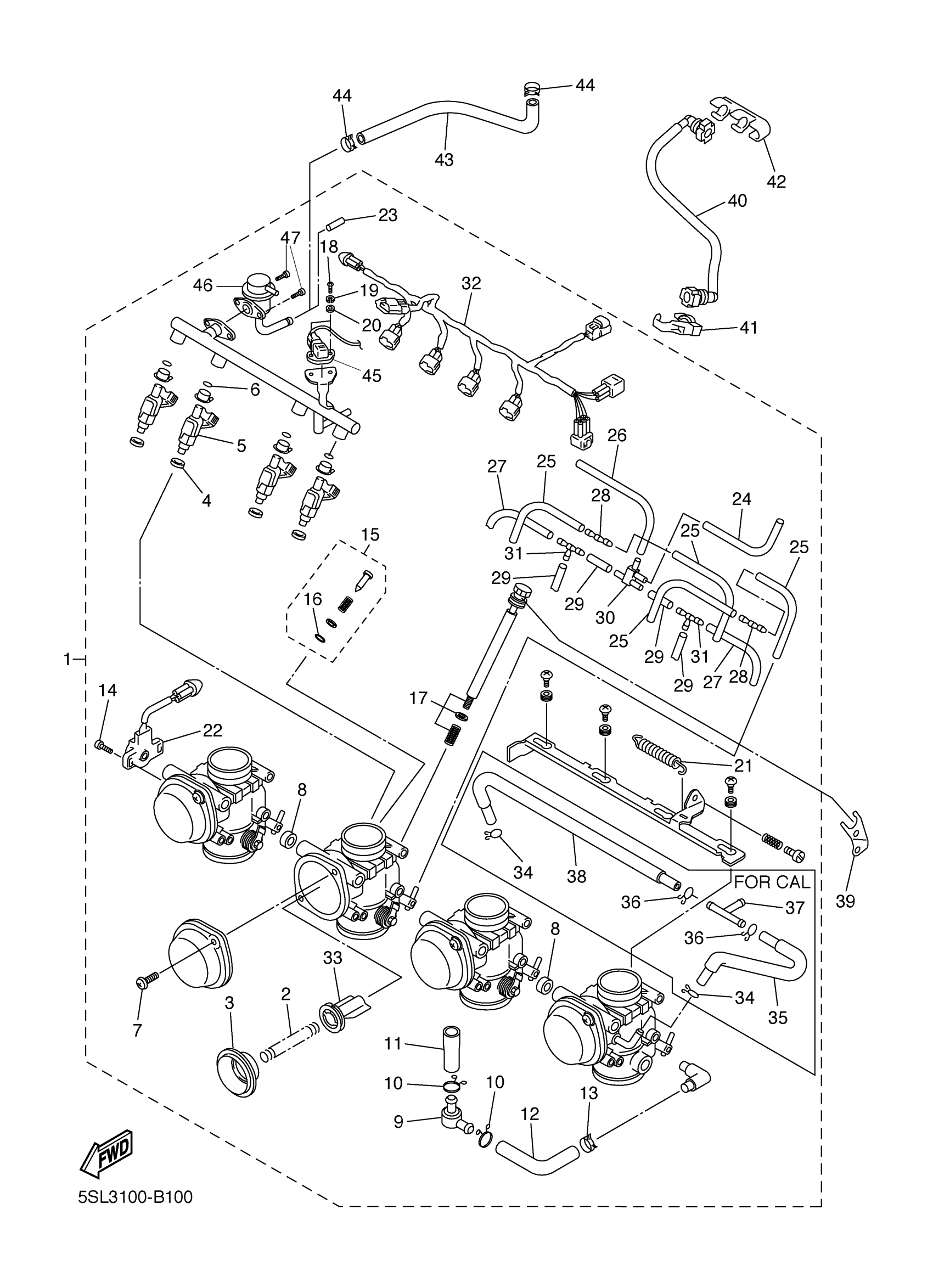

Yamaha YZFR6SRC (YZFR6 CA) 5SL8 2003 INTAKE 2 Diagram
#
1
THROTTLE BODY ASSY
5SL-13750-00-00
Unavailable
1
THROTTLE BODY ASSY
5SL-13750-10-00
Unavailable
2
. SPRING, DIAPHRAGM
4SV-14933-00-00
Unavailable
3
. DIAPHRAGM
5SL-24411-00-00
Unavailable
5
. INJECTOR
5SL-13761-00-00
Unavailable
11
. PIPE
5SL-14148-00-00
Unavailable
12
. PIPE 1
5SL-14348-00-00
Unavailable
15
AIR SCREW SET
5JW-14104-00-00
Unavailable
16
O-RING, PILOT SCREW
3H1-14147-00-00
Unavailable
17
. THROTTLE SCREW SET
5SL-14103-00-00
Unavailable
18
SCREW, PAN HEAD(JJ6)
98507-05016-00
Unavailable
19
WASHER(3SX)
92907-05100-00
Unavailable
20
WASHER(1RW)
92907-05600-00
Unavailable
21
SPRING
5JW-14589-00-00
Unavailable
22
THROTTLE SENSOR ASSY
5SL-85885-00-00
Unavailable
23
CAP
5JW-14118-00-00
Unavailable
24
PIPE
5SL-14349-00-00
Unavailable
25
PIPE
5PW-14396-00-00
Unavailable
26
PIPE
5PW-14349-00-00
Unavailable
27
. HOSE, VACUUM SENSING 4
68V-13533-00-00
Unavailable
28
NIPPLE
5PW-14251-00-00
Unavailable
29
PIPE 1
5FL-14348-10-00
Unavailable
30
CONNECTOR
5PW-1410F-00-00
Unavailable
31
. PIPE, JOINT 1
68V-24376-00-00
Unavailable
32
EXTENSION, WIRE HARNESS
5SL-82386-00-00
Unavailable
33
VALVE, THROTTLE 1
5PW-14112-00-00
Unavailable
34
CLIP
4LE-14137-00-00
Unavailable
35
PIPE
5SL-14465-01-00
Unavailable
36
CLIP
90467-100A1-00
Unavailable
37
WAY (70R)
90413-08012-00
Unavailable
38
. PIPE
5SL-14466-00-00
Unavailable
39
STAY
5SL-14413-00-00
Unavailable
40
PIPE, FUEL 1
5SL-13971-01-00
Unavailable
41
CLAMP
90464-16005-00
Unavailable
42
CLAMP
90464-16005-00
Unavailable
43
PIPE, FUEL 2
5SL-13972-01-00
Unavailable
44
CLIP
90467-12003-00
Unavailable
45
. SENSOR, PRESSURE
5JW-13750-00-00
Unavailable
46
REGULATOR, PRESSURE
5SL-13906-00-00
Unavailable
47
GASKET, EXHAUST
98507-05008-00
Unavailable
