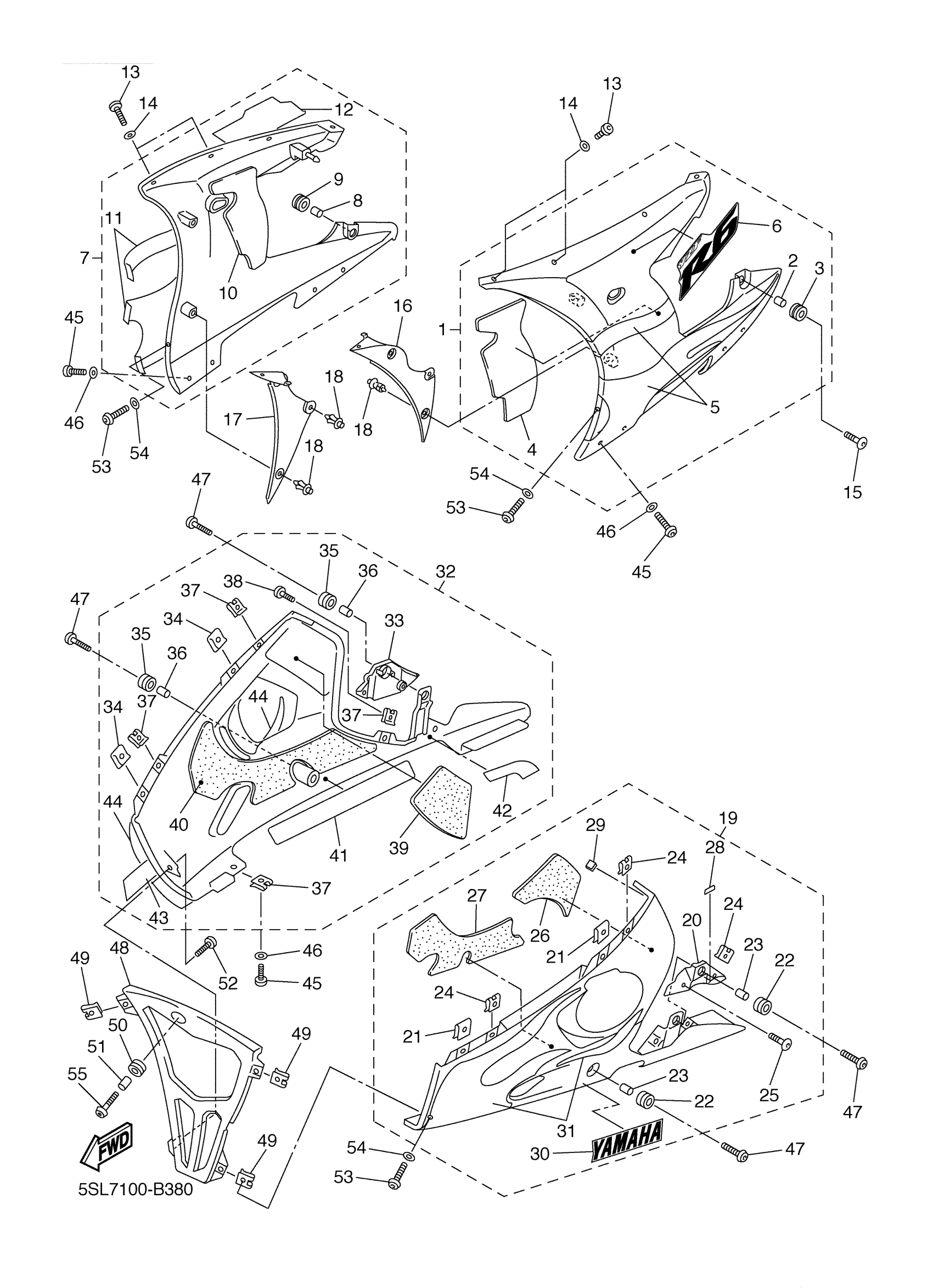

Yamaha YZFR6SRC (YZFR6 CA) 5SL8 2003 COWLING 2 Diagram
#
1
PANEL ASSEMBLY 1
5SL-Y283U-80-0X
Unavailable
4
. DAMPER, LOCATING 1
5SL-2836T-00-00
Unavailable
5
. GRAPHIC SET
5SL-283B1-A0-00
Unavailable
6
EMBLEM 1
5SL-2834C-A0-00
Unavailable
7
PANEL ASSEMBLY 2
5SL-Y283V-80-0X
Unavailable
11
. GRAPHIC SET
5SL-283B2-A0-00
Unavailable
12
EMBLEM 1
5SL-2834C-A0-00
Unavailable
16
PANEL, INNER 1
5SL-2836K-00-00
Unavailable
17
PANEL, INNER 2
5SL-2836L-00-00
Unavailable
18
RIVET
90269-06008-00
Unavailable
19
COVER ASSY, UNDER
5SL-Y2808-30-0X
Unavailable
20
COVER 3
5SL-2843J-00-00
Unavailable
21
NUT, SPRING
90183-051A0-00
Unavailable
24
NUT, SPRING(3GM)
90183-05061-00
Unavailable
25
BOLT
90111-05002-00
Unavailable
26
DAMPER 1
5SL-2834E-00-00
Unavailable
27
. DAMPER 5
5SL-2837J-00-00
Unavailable
28
PLATE, FOOTREST
1HX-27415-00-00
Unavailable
29
DAMPER
5SL-21649-00-00
Unavailable
30
EMBLEM, YAMAHA
99244-00280-00
Unavailable
31
. GRAPHIC SET, LOWER COVER 1
5SL-28301-A0-00
Unavailable
32
COVER ASSY 2, UNDE
5SL-Y2809-30-0X
Unavailable
33
COVER 4
5SL-2844J-00-00
Unavailable
34
NUT, SPRING
90183-051A0-00
Unavailable
37
NUT, SPRING(3GM)
90183-05061-00
Unavailable
38
BOLT
90111-05002-00
Unavailable
39
DAMPER
5SL-2834F-00-00
Unavailable
40
. DAMPER 6
5SL-2837K-00-00
Unavailable
41
. SEAT 1
5SL-2838G-00-00
Unavailable
42
SEAT 2
5SL-2848K-00-00
Unavailable
43
EMBLEM, YAMAHA
99244-00280-00
Unavailable
44
. GRAPHIC SET, LOWER COVER 2
5SL-28303-A0-00
Unavailable
48
PANEL, INNER 3
5SL-2836M-00-00
Unavailable
49
NUT, SPRING(3GM)
90183-05061-00
Unavailable
52
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
