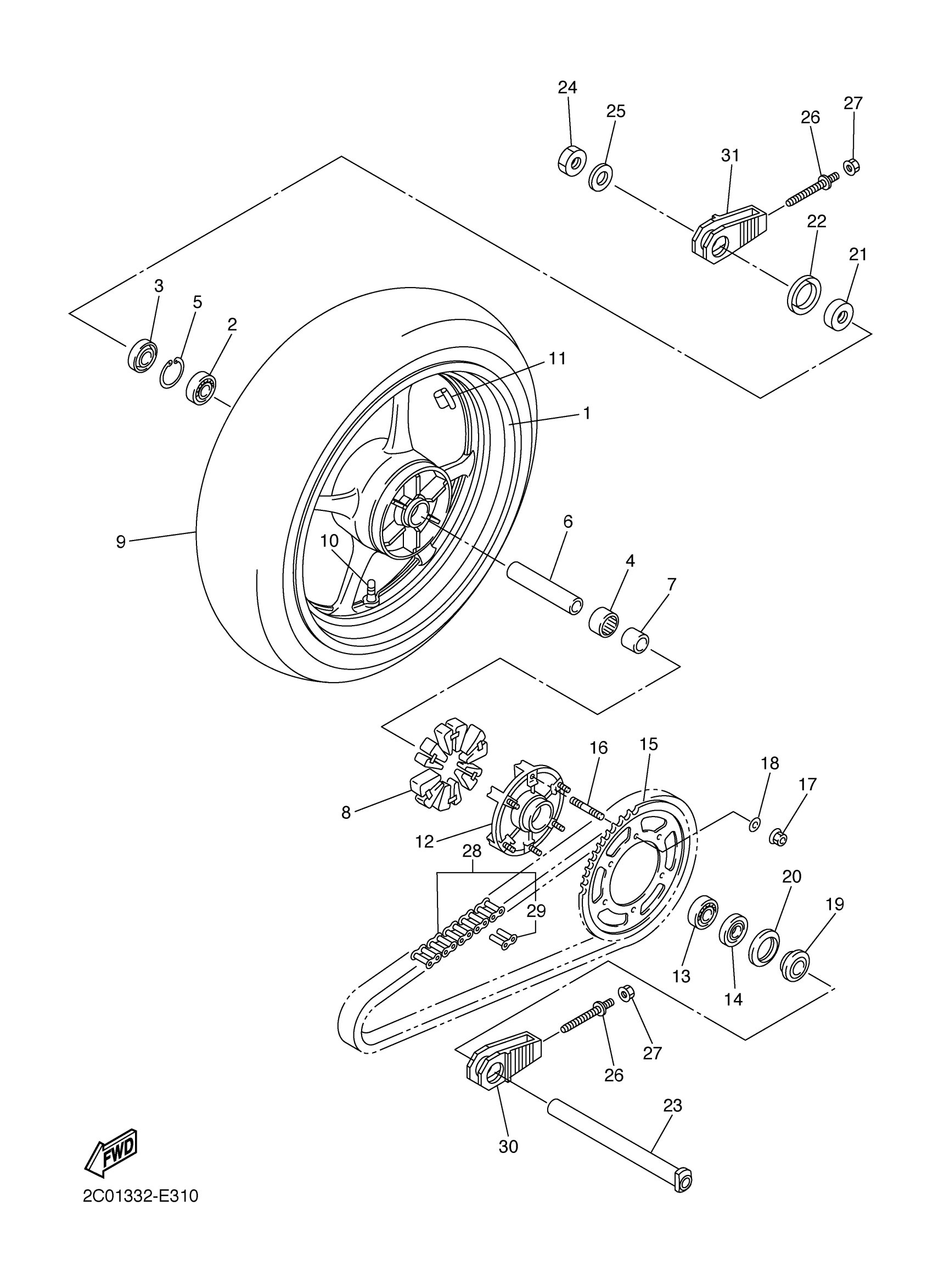

Yamaha YZFR6SPVC (YZFR6 50th Anniversary CA) 2C09 2006 REAR WHEEL Diagram

#

Description
Price

1

CAST WHEEL, REAR

5SL-25338-00-1X

Unavailable

2

BEARING(3JN)

93306-20531-00

$50.99

3

OIL SEAL

93106-40013-00

$14.99

4

BEARING

93317-43580-00

$73.99

5

CIRCLIP

93420-61M07-00

Unavailable

6

SPACER, BEARING

4XV-25317-00-00

$40.99

7

COLLAR, WHEEL

5SL-25383-00-00

$49.99

8

DAMPER

2C0-25364-00-00

$24.99

9

TIRE (180/55ZR17M/C 73W D209PT)

94118-17062-00

Unavailable

10

VALVE, RIM(2GH)

93900-00030-00

$16.99

11

BALANCER, WHEEL

5MT-25398-00-00

$17.49

11

BALANCER, WHEEL

5MT-25398-10-00

$17.49

11

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

12

CLUTCH, HUB

5SL-25366-00-00

$275.99

13

BEARING(3JN)

93306-20531-00

$50.99

14

OIL SEAL

93106-40013-00

$14.99

15

SPROCKET, DRIVEN (45T)

2C0-25445-20-00

Unavailable

16

BOLT, STUD(1TX)

90116-10485-00

Unavailable

17

NUT, SELF-LOCKING

90185-10009-00

Unavailable

18

WASHER, PLATE

90201-10021-00

Unavailable

19

COLLAR

90387-28019-00

Unavailable

20

COVER, HUB DUST

5SL-25367-00-00

Unavailable

21

COLLAR

90387-28019-00

Unavailable

22

COVER, PLATE

5SL-25327-00-00

Unavailable

23

AXLE, WHEEL

2C0-25381-10-00

Unavailable

24

NUT, SELF-LOCKING

90185-24007-00

Unavailable

25

WASHER, PLATE

90201-25020-00

Unavailable

26

BOLT, CHAIN PULLAR

2C0-25379-00-00

Unavailable

27

NUT, U FLANGE(4KG)

95604-08200-00

Unavailable

28

CHAIN DID 525VS-114L

94582-21114-00

Unavailable

29

JOINT, CHAIN

94682-21031-00

Unavailable

30

PULLER, CHAIN 1

2C0-25388-00-00

Unavailable

31

PULLER, CHAIN 2

2C0-25389-00-00

Unavailable
