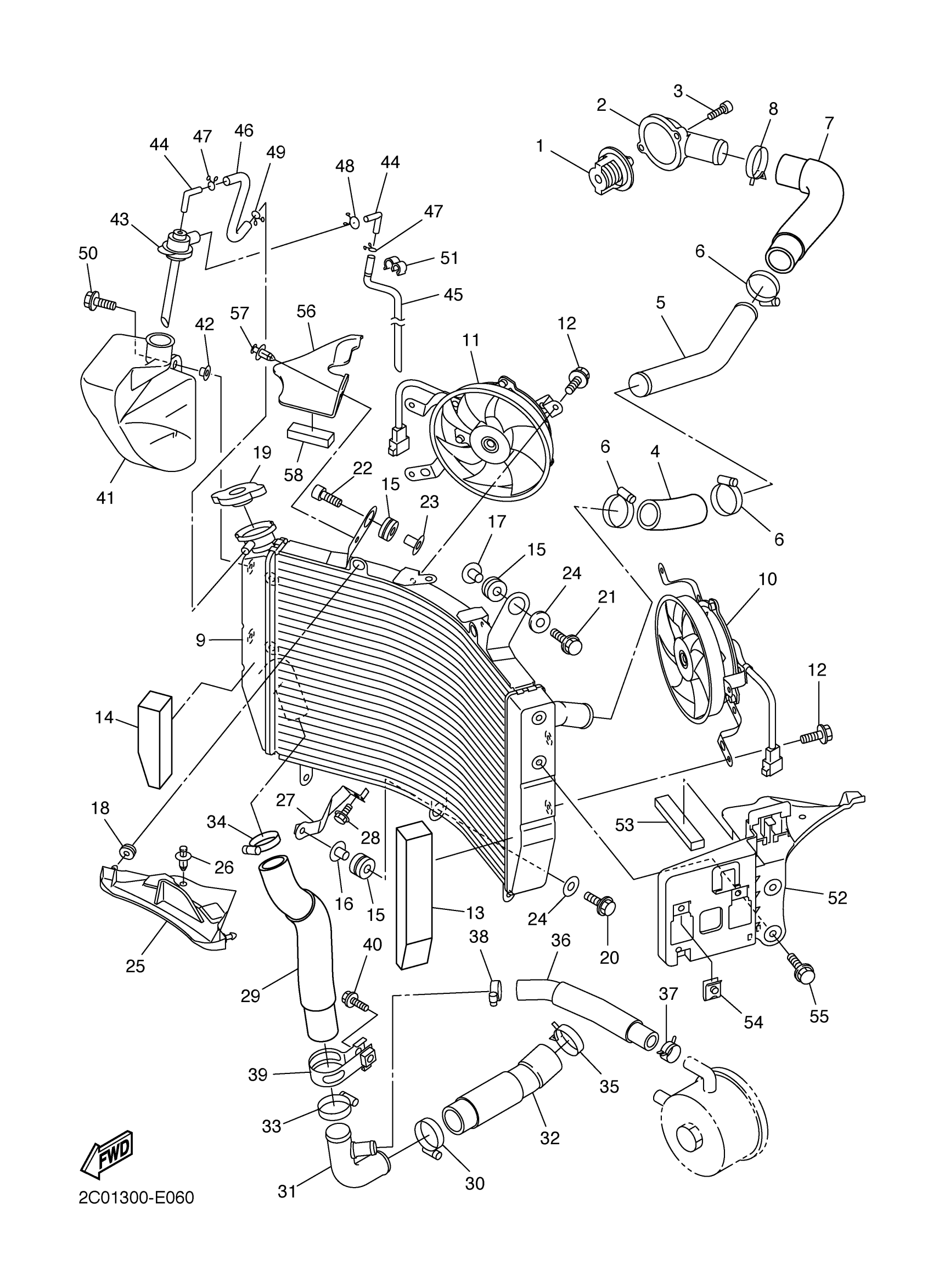

Yamaha YZFR6SPVC (YZFR6 50th Anniversary CA) 2C09 2006 RADIATOR HOSE Diagram

#

Description
Price

1

THERMOSTAT ASSY

5SL-12410-01-00

$46.68

2

COVER, THERMOSTAT

2C0-12413-00-00

$22.89

3

BOLT,SOCKET HEAD

91314-06020-00

$1.91

4

HOSE 3

2C0-12578-01-00

$3.65

5

PIPE 1

2C0-12481-00-00

$46.67

6

HOSE CLAMP ASSY

90450-35001-00

$4.90

7

HOSE 8

2C0-12552-00-00

$32.80

8

CLIP

90467-29174-00

Unavailable

9

RADIATOR ASSY

2C0-12461-00-00

$566.00

10

BLOWER ASSY

2C0-12405-00-00

Unavailable

11

BLOWER ASSY

2C0-12405-10-00

Unavailable

12

BOLT, BLOWER HOLDING

5GJ-12675-00-00

$6.22

13

DAMPER, AIR SHROUD 2

2C0-12659-00-00

$6.33

14

DAMPER, AIR SHROUD 3

2C0-12668-00-00

$6.29

15

GROMMET (29L)

90480-15363-00

$5.75

16

COLLAR 437216330000

90387-07391-00

Unavailable

17

COLLAR

90387-0614M-00

Unavailable

18

GROMMET

90480-11005-00

Unavailable

19

CAP, RADIATOR

5SL-12462-01-00

Unavailable

20

BOLT, FLANGE

90105-06040-00

Unavailable

21

BOLT, FLANGE

95817-06035-00

Unavailable

22

BOLT,SOCKET

91317-06035-00

$3.27

23

COLLAR

90387-0614M-00

Unavailable

24

WASHER, PLATE(36Y)

90201-063J2-00

Unavailable

25

PLATE

2C0-12535-00-00

Unavailable

26

RIVET

90269-07007-00

Unavailable

27

BRACKET 1

2C0-1244E-00-00

Unavailable

28

BOLT, FLANGE

95817-06012-00

Unavailable

29

HOSE 4

2C0-12579-00-00

Unavailable

30

HOSE CLAMP ASSY

90450-35001-00

$4.90

31

JOINT, HOSE 2

2C0-12582-00-00

Unavailable

32

HOSE 7

2C0-12551-00-00

Unavailable

33

HOSE CLAMP ASSY

90450-35001-00

$4.90

34

HOSE CLAMP ASSY

90450-35001-00

$4.90

35

CLIP

90467-310A0-00

Unavailable

36

HOSE 6

2C0-12589-00-00

Unavailable

37

CLIP

90467-200A0-00

$7.40

38

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

39

CLAMP 1

2C0-12491-00-00

Unavailable

40

BOLT, FLANGE

95027-10020-00

$2.41

41

TANK, RECOVERY

2C0-21871-00-00

Unavailable

42

COLLAR (8G8)

90387-06681-00

Unavailable

43

CAP

2C0-21875-00-00

Unavailable

44

ELBOW

26H-21828-00-00

Unavailable

45

PIPE 1

2C0-21816-01-00

Unavailable

46

HOSE,3

2C0-1243F-00-00

Unavailable

47

CLIP 101235600

90467-08003-00

Unavailable

48

CLIP

90467-10M04-00

$5.71

49

CLIP 101235600

90467-08003-00

Unavailable

50

BOLT, FLANGE

95817-06014-00

Unavailable

51

CLAMP(6R8)

90464-10M38-00

Unavailable

52

BRACKET 5

2C0-2836H-00-00

Unavailable

53

DAMPER

2C0-2139X-00-00

Unavailable

54

NUT, SPRING(4ES)

90183-06069-00

$5.69

55

BOLT, FLANGE

95817-06014-00

Unavailable

56

COVER 5

2C0-1246H-00-00

Unavailable

57

RIVET

90269-06001-00

Unavailable

58

DAMPER 2

2C0-2139U-00-00

Unavailable
