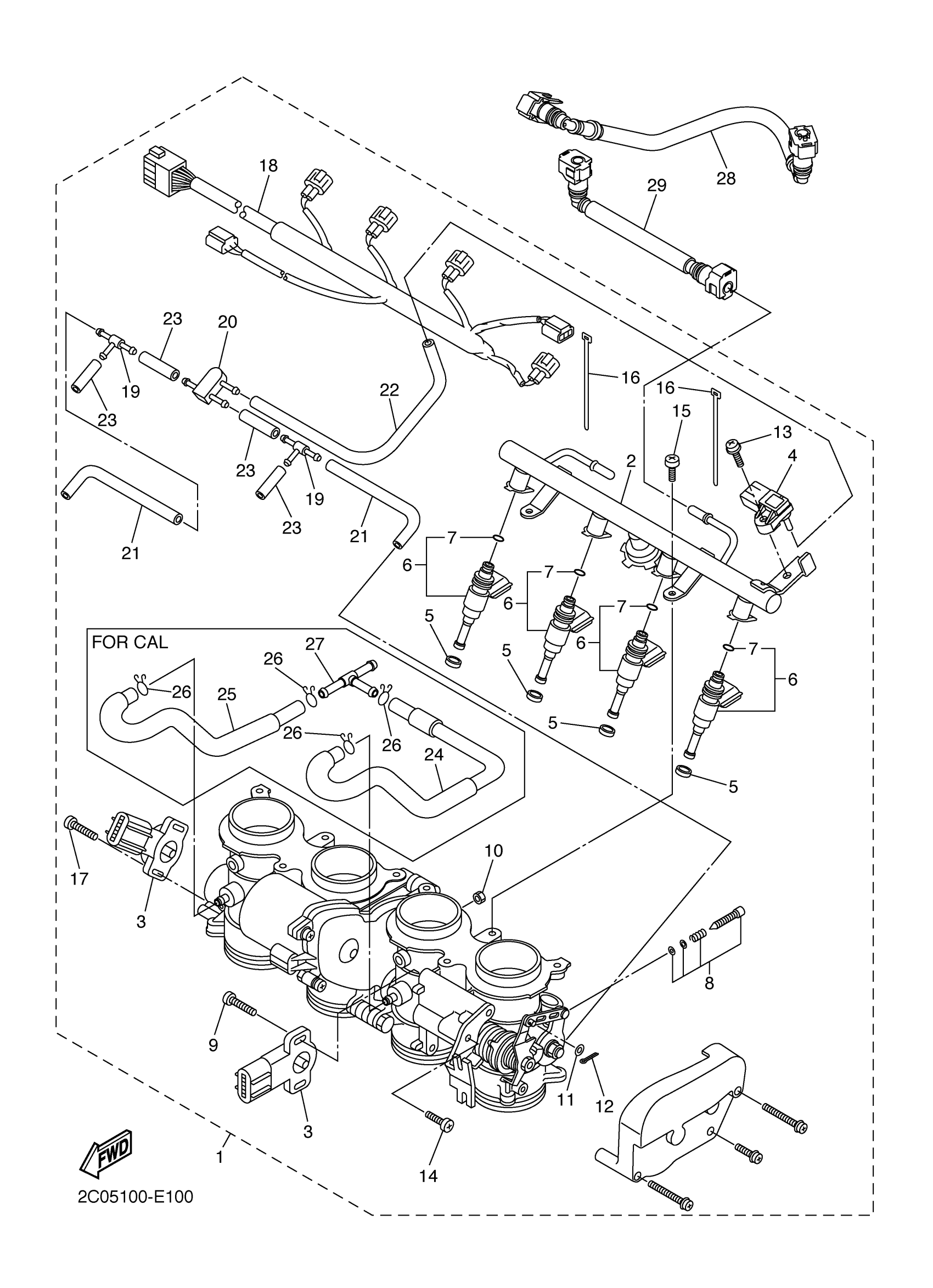

Yamaha YZFR6SPVC (YZFR6 50th Anniversary CA) 2C09 2006 INTAKE 2 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

2C0-13750-00-00

Unavailable

1

THROTTLE BODY ASSY

2C0-13750-10-00

Unavailable

2

. DELIVERY PIPE ASSY 1

2C0-13930-00-00

Unavailable

3

THROTTLE SENSOR ASSY

2C0-85885-00-00

$348.99

4

SENSOR, PRESSURE

1WS-82380-00-00

$193.99

5

GASKET, MANIFOLD

8FP-13556-00-00

$13.99

6

INJECTOR ASSY

2C0-13761-00-00

$320.99

7

O-RING

5PS-14147-00-00

$13.49

8

PILOT SCREW SET

2C0-14105-00-00

$34.99

9

SCREW

5FL-14216-00-00

$6.99

10

NUT(4CH)

95307-04700-00

Unavailable

11

WASHER

22U-14952-00-00

$6.99

12

PIN, COTTER

91492-12010-00

$3.35

13

SCREW

2C0-14216-00-00

$3.28

14

SCREW, PAN

98517-05012-00

$4.73

15

SCREW, PAN

98517-06012-00

Unavailable

16

CLIP

4KM-14137-00-00

Unavailable

17

SCREW

8CC-14216-10-00

Unavailable

18

. EXTENSION, WIRE HARNESS

2C0-82386-00-00

Unavailable

19

. PIPE, JOINT 1

68V-24376-00-00

Unavailable

20

NIPPLE

3XV-14251-00-00

Unavailable

21

. HOSE, VACUUM SENSING 4

68V-13533-00-00

Unavailable

22

HOSE, VACUUM SENSING 3

2C0-13532-00-00

Unavailable

23

PIPE 1

5FL-14348-10-00

Unavailable

24

. PIPE

2C0-14465-00-00

Unavailable

25

. PIPE

2C0-14466-00-00

Unavailable

26

CLIP

90467-090A2-00

Unavailable

27

WAY (70R)

90413-08012-00

Unavailable

28

PIPE, FUEL 1

2C0-13971-01-00

Unavailable

29

PIPE, FUEL 2

2C0-13972-00-00

Unavailable
