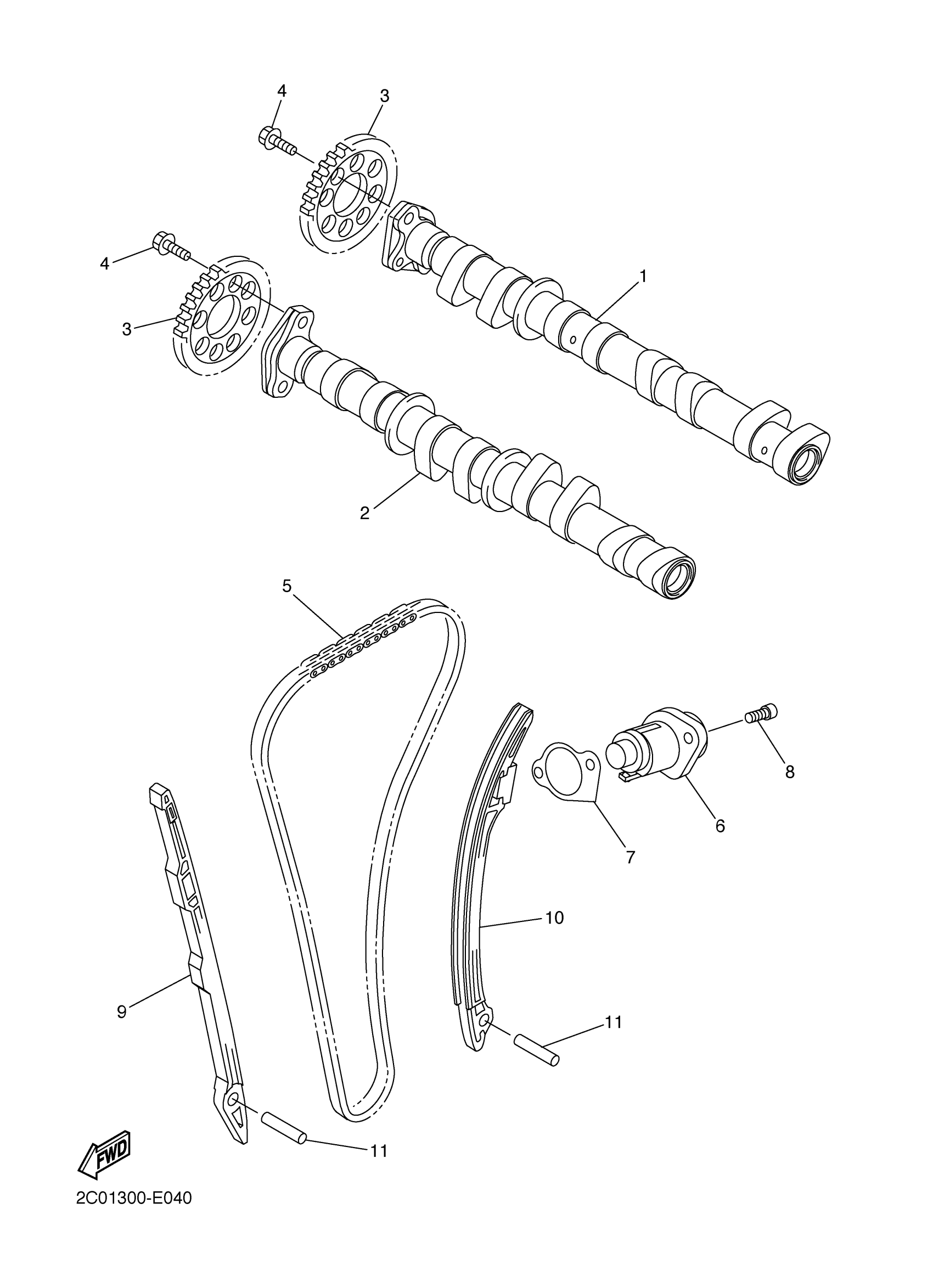

Yamaha YZFR6SPVC (YZFR6 50th Anniversary CA) 2C09 2006 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

13S-12170-01-00

$405.02

2

CAMSHAFT ASSY 2

13S-12180-01-00

$404.92

3

SPROCKET, CAM CHAI

BAT-12176-00-00

$48.47

4

BOLT, FLANGE

90105-07004-00

$4.66

5

CHAIN

94591-64118-00

$56.93

6

TENSIONER ASSY, CA

13S-12210-02-00

Unavailable

7

GASKET, TENSIONER CASE

2C0-12213-00-00

$6.29

8

BOLT, HEXAGON SOCKET HEAD

90110-06106-00

$5.90

9

DAMPER, CHAIN 1

2C0-12251-00-00

$28.80

10

DAMPER, CHAIN 2

2C0-12252-01-00

Unavailable

11

PIN, DOWEL (8V8)

93607-44190-00

$13.30
