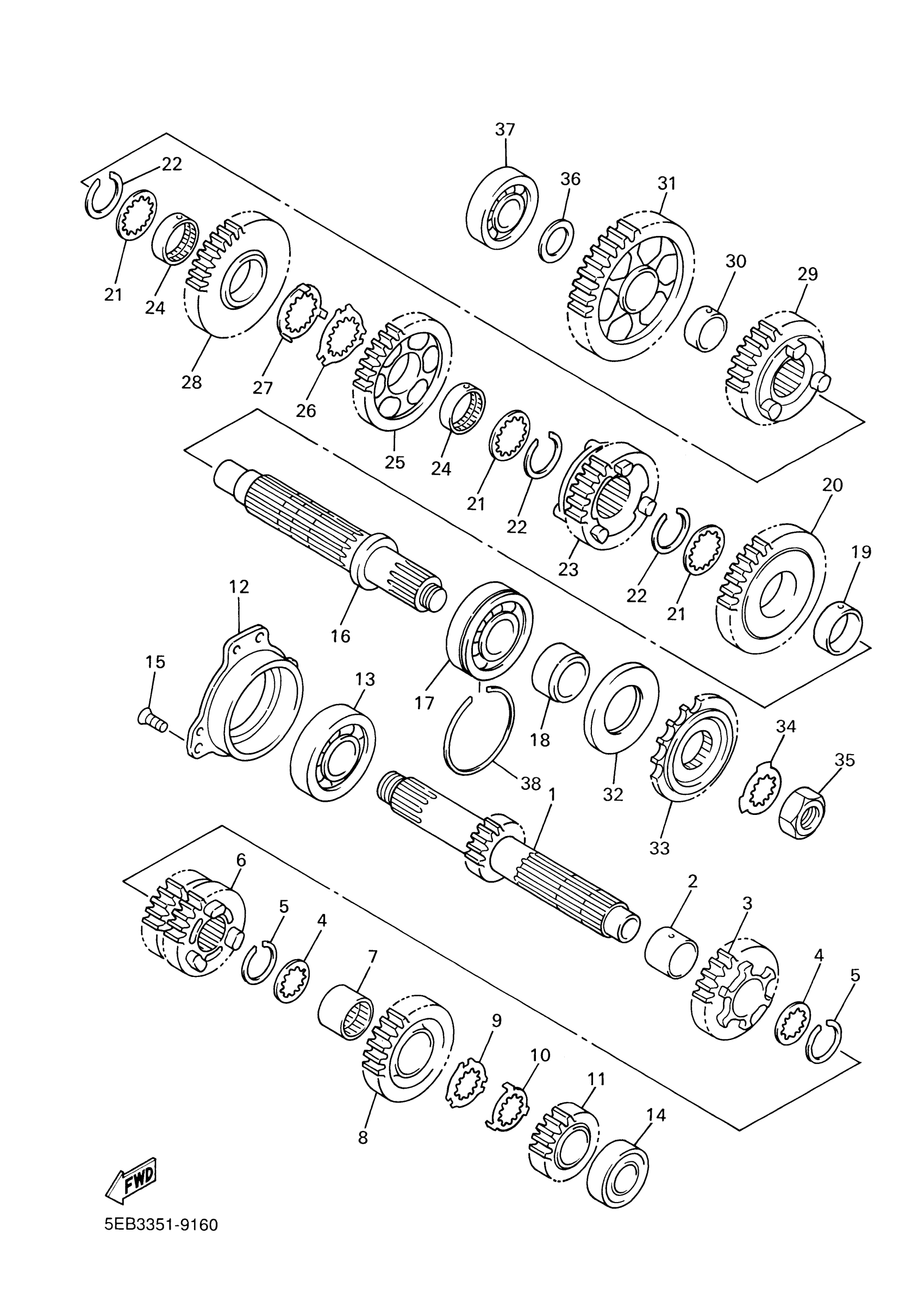

Yamaha YZFR6SNC (YZFR6 CHAMPIONS LIMITED EDITION CA) 5MT9 2001 TRANSMISSION Diagram

AXLE, MAIN (13T)

5EB-17401-00-00

Unavailable

COLLAR(1FN)

90387-253M6-00

Unavailable

GEAR, 5TH PINION (21T)

5MT-17151-00-00

Unavailable

WASHER(3VD)

90209-21332-00

$7.49

CIRCLIP (4L0)

93440-25084-00

$5.60

GEAR, 3RD/4TH PINION (18T/24T)

5EB-17131-00-00

Unavailable

COLLAR

90387-2513E-00

Unavailable

GEAR, 6TH PINION (24T)

5EB-17161-00-00

Unavailable

WASHER

90209-22352-00

$20.99

WASHER

90209-21351-00

$12.49

GEAR, 2ND PINION

5EB-17121-00-00

Unavailable

HOUSING, BEARING 1

5EB-15163-01-00

Unavailable

BEARING (3Y1)

93306-30525-00

$63.99

BEARING(3LD)

93306-20464-00

Unavailable

SCREW, COUNTERSUNK (4H7)

90151-06014-00

Unavailable

AXLE, DRIVE

5SL-17421-00-00

Unavailable

BEARING (B6305A5 SPECIAL)(1AE)

93306-30546-00

Unavailable

COLLAR(4JH)

90387-2504A-00

Unavailable

COLLAR

90387-2813C-00

Unavailable

GEAR, 2ND WHEEL

5EB-17221-00-00

Unavailable

WASHER

90209-25342-00

Unavailable

CIRCLIP (2H7)

93440-28062-00

Unavailable

GEAR, 6TH WHEEL (26T)

5MT-17261-00-00

Unavailable

COLLAR

90387-2813D-00

Unavailable

GEAR, 4TH WHEEL (32T)

5EB-17241-00-00

Unavailable

WASHER

90209-25349-00

Unavailable

WASHER

90209-25350-00

Unavailable

GEAR, 3RD WHEEL

5EB-17231-00-00

Unavailable

GEAR, 5TH WHEEL (25T)

5MT-17251-00-00

Unavailable

COLLAR

90387-2202V-00

Unavailable

GEAR, 1ST WHEEL (37T)

5EB-17211-00-00

Unavailable

OIL SEAL(3GM)

93102-35423-00

Unavailable

SPROCKET,DRIVE 16T(2GH1746160)

2GH-17460-00-00

Unavailable

WASHER, LOCK(3LD)

90215-21290-00

Unavailable

NUT 152174630000

90179-18020-00

Unavailable

WASHER PLATE 168171160000

90201-20278-00

Unavailable

BEARING(3LD)

93306-20464-00

Unavailable

CIRCLIP

278-17424-01-00

Unavailable
