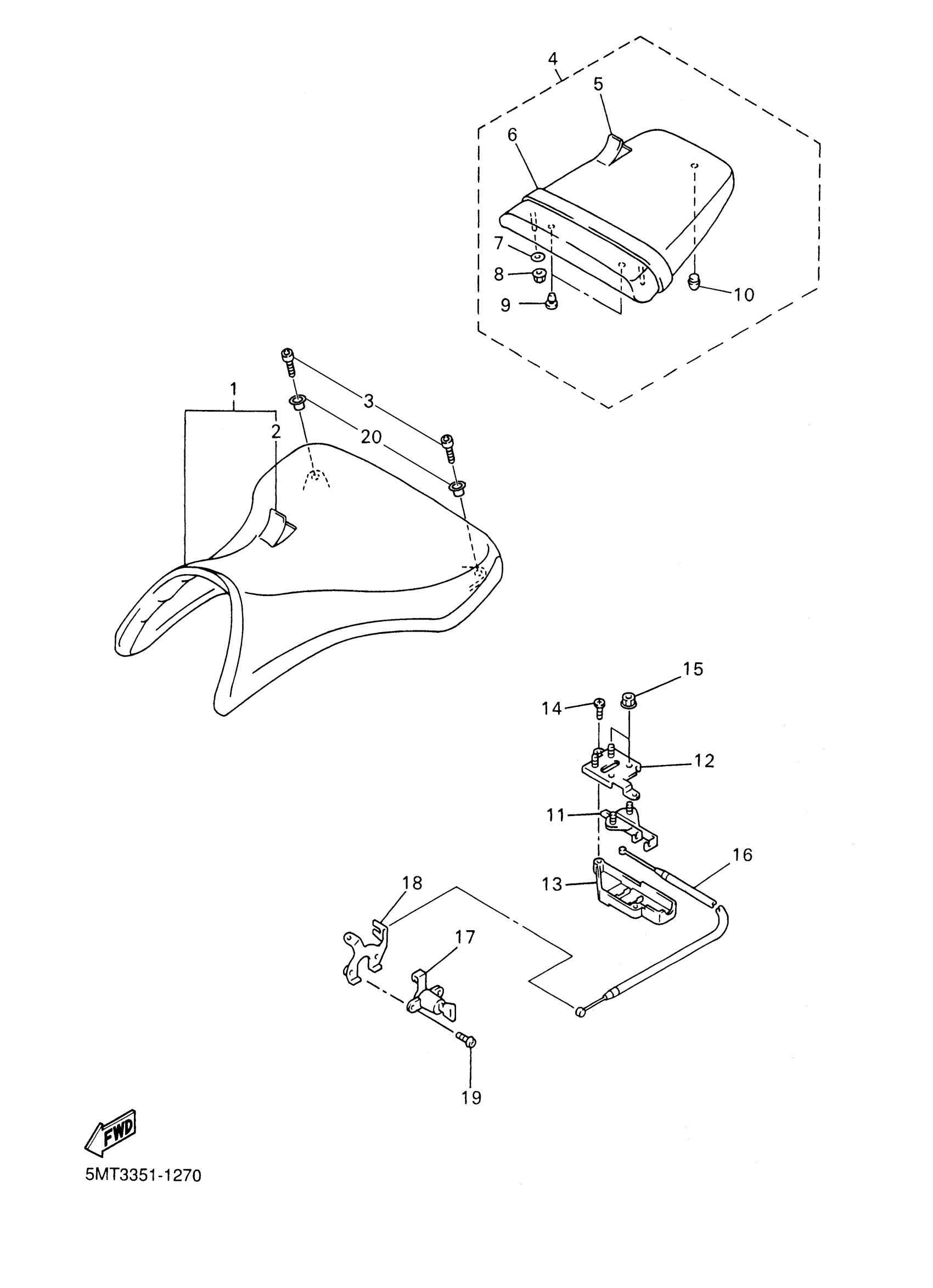

Yamaha YZFR6SNC (YZFR6 CHAMPIONS LIMITED EDITION CA) 5MT9 2001 SEAT Diagram

SINGLE SEAT ASSY

5EB-24710-00-00

Unavailable

. COVER, SEAT

5EB-2470F-00-00

Unavailable

BOLT, HEXAGON SOCKET HEAD

90110-06258-00

$9.49

TANDEM SEAT ASSY

5MT-24750-02-00

Unavailable

COVER, TANDEM SEAT

5EB-24751-00-00

Unavailable

. SEAT BAND ASSY

5MT-24720-00-00

Unavailable

WASHER, PLATE

90201-06M02-00

Unavailable

NUT, FLANGE(7NB)

95780-06500-00

$2.60

PLUG(1NL)

90338-07180-00

$7.49

PLUG

90338-07018-00

$7.49

SEAT LOCK ASSY

4BP-24780-00-00

$97.99

PLATE

5JJ-24792-01-00

Unavailable

COVER,2

5JJ-2475X-01-00

$6.99

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

NUT, FLANGE(4MV)

95707-06500-00

$1.23

CABLE, SEAT LOCK

5MT-2478E-00-00

Unavailable

SEAT LOCK ASSY

3CK-W2470-00-00

Unavailable

STAY, LOCK

4XV-2117K-00-00

Unavailable

SCREW(4HM)

90149-06308-00

Unavailable

COLLAR

90387-06066-00

Unavailable
