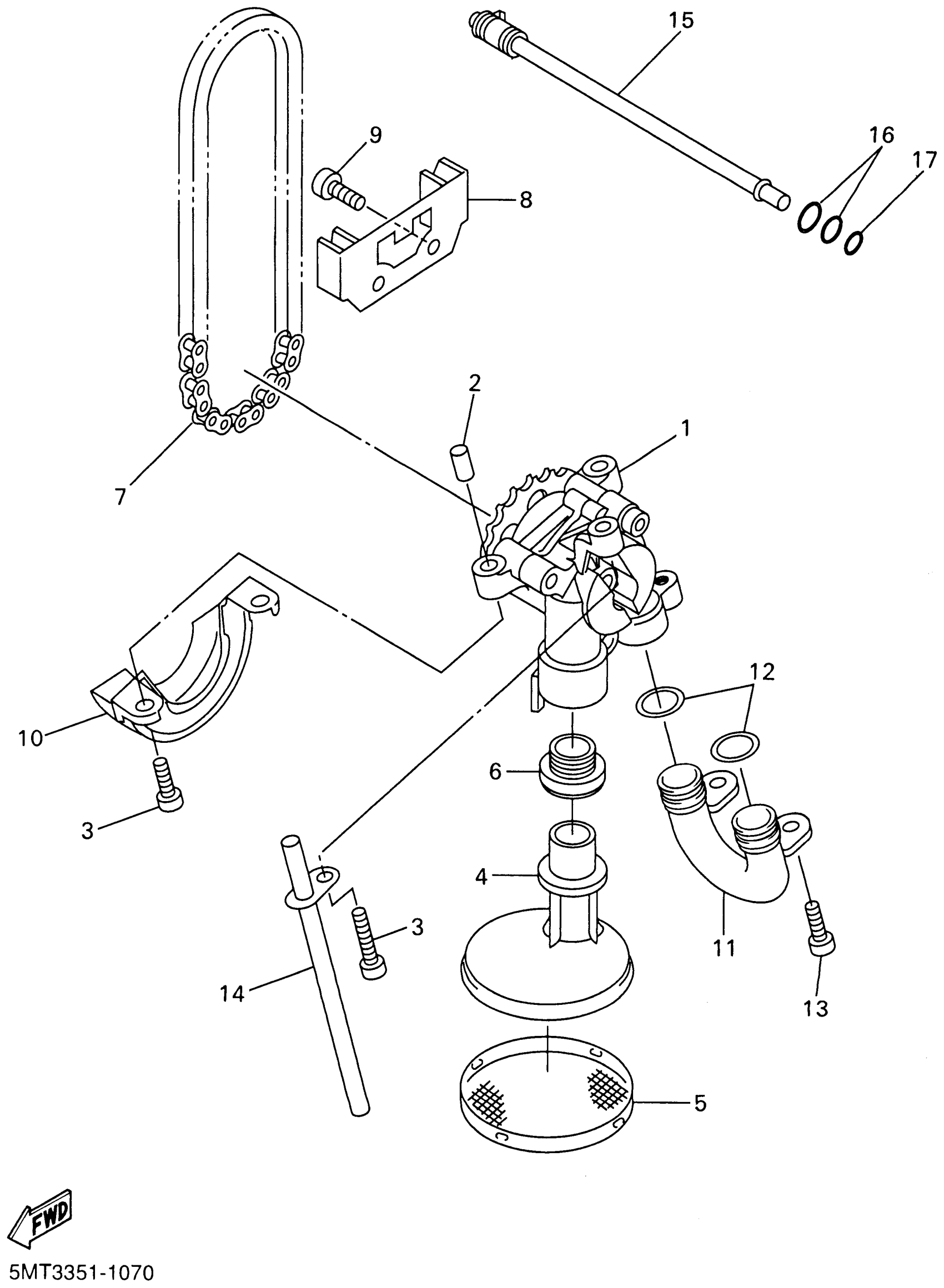

Yamaha YZFR6SNC (YZFR6 CHAMPIONS LIMITED EDITION CA) 5MT9 2001 OIL PUMP Diagram

OIL PUMP ASSY

5MT-13300-00-00

Unavailable

PIN, DOWEL

99530-08012-00

Unavailable

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

HOUSING, STRAINER

5EB-13412-00-00

Unavailable

STRAINER, OIL

5EB-13411-00-00

Unavailable

SEAL, OIL STRAINER

5EB-13415-00-00

Unavailable

CHAIN

94580-25080-00

Unavailable

HOLDER

5EB-13898-00-00

Unavailable

BOLT,SOCKET

91317-06016-00

$1.25

COVER, PUMP GEAR

5MT-13327-00-00

$37.99

PIPE, OIL 1

5MT-13416-00-00

Unavailable

O-RING (26H)

93210-14579-00

$7.49

BOLT,SOCKET

91317-06012-00

$8.49

PIPE, DELIVERY 1

5EB-13161-00-00

Unavailable

PIPE, DELEVERY 5

5EB-1316E-00-00

$67.99

O-RING (1J7)

93210-09350-00

Unavailable

O-RING(26H)

93210-06667-00

Unavailable
