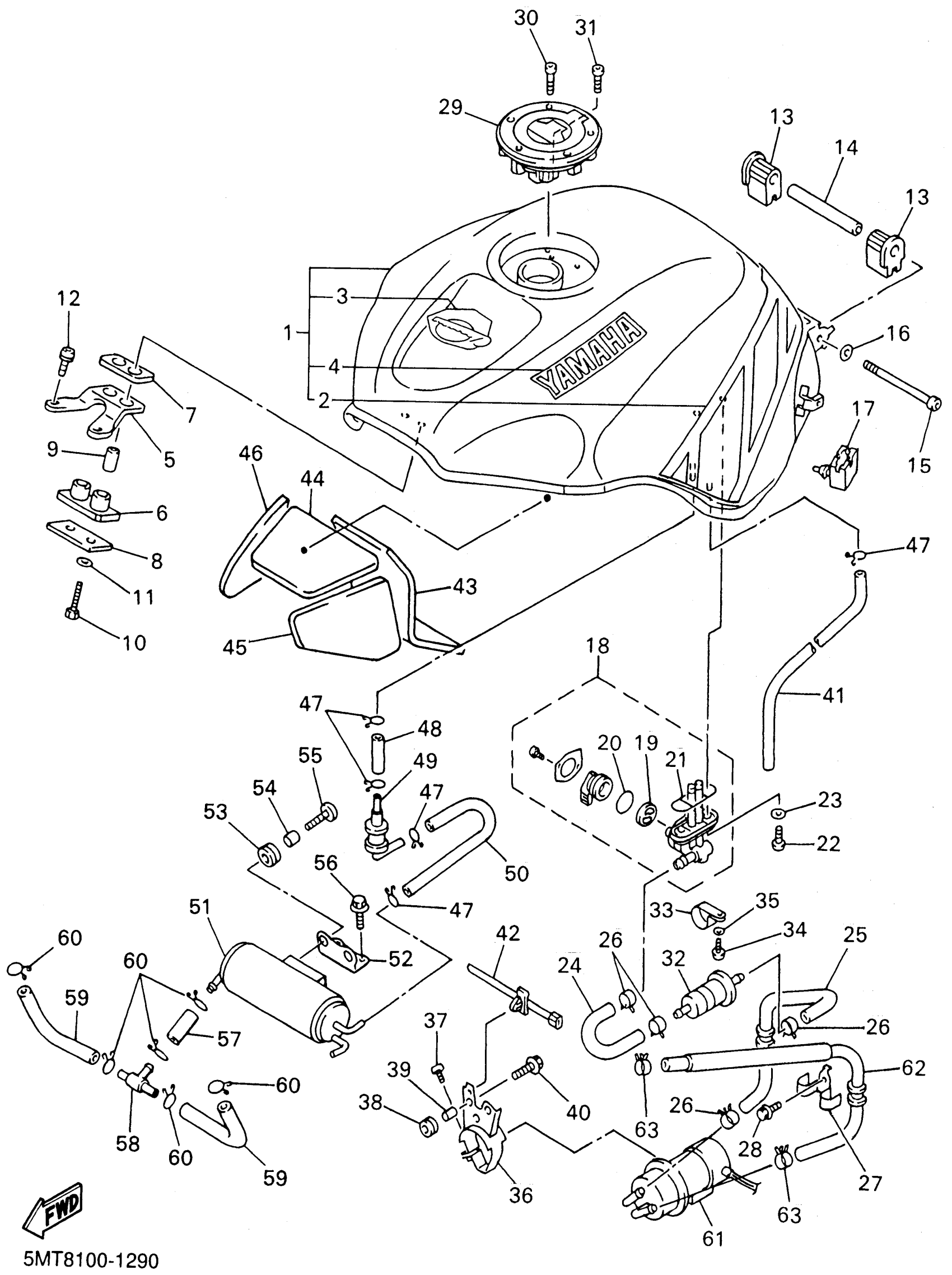

Yamaha YZFR6SNC (YZFR6 CHAMPIONS LIMITED EDITION CA) 5MT9 2001 FUEL TANK CA Diagram

#

Description
Price

1

FUEL TANK COMP. (BLUISH WHITE COCKTAIL 1) (DEEP PURPLISH BLUE METALLIC C)

5EB-Y2410-30-09

Unavailable

2

. GRAPHIC, FUEL TANK 1

5MT-24244-00-00

Unavailable

3

. EMBLEM 1

5MT-24161-00-00

Unavailable

4

. EMBLEM, YAMAHA

4TV-2153A-40-00

Unavailable

5

BRACKET, FUEL TANK 1

5MT-24191-00-00

Unavailable

6

DAMPER, LOCATING 1

5EB-24181-00-00

Unavailable

7

DAMPER, LOCATING 3

2GH-24183-00-00

Unavailable

8

WASHER, SPECIAL

2GH-24186-00-00

Unavailable

9

COLLAR 849833160000

90387-06027-00

$8.49

10

BOLT, HEXAGON

97017-06030-00

$3.61

11

WASHER(6TA)

92907-06600-00

$2.72

12

SCREW, WITH WASHER

90159-06005-00

$8.49

13

DAMPER, LOCATING 3

5EB-24183-00-00

Unavailable

14

COLLAR(JF3)

90387-061W6-00

Unavailable

15

BOLT, SOCKET

91317-06090-00

$4.24

16

. WASHER, PLATE

90201-06050-00

Unavailable

17

DAMPER, LOCATING 2

5EB-24182-00-00

Unavailable

18

FUEL COCK ASSY 1

4TV-24500-00-00

Unavailable

19

VALVE

3XV-24523-00-00

Unavailable

20

SEAL, COCK

3XV-24534-00-00

Unavailable

21

O-RING

4X8-24512-00-00

Unavailable

22

SCREW 366241430000

90149-06008-00

Unavailable

23

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

24

PIPE, FUEL 1

5EB-24311-00-00

Unavailable

25

PIPE 2

5EB-24312-00-00

Unavailable

26

CLIP (5K4)

90467-14057-00

Unavailable

27

CLAMP 1

5EB-2417H-00-00

Unavailable

28

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

29

CAP ASSY

39P-24602-00-00

Unavailable

30

BOLT, HEXAGON SOCKET HEAD(1FM)

90110-05112-00

Unavailable

31

BOLT, SOCKET

91317-05010-00

Unavailable

32

FILTER ASSY

4TV-24560-00-00

Unavailable

33

CLAMP, FUEL PIPE 1

4BR-24366-00-00

Unavailable

34

SCREW, PAN

98517-06012-00

Unavailable

35

WASHER(6TA)

92907-06600-00

$2.72

36

BRACKET, FUEL PUMP

5EB-24491-00-00

Unavailable

37

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

38

GROMMET (1E5)

90480-13163-00

Unavailable

39

COLLAR(47X)

90387-060G7-00

Unavailable

40

BOLT, WITH WASHER (30X)

90119-06096-00

Unavailable

41

HOSE (L730)

90445-105K7-00

Unavailable

42

CLAMP(2TV)

90464-10112-00

Unavailable

43

DAMPER, PLATE 3

5EB-2414K-00-00

Unavailable

44

DAMPER, PLATE 1

5EB-2414H-00-00

Unavailable

45

DAMPER, SIDE COVER

5EB-2411J-00-00

Unavailable

46

DAMPER, PLATE 2

5EB-2414J-00-00

Unavailable

47

CLIP

90467-100A1-00

Unavailable

48

PIPE 10

4DU-24321-00-00

Unavailable

49

ROLL OVER VALVE ASSY

3UH-24180-00-00

Unavailable

50

PIPE 4

5GV-24314-00-00

Unavailable

51

CANISTER ASSY

5GV-24170-00-00

Unavailable

52

BRACKET, CANISTOR

5GV-2419F-00-00

Unavailable

53

GROMMET (462)

90480-13018-00

Unavailable

54

COLLAR(42G)

90387-062L2-00

Unavailable

55

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

Unavailable

56

BOLT, FLANGE(4DU)

95027-06014-00

Unavailable

57

HOSE (L45)

90445-113K0-00

Unavailable

58

PIPE, JOINT

3H3-24376-00-00

Unavailable

59

PIPE

5GV-14465-00-00

Unavailable

60

CLIP

90467-100A1-00

Unavailable

61

FUEL PUMP COMP.

5EB-13907-02-00

Unavailable

62

HOSE

5EB-14294-00-00

Unavailable

63

CLIP (7K7)

90467-11044-00

Unavailable
