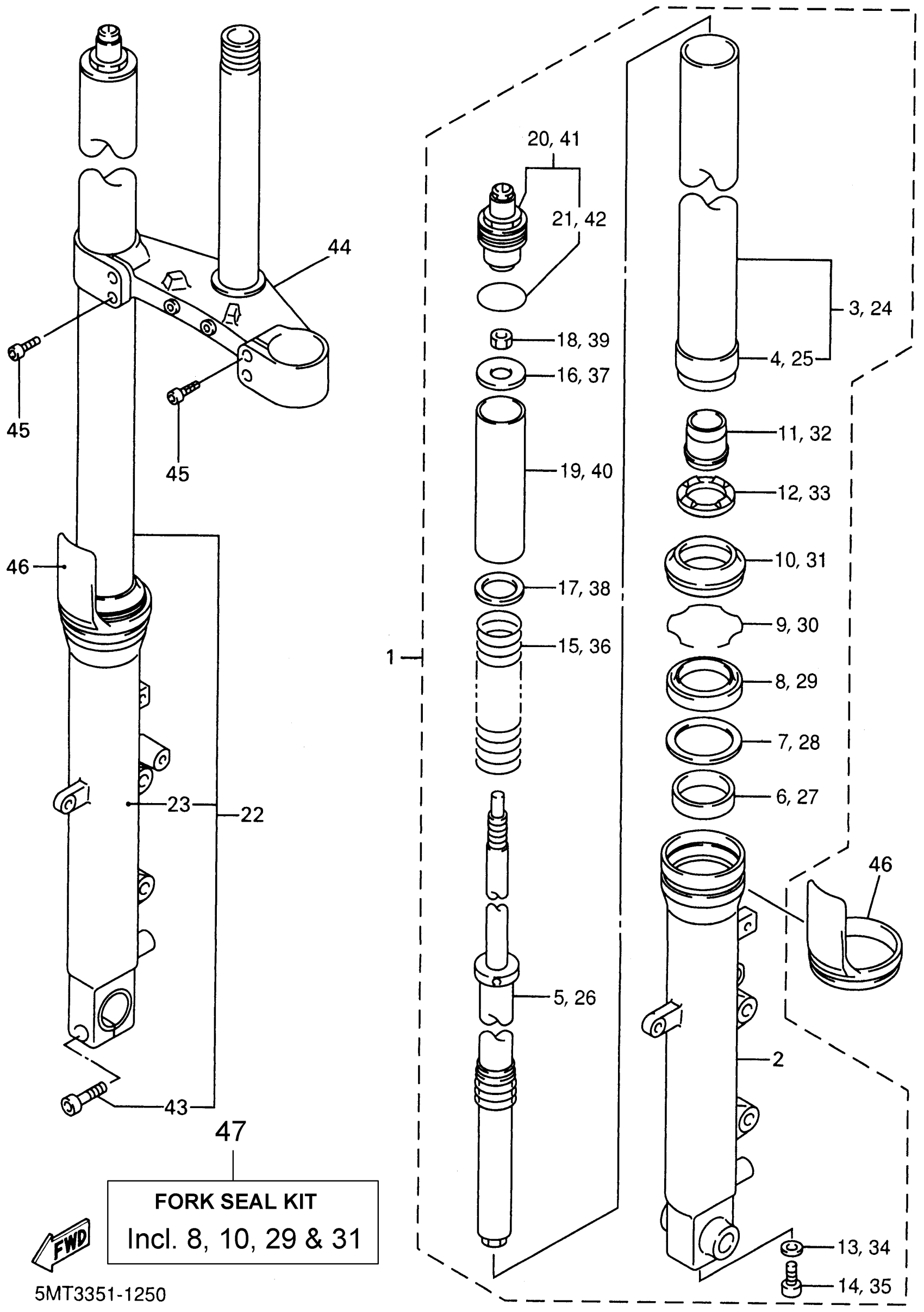

Yamaha YZFR6SNC (YZFR6 CHAMPIONS LIMITED EDITION CA) 5MT9 2001 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

5MT-23102-01-00

Unavailable

2

. TUBE, OUTER (LEFT)

5MT-23126-00-00

Unavailable

3

. INNER TUBE COMP1

5MT-23110-00-00

Unavailable

4

PISTON, FRONT FORK

5EB-23171-00-00

$34.99

5

. CYLINDER COMP, FRONT FORK

5MT-23170-00-00

Unavailable

6

METAL, SLIDE 1

5EB-23125-00-00

$32.99

7

WASHER

4V4-23146-L0-00

$6.99

8

OIL SEAL

4PU-23145-01-00

$25.99

9

RING, SNAP

4V4-23153-L0-00

$9.99

10

SEAL, DUST

4PU-23144-00-00

$24.99

11

. SPINDLE, TAPER

5MT-23173-00-00

Unavailable

12

RUBBER

5MT-23195-00-00

Unavailable

13

GASKET

2K8-23158-L0-00

$15.49

14

BOLT, HEXAGON SOCKET HEAD

3LC-23181-00-00

$28.99

15

SPRING, FRONT FORK

5MT-23141-00-00

Unavailable

16

. WASHER, SPRING UPPER

3TJ-23149-10-00

Unavailable

17

WASHER, SPRING UPPER

3LR-23149-00-00

Unavailable

18

NUT

3LC-23357-00-00

Unavailable

19

SPACER

5MT-23118-00-00

Unavailable

20

. BOLT, CAP

5MT-23111-00-00

Unavailable

21

O-RING

4V4-23188-L1-00

Unavailable

22

FRONT FORK ASSY (R.H)

5MT-23103-01-00

Unavailable

23

. TUBE, OUTER (RIGHT)

5MT-23136-00-00

Unavailable

24

. INNER TUBE COMP1

5MT-23110-00-00

Unavailable

25

PISTON, FRONT FORK

5EB-23171-00-00

$34.99

26

. CYLINDER COMP, FRONT FORK

5MT-23170-00-00

Unavailable

27

METAL, SLIDE 1

5EB-23125-00-00

$32.99

28

WASHER

4V4-23146-L0-00

$6.99

29

OIL SEAL

4PU-23145-01-00

$25.99

30

RING, SNAP

4V4-23153-L0-00

$9.99

31

SEAL, DUST

4PU-23144-00-00

$24.99

32

. SPINDLE, TAPER

5MT-23173-00-00

Unavailable

33

RUBBER

5MT-23195-00-00

Unavailable

34

GASKET

2K8-23158-L0-00

$15.49

35

BOLT, HEXAGON SOCKET HEAD

3LC-23181-00-00

$28.99

36

SPRING, FRONT FORK

5MT-23141-00-00

Unavailable

37

. WASHER, SPRING UPPER

3TJ-23149-10-00

Unavailable

38

WASHER, SPRING UPPER

3LR-23149-00-00

Unavailable

39

NUT

3LC-23357-00-00

Unavailable

40

SPACER

5MT-23118-00-00

Unavailable

41

. BOLT, CAP

5MT-23111-00-00

Unavailable

42

O-RING

4V4-23188-L1-00

Unavailable

43

BOLT, SOCKET

91314-08035-00

Unavailable

44

UNDER BRACKET COMP.

5MT-23340-00-00

Unavailable

45

BOLT,SOCKET

91314-08025-00

Unavailable

46

COVER

4PU-2331G-00-00

Unavailable

47

FORK SEAL KIT (TWO FORKS)

4PU-W003B-00-00

Unavailable
