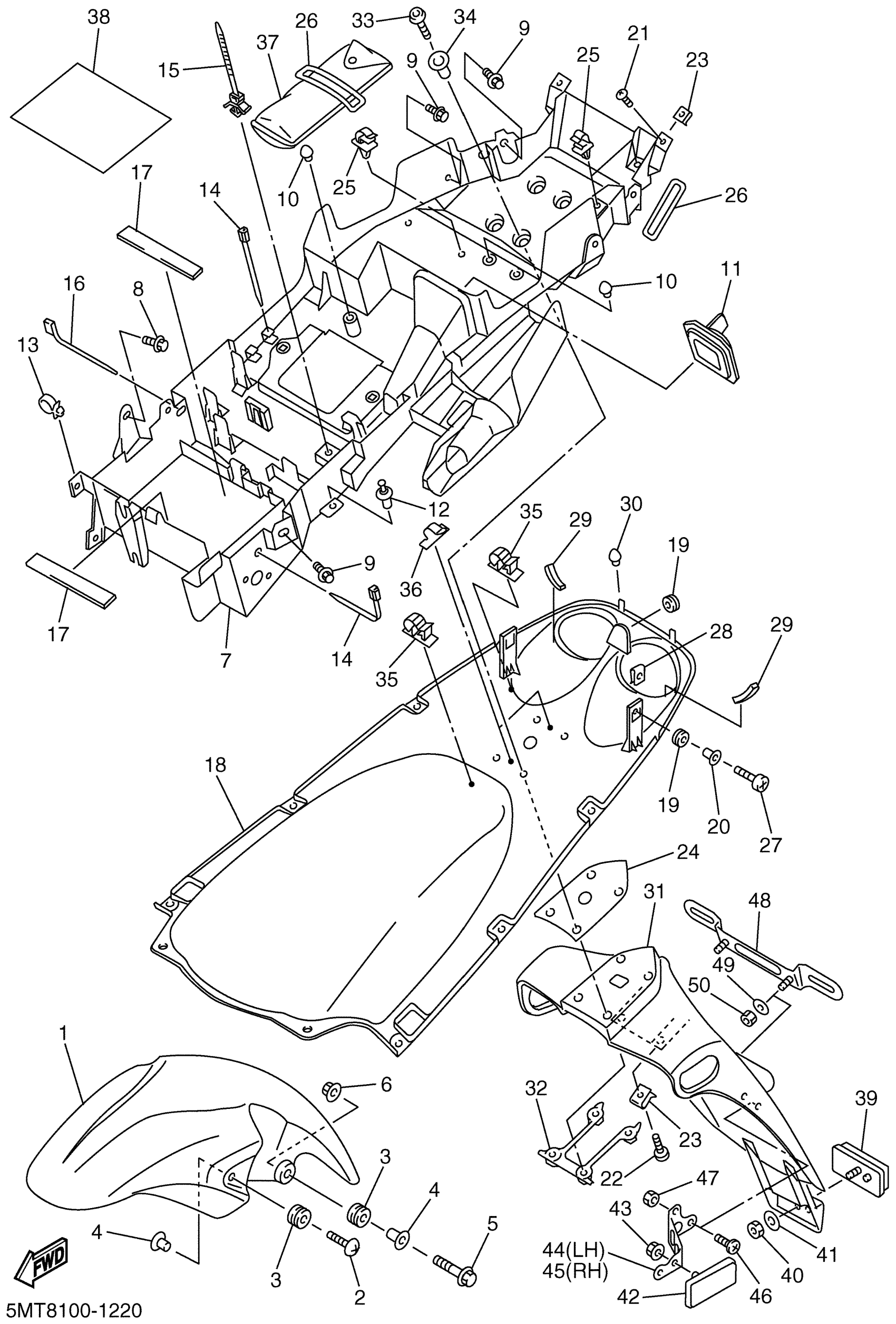

Yamaha YZFR6SNC (YZFR6 CHAMPIONS LIMITED EDITION CA) 5MT9 2001 FENDER Diagram

#

Description
Price

1

FENDER, FRONT (YAMAHA BLACK)

5EB-21511-00-33

Unavailable

2

SCREW, BINDING(3XV)

90154-06061-00

$8.49

3

GROMMET(53Y)

90480-12072-00

$8.49

4

COLLAR

90387-06159-00

$8.49

5

BOLT, FLANGE(4AS)

95024-06030-00

$8.49

6

NUT, FLANGE(4MV)

95707-06500-00

$1.23

7

BOX, BATTERY 1

5MT-8212B-00-00

Unavailable

8

BOLT, HEXAGON

97017-06020-00

$4.06

9

BOLT, WITH WASHER

97527-06512-00

$2.92

10

PLUG

90338-07018-00

$7.49

11

COVER, TAILLIGHT

5MT-2172X-00-00

Unavailable

12

RIVET(4PH)

90269-07077-00

$8.49

13

CLAMP(3SK)

90464-13133-00

$8.49

14

CLAMP(4FM)

90464-15195-00

$4.41

15

CLAMP(2TV)

90464-10112-00

$8.49

16

CLAMP

90464-13077-00

Unavailable

17

DAMPER (L.H)

1AE-2834E-00-00

Unavailable

18

FENDER, REAR (DEEP PURPLISH BLUE METALLIC C)

5MT-21611-00-P1

Unavailable

19

DAMPER

4XV-83513-00-00

Unavailable

20

COLLAR 437216330000

90387-07391-00

Unavailable

21

SCREW, BINDING(1UY)

90154-05041-00

Unavailable

22

SCREW, BINDING(1UY)

90154-05041-00

Unavailable

23

NUT, SPRING(3GM)

90183-05061-00

Unavailable

24

SEAL

5MT-21669-00-00

Unavailable

25

CLAMP

90464-07259-00

Unavailable

26

BAND, TOOL

4XV-21376-00-00

Unavailable

27

SCREW, BINDING

98907-05020-00

Unavailable

28

NUT, SPRING

90183-051A0-00

Unavailable

29

DAMPER

5MT-21717-00-00

Unavailable

30

PLUG

90338-07018-00

$7.49

31

GUARD, MUD

5MT-21629-10-00

Unavailable

32

BRACKET 6

5MT-2161G-00-00

Unavailable

33

BOLT, BUTTON

92017-06020-00

Unavailable

34

COLLAR 437216330000

90387-07391-00

Unavailable

35

CLAMP

90464-09009-00

Unavailable

36

CLAMP

90465-04013-00

Unavailable

37

TOOL KIT

5EB-28100-00-00

Unavailable

38

MAT 1

5EB-14733-00-00

Unavailable

39

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

40

NUT, U

95617-05100-00

Unavailable

41

WASHER, PLATE (8J0)

90201-05725-00

Unavailable

42

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

43

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

44

BRACKET, REAR STAY

5MT-21688-00-00

Unavailable

45

BRACKET, REAR STAY 2

5MT-21689-00-00

Unavailable

46

SCREW(3HE)

90149-04278-00

Unavailable

47

NUT, U (7LY)

95617-04100-00

Unavailable

48

BRACKET, LICENSE

5MT-84751-00-00

Unavailable

49

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

50

NUT, SELF-LOCKING

95617-06100-00

Unavailable
