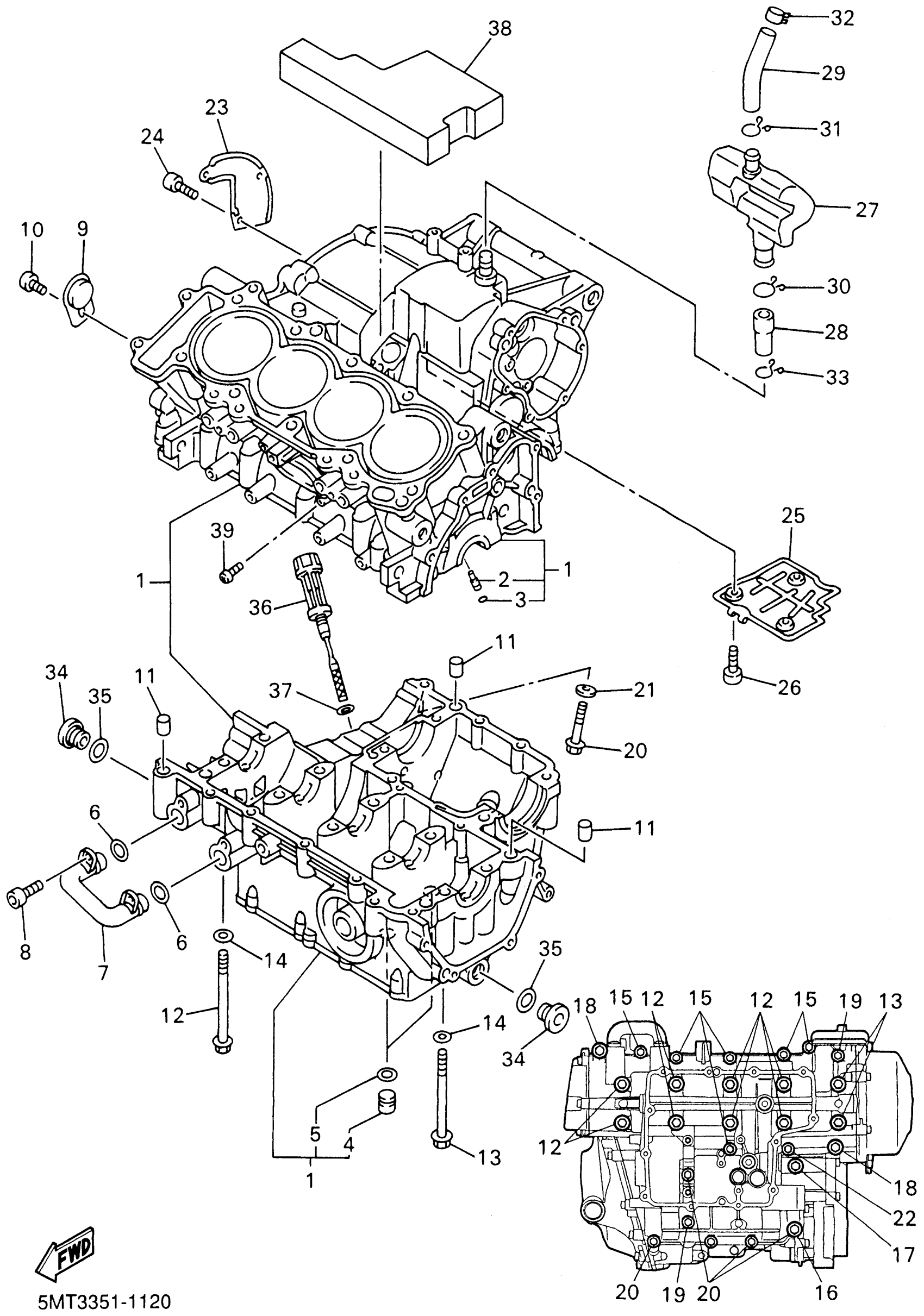

Yamaha YZFR6SNC (YZFR6 CHAMPIONS LIMITED EDITION CA) 5MT9 2001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

5MT-15100-01-00

Unavailable

2

NOZZLE 3

5EB-15155-00-00

$14.49

3

O-RING (210)

93210-04092-00

$3.76

4

PLUG

90338-16262-00

$14.99

5

O-RING(3LD)

93210-12790-00

$7.49

6

O-RING (26H)

93210-14579-00

$7.49

7

PIPE, OIL 2

13S-13418-00-00

$46.99

8

BOLT,SOCKET

91317-06016-00

$1.25

9

PLUG

5EB-15189-00-00

Unavailable

10

BOLT, BUTTON HEAD

92017-06014-00

$4.29

11

PIN, DOWEL(3VD)

99530-10114-00

$2.55

12

BOLT, WASHER BASED

90105-087A0-00

$5.60

13

BOLT, FLANGE

90105-086A9-00

Unavailable

14

WASHER, PLATE(1WG)

90201-087K3-00

$3.50

15

BOLT, FLANGE

95817-06055-00

$7.49

16

BOLT, WASHER BASED

90105-084A1-00

Unavailable

17

BOLT, FLANGE

95814-08065-00

Unavailable

18

BOLT

90109-065G3-00

Unavailable

19

BOLT, FLANGE

95817-06065-00

Unavailable

20

BOLT, FLANGE

95817-06045-00

Unavailable

21

GASKET 256113960000

90430-06014-00

Unavailable

22

BOLT, WASHER BASED

90105-06006-00

Unavailable

23

PLATE, BREATHER

5EB-11165-01-00

Unavailable

24

SCREW(1KT)

90149-06228-00

Unavailable

25

PLATE, BREATHER 2

5EB-11145-00-00

Unavailable

26

BOLT,SOCKET

91317-06012-00

Unavailable

27

BREATHER

5EB-15371-00-00

Unavailable

28

PIPE, BREATHER 2

5EB-15393-00-00

Unavailable

29

PIPE, BREATHER

5EB-15373-00-00

Unavailable

30

CLIP

90467-18196-00

Unavailable

31

CLIP(62Y)

90467-15M14-00

Unavailable

32

CLIP (4X7)

90467-15054-00

Unavailable

33

CLIP (371)

90467-14015-00

Unavailable

34

PLUG

36Y-15189-01-00

Unavailable

35

O-RING(1L9)

93210-16325-00

Unavailable

36

PLUG, OIL LEVEL

5EB-15362-10-00

Unavailable

37

O-RING (1J7)

93210-09350-00

Unavailable

38

DAMPER, ENGINE MOUNT 1

5EB-15316-00-00

Unavailable

39

SCREW, BINDING

98907-06012-00

Unavailable
