- YZFR6SNC (YZFR6 CHAMPIONS LIMITED EDITION CA) 5MT9 2001
COWLING 2

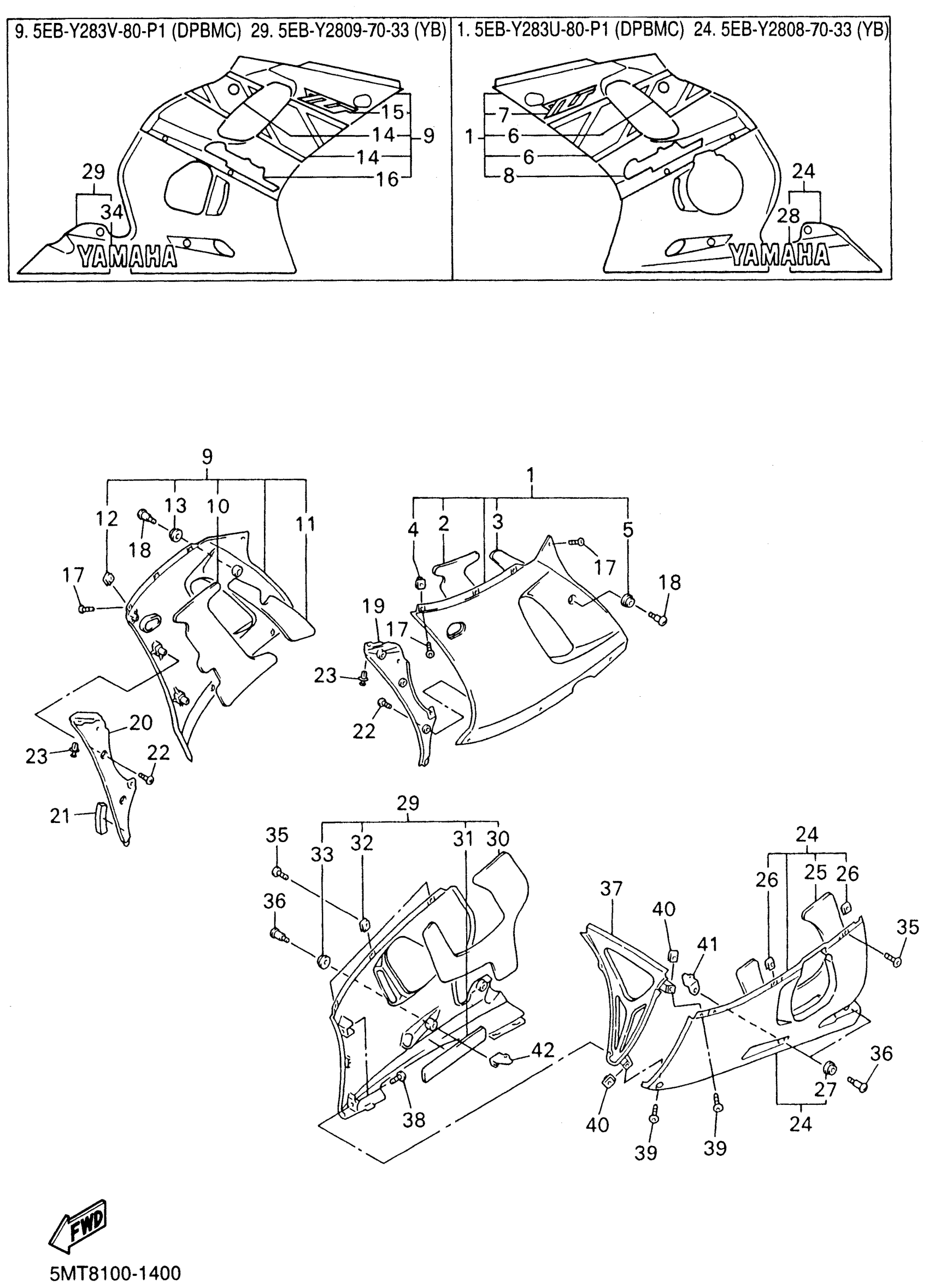

Yamaha YZFR6SNC (YZFR6 CHAMPIONS LIMITED EDITION CA) 5MT9 2001 COWLING 2 Diagram
#
1
PANEL ASSEMBLY 1 (DEEP PURPLISH BLUE METALLIC C)
5EB-Y283U-80-P1
Unavailable
2
. DAMPER 1
5EB-28415-00-00
Unavailable
3
. DAMPER 2
5EB-28416-00-00
Unavailable
6
. GRAPHIC SET, LOWER COVER 1
5MT-28301-30-00
Unavailable
7
. EMBLEM 1
4XV-2839H-70-00
Unavailable
8
. GRAPHIC 1
5MT-28391-00-00
Unavailable
9
PANEL ASSEMBLY 2 (DEEP PURPLISH BLUE METALLIC C)
5EB-Y283V-80-P1
Unavailable
10
. DAMPER 1
5EB-28415-10-00
Unavailable
11
. DAMPER 2
5EB-28416-10-00
Unavailable
14
. GRAPHIC SET, LOWER COVER 2
5MT-28303-30-00
Unavailable
15
. EMBLEM 1
4XV-2839H-70-00
Unavailable
16
GRAPHIC 2
5MT-28392-00-00
Unavailable
17
SCREW, ROUND HEAD(4HD)
90150-05039-00
Unavailable
18
SCREW, ROUND HEAD(4HD)
90150-06036-00
Unavailable
19
PANEL, INNER 1
5EB-2836K-00-00
Unavailable
20
PANEL, INNER 2
5EB-2836L-00-00
Unavailable
21
LINING, SHROUD 8
8U9-77268-00-00
Unavailable
22
SCREW, TAPPING(3BM)
97704-40012-00
Unavailable
23
RIVET(4JH)
90269-07076-00
Unavailable
24
COVER ASSY, UNDER
5EB-Y2808-70-33
Unavailable
25
. DAMPER
5EB-2834E-00-00
Unavailable
28
. EMBLEM, YAMAHA
4XV-2153E-00-00
Unavailable
29
COVER ASSY 2, UNDER
5EB-Y2809-70-33
Unavailable
30
. DAMPER
5EB-2834F-00-00
Unavailable
31
. SEAT 1
5EB-2838G-00-00
Unavailable
34
. EMBLEM, YAMAHA
4XV-2153E-00-00
Unavailable
35
SCREW, ROUND HEAD(4HD)
90150-05039-00
Unavailable
36
SCREW, ROUND HEAD(4HD)
90150-06036-00
Unavailable
37
PANEL, INNER 3
5EB-2836M-00-00
Unavailable
38
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
39
SCREW, ROUND HEAD(4HD)
90150-05039-00
Unavailable
41
BRACKET 1
5EB-2836A-00-00
Unavailable
42
BRACKET 2
5EB-2836E-00-00
Unavailable
