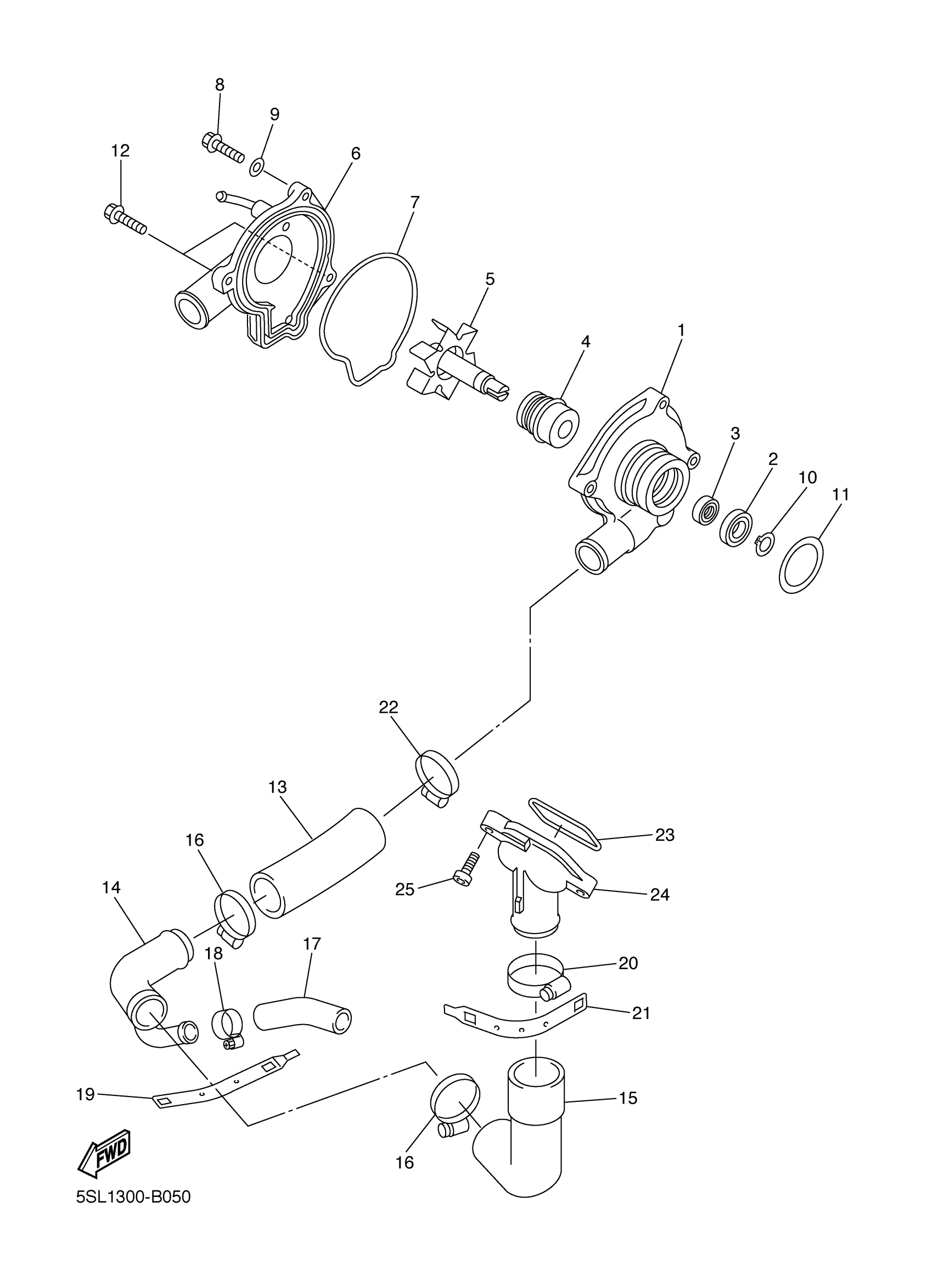

Yamaha YZFR6SC (YZFR6 CA) 5SLE 2004 WATER PUMP Diagram

HOUSING, WATER PUMP

5VX-12421-00-00

Unavailable

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$30.99

OIL SEAL

93101-12173-00

$13.49

SEAL, MECHANICAL

11H-12438-10-00

$62.99

IMPELLER SHAFT ASSY

5EB-12450-00-00

$67.99

COVER, HOUSING

5SL-12422-00-00

$101.99

O-RING

5EB-12439-00-00

$17.49

BOLT, FLANGE(3DM)

95024-06020-00

$5.60

GASKET 256113960000

90430-06014-00

Unavailable

CIRCLIP(10Y)

99009-12400-00

$3.59

O-RING (626)

93210-33133-00

$2.92

BOLT,SOCKET

91317-06040-00

$3.76

HOSE 4 (L105.6)

4NK-12579-00-00

Unavailable

JOINT, HOSE 1

20S-12581-01-00

$63.99

HOSE 2

5EB-12577-01-00

Unavailable

HOSE CLAMP ASSY

90450-35001-00

Unavailable

HOSE 5

5SL-12588-01-00

Unavailable

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

COVER 2

5GV-1246E-00-00

Unavailable

HOSE CLAMP ASSY(3GM)

90450-38040-00

Unavailable

COVER 1

5GV-1246A-00-00

Unavailable

HOSE CLAMP ASSY

90450-32003-00

Unavailable

O-RING(52H)

93210-47675-00

Unavailable

JOINT 1

5EB-12469-00-00

Unavailable

BOLT, FLANGE(3DM)

95024-06020-00

$5.60
