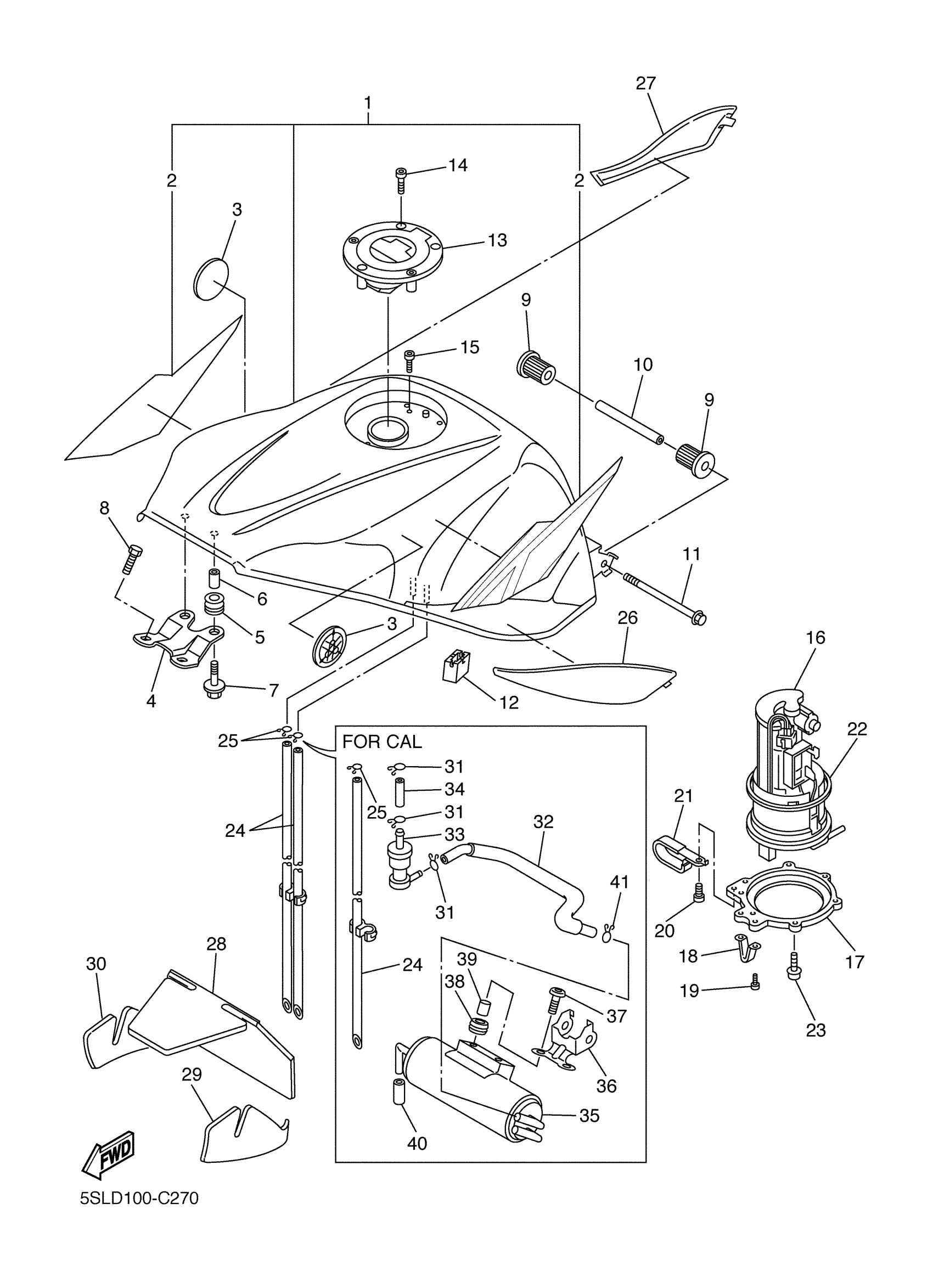

Yamaha YZFR6SC (YZFR6 CA) 5SLE 2004 FUEL TANK Diagram
#
1
FUEL TANK COMP. (VIVID RED COCKTAIL 1)
5SL-Y2410-30-04
Unavailable
1
FUEL TANK COMP. (DEEP PURPLISH BLUE METALLIC C)
5SL-Y2410-30-05
Unavailable
2
. GRAPHIC SET (VIVID RED COCKTAIL 1)
5SL-24240-40-00
Unavailable
2
. GRAPHIC SET (DEEP PURPLISH BLUE METALLIC C)
5SL-24240-50-00
Unavailable
4
BRACKET, FUEL TANK 1
5SL-24191-00-00
Unavailable
9
DAMPER, LOCATING 3
5SL-24183-00-00
Unavailable
10
COLLAR
90387-06055-00
Unavailable
12
DAMPER, LOCATING 2
5SL-24182-00-00
Unavailable
14
BOLT, HEXAGON SOCKET HEAD(1FM)
90110-05112-00
Unavailable
15
BOLT, SOCKET
91317-05010-00
Unavailable
16
FUEL PUMP COMP.
5PW-13907-05-00
Unavailable
17
BRACKET, FUEL PUMP
5SL-24491-10-00
Unavailable
18
BRACKET, FUEL TANK 2
5PW-24192-00-00
Unavailable
19
SCREW, BINDING
98907-05008-00
Unavailable
20
SCREW, BINDING
98907-05008-00
Unavailable
21
CLAMP
90461-10009-00
Unavailable
22
O-RING
19B-24486-01-00
Unavailable
23
BOLT, HEXAGON SOCKET HEAD
90110-05014-00
Unavailable
24
HOSE ASSY 1
5SL-22906-00-00
Unavailable
24
HOSE ASSY 2
5SL-22907-00-00
Unavailable
25
CLIP
90467-100A1-00
Unavailable
26
COVER, SIDE 1
5SL-24129-00-00
Unavailable
27
COVER, SIDE 2
5SL-24139-00-00
Unavailable
28
DAMPER, PLATE 1
5SL-2414H-00-00
Unavailable
29
DAMPER, PLATE 2
5SL-2414J-00-00
Unavailable
30
DAMPER, PLATE 3
5SL-2414K-00-00
Unavailable
31
CLIP
90467-100A1-00
Unavailable
32
PIPE 4
5SL-24314-01-00
Unavailable
33
ROLL OVER VALVE ASSY
5RB-24180-00-00
Unavailable
34
HOSE (L120)
90445-113E8-00
Unavailable
35
CANISTER ASSY
5SL-24170-00-00
Unavailable
36
BRACKET, CANISTOR
5SL-2419F-00-00
Unavailable
37
BOLT, HEXAGON SOCKET HEAD(3HE)
90110-06200-00
Unavailable
38
GROMMET (462)
90480-13018-00
Unavailable
39
COLLAR(42G)
90387-062L2-00
Unavailable
40
HOSE (L70)
90445-112E0-00
Unavailable
41
CLIP
90467-100A1-00
Unavailable
