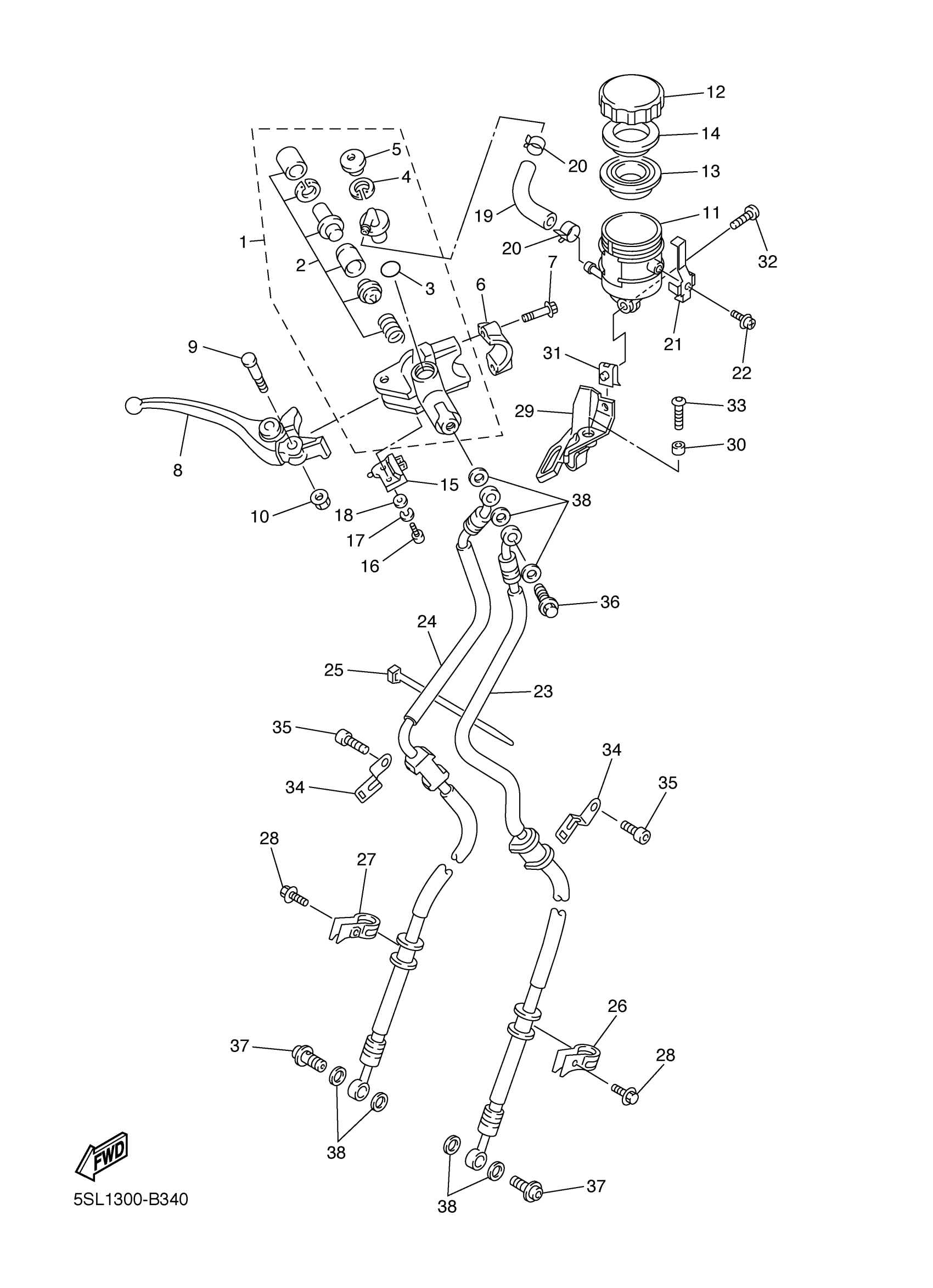

Yamaha YZFR6SC (YZFR6 CA) 5SLE 2004 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY

5EB-W2587-01-00

Unavailable

2

CYLINDER KIT, MASTER

5MT-W0041-00-00

$62.99

3

O-RING (22U)

93210-15566-00

$7.49

4

CIRCLIP

2VN-25866-00-00

$6.99

5

COVER, DUST

3FV-2589A-00-00

$20.99

6

BRACKET, MASTER CYLINDER

56A-25867-00-00

$28.99

7

BOLT

5EB-26332-00-00

$7.99

8

LEVER 2

5SL-83922-00-00

Unavailable

9

BOLT, LEVER

3FV-2589F-00-00

$16.49

10

NUT, SELF-LOCKING

95617-06100-00

$8.49

11

TANK, RESERVOIR

5SL-25894-10-00

Unavailable

12

CAP, RESERVOIR

3GM-25852-50-00

$29.99

13

DIAPHRAGM, RESERVOIR

3FV-25854-00-00

$27.99

14

BUSHING, DIAPHRAGM

2J2-25855-50-00

$5.49

15

FRONT STOP SWITCH ASSY

4HM-83980-00-00

$41.99

16

SCREW, PAN HEAD

98511-04012-00

Unavailable

17

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

18

WASHER, PLAIN (646)

92990-04600-00

Unavailable

19

HOSE

5PW-2582F-00-00

Unavailable

20

CLIP, PIPE 1

3PA-24356-00-00

Unavailable

21

HOLDER

3FV-2589G-00-00

Unavailable

22

SCREW, WITH WASHER

3GM-2589H-00-00

Unavailable

23

HOSE, BRAKE 1

5SL-25872-00-00

Unavailable

24

HOSE, BRAKE 2

5SL-25873-00-00

Unavailable

25

BAND

3MA-82591-00-00

Unavailable

26

HOLDER, BRAKE HOSE

5SL-25886-00-00

Unavailable

27

HOLDER, BRAKE HOSE

5SL-25887-00-00

Unavailable

28

BOLT, FLANGE

90105-06041-00

Unavailable

29

STAY

5SL-26292-01-00

Unavailable

30

COLLAR

90387-06057-00

Unavailable

31

NUT, SPRING

90183-050A0-00

Unavailable

32

BOLT,HEX. SOCKET BUTTON

90111-05026-00

Unavailable

33

BOLT

90111-06041-00

Unavailable

34

HOLDER, BRAKE HOSE 2

5SL-25876-00-00

Unavailable

35

BOLT,SOCKET

91317-06012-00

Unavailable

36

BOLT, UNION

90401-10038-00

Unavailable

37

BOLT, UNION

90401-10172-00

Unavailable

38

WASHER, PLATE(481)

90201-10118-00

Unavailable
