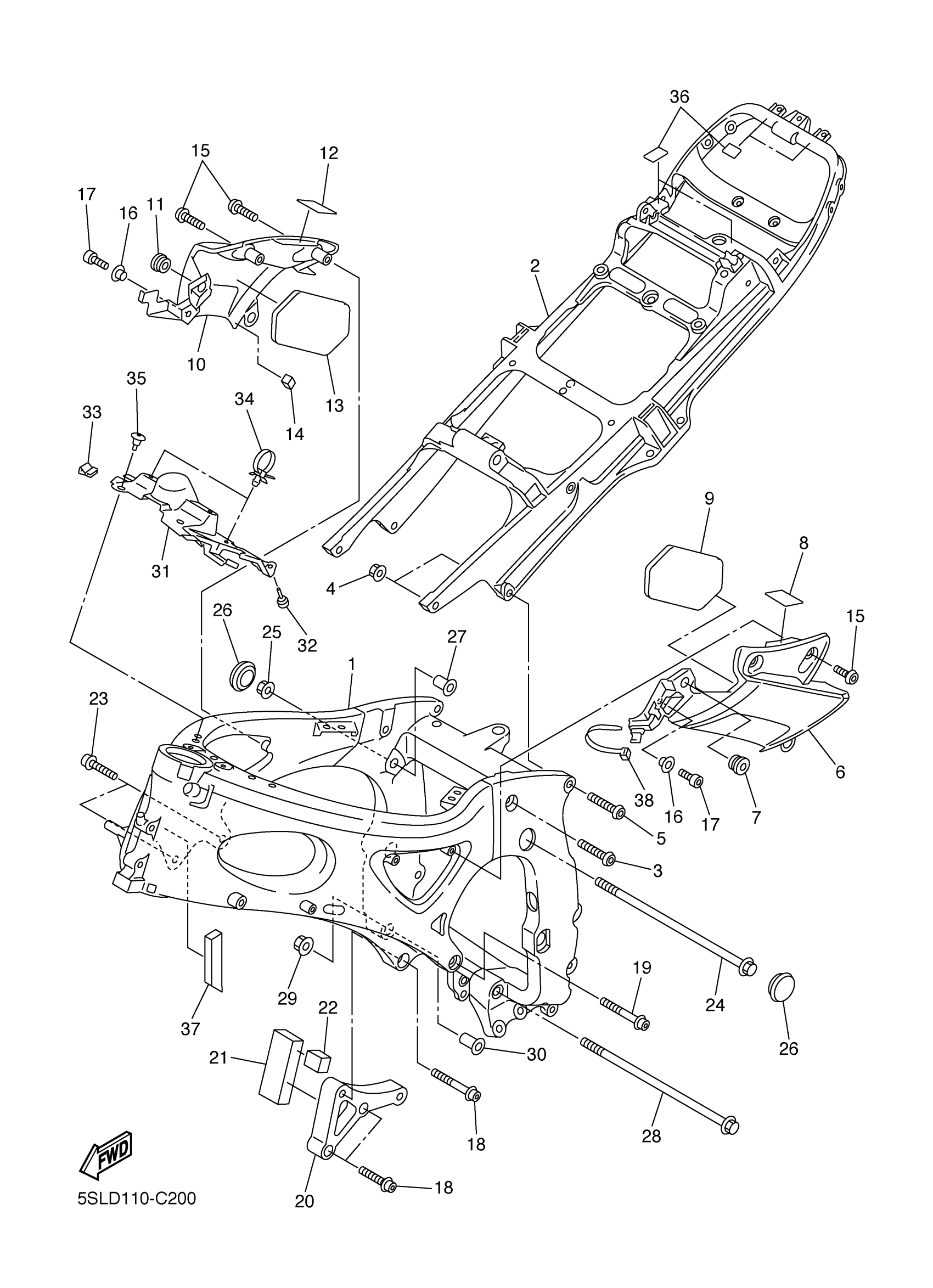

Yamaha YZFR6SC (YZFR6 CA) 5SLE 2004 FRAME Diagram
#
1
FRAME COMP.
5SL-21110-01-00
Unavailable
2
REAR FRAME COMP.
5SL-21190-00-00
Unavailable
5
SCREW
90149-10006-00
Unavailable
10
COVER 8
5SL-2117W-00-00
Unavailable
14
DAMPER
5SL-21649-00-00
Unavailable
16
COLLAR(JF2)
90387-050X4-00
Unavailable
17
BOLT, SOCKET
91317-05012-00
Unavailable
18
BOLT, HEXAGON SOCKET HEAD
90110-10008-00
Unavailable
19
BOLT, HEXAGON SOCKET HEAD
90110-10007-00
Unavailable
20
SUPPORT, ENGINE
5SL-21283-00-00
Unavailable
21
DAMPER
5SL-21488-00-00
Unavailable
22
DAMPER 2
5SL-21486-00-00
Unavailable
23
BOLT, HEXAGON SOCKET HEAD
90110-10008-00
Unavailable
24
BOLT
90105-10042-00
Unavailable
25
NUT
90179-10696-00
Unavailable
26
PLUG
90338-27007-00
Unavailable
27
BOLT, ENGINE ADJUSTING
4C8-21495-00-00
Unavailable
28
BOLT, WASHER BASED
90105-106A2-00
Unavailable
29
NUT
90179-10696-00
Unavailable
30
BOLT, ENGINE ADJUSTING
4C8-21495-00-00
Unavailable
31
COVER 2
5SL-2117M-00-00
Unavailable
32
DAMPER 2
36Y-21639-00-00
Unavailable
33
SEAL SET, 1
5SL-21208-00-00
Unavailable
34
CLAMP(2TV)
90464-10112-00
Unavailable
35
RIVET
90269-07007-00
Unavailable
36
SEAL
5SL-21268-00-00
Unavailable
37
DAMPER
5SL-2139X-00-00
Unavailable
38
CLAMP(4FM)
90464-15195-00
Unavailable
