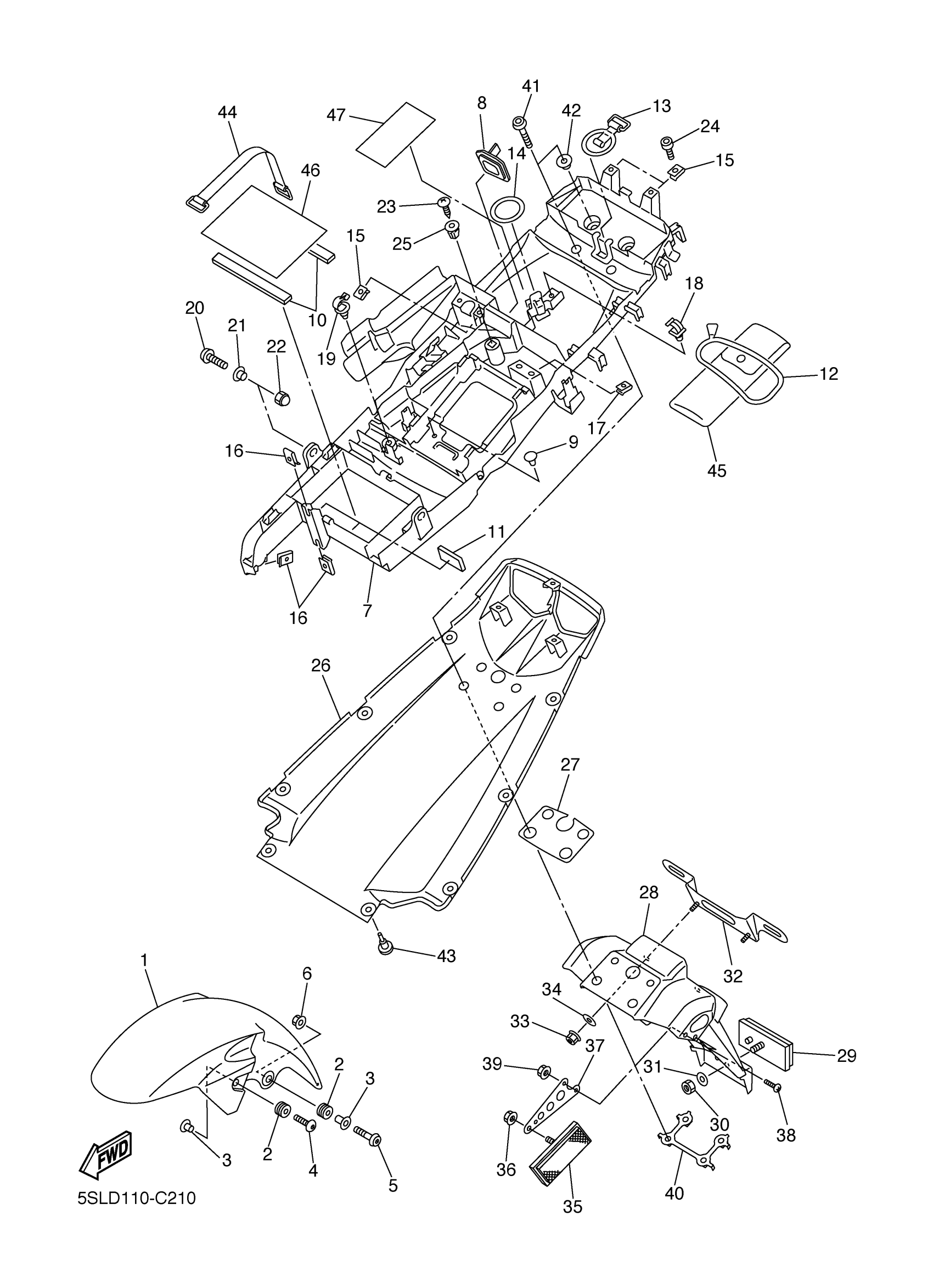

Yamaha YZFR6SC (YZFR6 CA) 5SLE 2004 FENDER Diagram
#
1
FENDER, FRONT (DEEP PURPLISH BLUE METALLIC C)
5SL-21511-00-P1
Unavailable
1
FENDER, FRONT (VIVID RED COCKTAIL 1) (BLACK METALLIC X)
5SL-21511-00-P4
Unavailable
5
BOLT, BUTTON
92014-06025-00
Unavailable
7
BOX, BATTERY 1
5SL-8212B-01-00
Unavailable
8
COVER, TAILLIGHT
5MT-2172X-00-00
Unavailable
12
BAND, TOOL
3YX-21376-00-00
Unavailable
14
BAND
5SL-21647-00-00
Unavailable
15
NUT, SPRING
90183-050A6-00
Unavailable
16
NUT, SPRING(4ES)
90183-06069-00
Unavailable
17
NUT, SPRING(47R)
90183-04039-00
Unavailable
18
CLAMP
90464-07259-00
Unavailable
19
CLAMP
90464-13249-00
Unavailable
20
BOLT, BUTTON HEAD
92017-06016-00
Unavailable
21
COLLAR
90387-06106-00
Unavailable
22
NUT, CROWN(1FN)
90176-06055-00
Unavailable
23
SCREW, TAPPING
97707-60020-00
Unavailable
24
BOLT, SOCKET
91317-05012-00
Unavailable
25
PLUG(4BP)
90338-08226-00
Unavailable
26
FENDER, REAR
5SL-21611-00-P1
Unavailable
26
FENDER, REAR
5SL-21611-00-P4
Unavailable
27
SEAL
5SL-21669-00-00
Unavailable
28
GUARD, MUD
5SL-21629-11-00
Unavailable
29
REAR REFLECTOR ASSY
3Y6-85130-02-00
Unavailable
30
NUT, U
95617-05100-00
Unavailable
31
WASHER, PLATE (8J0)
90201-05725-00
Unavailable
32
BRACKET, LICENSE
5MT-84751-00-00
Unavailable
33
NUT, SELF-LOCKING
95617-06100-00
Unavailable
34
WASHER, PLATE 8221447500
90201-06057-00
Unavailable
35
REAR REFLECTOR ASSY
3Y6-85130-02-00
Unavailable
36
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
37
BRACKET, REAR STAY
5PW-21688-00-00
Unavailable
38
SCREW, ROUND HEAD(4KM)
90150-04041-00
Unavailable
39
NUT, U (7LY)
95617-04100-00
Unavailable
40
BRACKET 6
5PW-2161G-00-00
Unavailable
41
BOLT, BUTTON
92017-06020-00
Unavailable
42
COLLAR 437216330000
90387-07391-00
Unavailable
43
RIVET(4PH)
90269-07077-00
Unavailable
44
BAND, BATTERY
5JJ-82131-00-00
Unavailable
45
TOOL KIT
5SL-28100-00-00
Unavailable
46
MAT 1
5EB-14733-00-00
Unavailable
47
PLATE, EPA 2 (CALIFORNIA)
5SL-2179R-10-00
Unavailable
47
PLATE, EPA 1 (NON CALIFORNIA)
5SL-2179V-10-00
Unavailable
