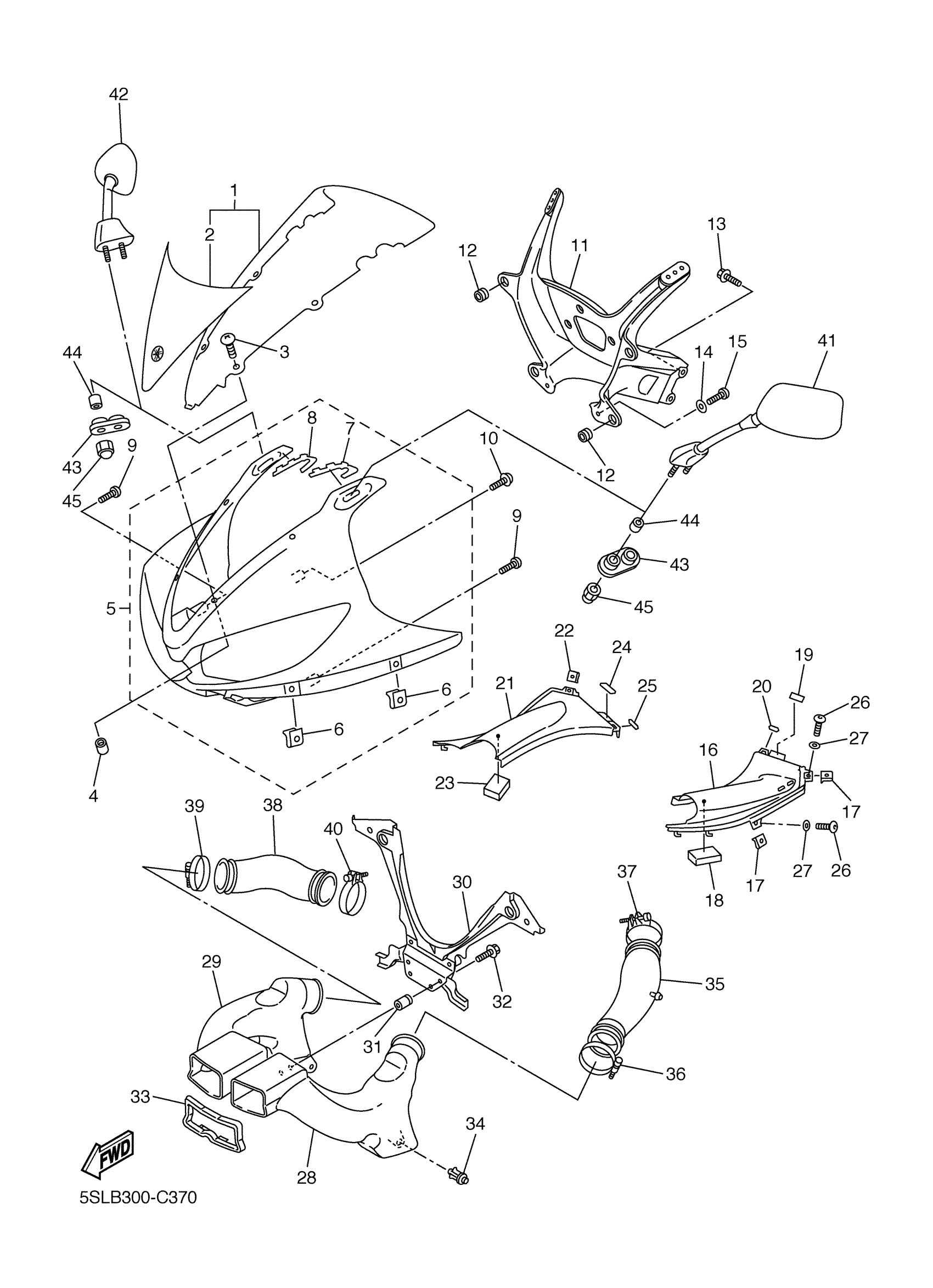

Yamaha YZFR6SC (YZFR6 CA) 5SLE 2004 COWLING 1 Diagram

#

Description
Price

1

WINDSHIELD

5SL-Y2881-11-00

Unavailable

2

. GRAPHIC 18

5SL-2832P-00-00

Unavailable

3

SCREW, ROUND HEAD(1UX)

90150-05024-00

$5.60

4

NUT(1KT)

90179-05523-00

$8.49

5

UPPER COWLING ASSY 1

5SL-28330-02-P0

Unavailable

5

UPPER COWLING ASSY

5SL-28330-01-P1

Unavailable

6

NUT, SPRING

90183-051A0-00

$3.81

7

. SEAL 1

5SL-28428-00-00

Unavailable

8

. SEAL 2

5SL-28429-00-00

Unavailable

9

SCREW, TAPPING(4MV)

97707-50016-00

$2.19

10

SCREW, ROUND TAPPING

90160-05007-00

$8.49

11

STAY 1

5SL-28356-00-00

$530.99

12

DAMPER

4XV-83513-00-00

$7.99

13

BOLT, FLANGE

90105-08052-00

$8.49

14

. WASHER, PLATE

90202-05088-00

Unavailable

15

SCREW, TAPPING(4TV)

90167-05078-00

Unavailable

16

PANEL, CONSOLE 1

5SL-2837L-01-00

Unavailable

17

NUT, SPRING(3GM)

90183-05061-00

Unavailable

18

DAMPER

4XY-21649-00-00

Unavailable

19

DAMPER 2

1HX-28227-00-00

Unavailable

20

DAMPER 2

5SL-28416-00-00

Unavailable

21

PANEL, CONSOLE 2

5SL-2837M-01-00

Unavailable

22

NUT, SPRING(3GM)

90183-05061-00

Unavailable

23

DAMPER

4XY-21649-00-00

Unavailable

24

DAMPER 2

1HX-28227-00-00

Unavailable

25

DAMPER 2

5SL-28416-00-00

Unavailable

26

BOLT

90111-05003-00

Unavailable

27

WASHER, PLATE(1KT)

90202-05180-00

Unavailable

28

DUCT 2

5SL-2838R-00-00

Unavailable

29

DUCT 3

5SL-2838T-00-00

Unavailable

30

COVER, HEADLIGHT

5SL-2838E-00-00

Unavailable

31

NUT(1KT)

90179-05523-00

$8.49

32

BOLT, HEXAGON WITH WASHER(353)

90119-05001-00

Unavailable

33

DAMPER

5SL-28371-00-00

Unavailable

34

RIVET

90269-06008-00

Unavailable

35

JOINT, SURGE TANK 1

5EB-1446F-00-00

Unavailable

36

HOSE CLAMP ASSY

90450-64004-00

Unavailable

37

HOSE CLAMP ASSY

90450-62006-00

Unavailable

38

JOINT, SURGE TANK 1

5EB-1446F-00-00

Unavailable

39

HOSE CLAMP ASSY

90450-64004-00

Unavailable

40

HOSE CLAMP ASSY

90450-62006-00

Unavailable

41

REAR VIEW MIRROR ASSY (LEFT)

5SL-26280-00-00

Unavailable

42

REAR VIEW MIRROR ASSY (RIGHT)

5SL-26290-00-00

Unavailable

43

PLATE, MIRROR FITTING 1

5SL-26298-00-00

Unavailable

44

COLLAR

90387-06057-00

Unavailable

45

NUT, CROWN

90176-06008-00

Unavailable
